Do you need a battery disconnect switch for a hard-to-reach area of a vehicle or piece of equipment?

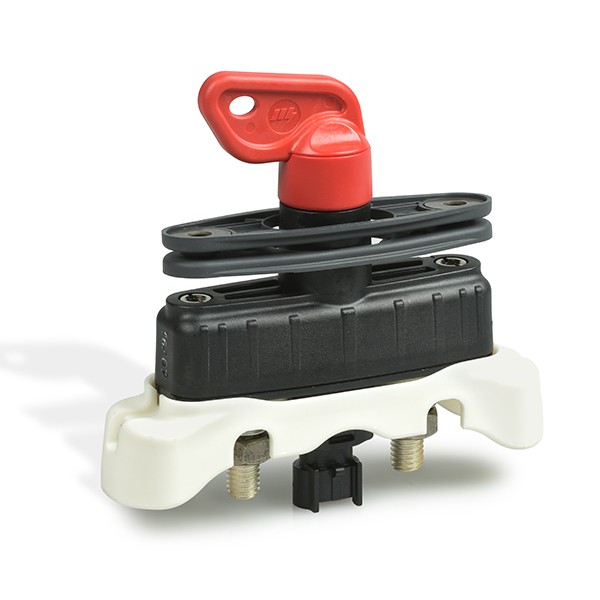

The 08080570 Series 28V Single-Pole (SPST) Water-Resistant Manual Battery Disconnect Switch
with Slim Design features a narrow, elongated shape that is ideal for areas with limited space.
Designed for 12V and 24V electrical systems, the 08080570 Series manually operated switch is made
for disconnecting the battery from the vehicle electrical system, even under load, and stopping power from the alternator.
The single-pole manual disconnect switch is available with standard contacts or with supplementary
contacts that can be used for various purposes, such as activating a warning
ight or grounding the alternator.
Features and Benefits
- Continuous current rating of 100 amperes or 10 milliamperes, depending on the model
- Elongated, narrow design allows mounting in hard-to-reach areas and places with limited space
- Dust-tight and water-resistant to IP65 standards
- High-quality thermoplastic material offers resistance to chemicals and environmental elements
- Red lever actuator is easy to see and operate
- Available with standard contacts or with supplementary contacts that can be used for various purposes,
- such as activating a warning light or grounding the alternator
Applications
- Heavy Trucks
- Emergency Vehicles
- Boats and Marine Equipment
- Tractors and Agricultural Equipment
| Catalog # | Voltage | Continuous current | Inrush current | Ingress Protection | Terminal Material | Terminal hardware | Recommended stud torque | Auxiliary Contacts | Compare |
|---|
 |  | | | | | | | | |
| 08080570 | 12V
24V | 200 | 1500A x 5 sec | IP65 | Silver-Plated Copper | M10 Brass | 18 Nm | 5A | |
| 08080670 | 12V
24V | 200 | 1500A x 5 sec | IP65 | Silver-Plated Copper | M10 Brass | 18 Nm | |
