데이타시트 #1 : 1699321167_3362_datasheet.pdf

L50S Series 요약정보 및 구매

[Traditional High-Speed_10-800A_500Vac/450Vdc_Littelfuse]

위시리스트0

추천하기

판매가격	온라인 견적문의 \| 실시간 견적문의 하기
제조사	Littelfuse
브랜드	Littelfuse
모델	L50S Series
배송비결제	주문시 결제

위시리스트

견적문의

궁금한 점은 언제든 문의주시면 친절히 상담해 드리겠습니다.
전화문의 : 031-267-4793
이메일 : pa@paparts.co.kr

상품 정보

상품 상세설명

Amps (A): 10, 12, 15, 20, 25, 30, 35, 40, 50, 60, 70, 80, 90, 100, 125, 150, 175, 200, 225, 250 more
VAC (V): 500
VDC (V): 450

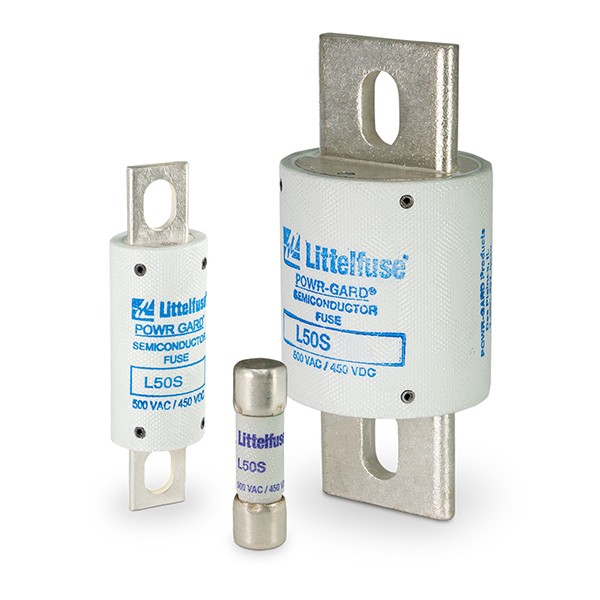

The L50S series is a POWR-SPEED® high-speed fuse designed for modern-day, sensitive power electronic devices that require ultimate protection against overcurrent. POWR-SPEED® brand fuses are optimized for performance and efficiency to help extend equipment life. They offer Littelfuse-developed technology that sets tomorrow’s standards for accuracy, consistent quality, reliability, and predictable performance. Littelfuse engineers have redefined high-speed fuse technology by using advanced metallurgical, polymer, and materials research, mathematical modeling, and computerized statistical analysis.

The L50S is very fast-acting with voltage rating at 500 V ac and 450 V dc. It is specifically designed for supplementary protection of semiconducting devices such as silicon controlled rectifiers (SCRs), diodes, thyristors, triacs, transistors, and similar solid-state devices. These devices are used in power equipment including variable speed drives, power rectifiers, UPS systems, dc power supplies, and in a wide range of electronic equipment. They may be used wherever extremely fast-acting, current-limiting fuses with no time delay are required.

Features

Extremely current-limiting

Low watt losses

POWR-SPEED® technology

Low energy let-through (I2t)

Controlled transient overvoltages

Catalog #Amps (A)VAC (V)VDC (V)Interrupting RatingOpeningStockSamplesCompare L50S0101050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S0121250045020000A@450VDCVery Fast-Acting (FF)Check Order L50S0151550045020000A@450VDCVery Fast-Acting (FF)Check Order L50S0202050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S0252550045020000A@450VDCVery Fast-Acting (FF)Check Order L50S0303050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S0353550045020000A@450VDCVery Fast-Acting (FF)Check Order L50S0404050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S0505050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S0606050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S0707050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S0808050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S0909050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S10010050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S12512550045020000A@450VDCVery Fast-Acting (FF)Check Order L50S15015050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S17517550045020000A@450VDCVery Fast-Acting (FF)Check Order L50S20020050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S22522550045020000A@450VDCVery Fast-Acting (FF)Check Order L50S25025050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S27527550045020000A@450VDCVery Fast-Acting (FF)Check Order L50S30030050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S350350500450200000A@500VACVery Fast-Acting (FF)Check Order L50S40040050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S45045050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S50050050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S55055050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S60060050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S70070050045020000A@450VDCVery Fast-Acting (FF)Check Order L50S80080050045020000A@450VDCVery Fast-Acting (FF)Check Order
