L600M Series > 기타휴즈홀더

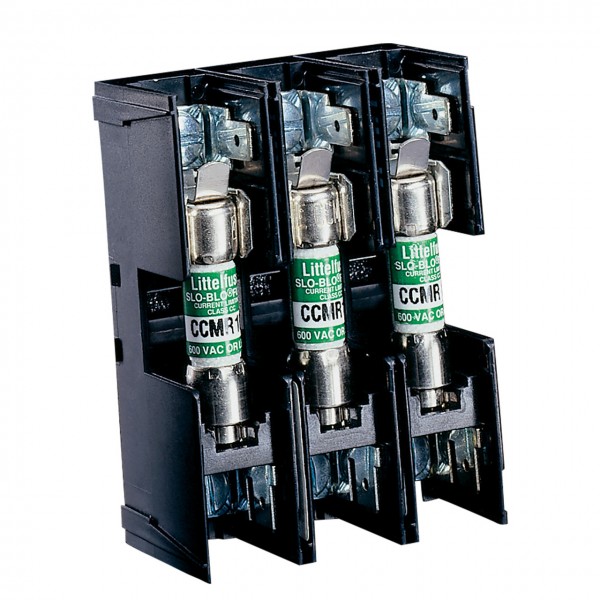

• High-strength materials — Midget fuse blocks are molded of high-strength, high
•  temperature material to minimize block breakage during handling and installation,
• as well as damage due to heat.
•

• Reduced resistance, less heat — High conductivity, one-piece copper alloy fuse clips
•  have lower resistance than traditional two-piece brass or phosphor bronze fuse clips
•  minimizes heat rise and watts loss within the fuse block.
•


Reduced Inventory:

• Gangable — Interlocking fuse blocks allow ganging to produce
• a fuse block with any number of poles.
•

• Flexible terminal arrangements — Midget fuse blocks are available with type C box lug,
•  type SQ screw, or type PQ pressure plate terminals. Type SQ terminals have binding-
• head screws, while type PQ terminals have captive pressure plates.
•

• Both terminal types can accommodate side- or top- mounted quick-connect terminals.
•  This flexibility allows the accommodation of most needs and reduces part inventory
•  requirements.

• DIN rail mountable — FBDIN1 adapters permit snap-mounting Littelfuse Midget fuse
•  blocks directly to standard or low profile 35mm symmetrical “hat” and 32mm
•  asymmetrical DIN rails. Patented DIN rail adapters snap securely to Littelfuse fuse
•  blocks and to DIN rails without tools. They can be readily removed from rails by lifting
•  the disconnect tab.

Catalog #	Fuse Type	Indicating	Stock	Samples	Compare
L60030M-1C	Midget	No	Check	Order
L60030M-1PQ	Midget	No	Check	Order
L60030M-1SQ	Midget	No	Check	Order
L60030M-2C	Midget	No	Check	Order
L60030M-2PQ	Midget	No	Check	Order
L60030M-2SQ	Midget	No	Check	Order
L60030M-3C	Midget	No	Check	Order
L60030M-3PQ	Midget	No	Check	Order
L60030M-3SQ	Midget	No	Check	Order
