02981028 MEGA® Flex Series > 자동차용퓨즈

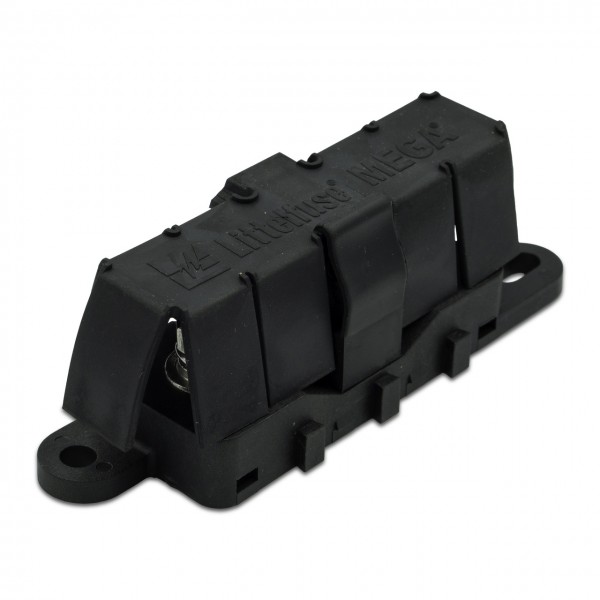

The MEGA® Flex Series 70 V Bolt-Down Fuse Holder makes it simple to install high-amp fusing thanks to its flexible cover. The UL 94 V-0 rated cover features 6 different positions for cable entry, plus its flexibility accommodates large wire sizes and ring terminal stack up.

Designed for MEGA® fuses up to 500 amps, this bolt-down fuse holder also has a dovetail feature on the sides that allows you to connect multiple MEGA® Flex Series fuse holders to create a fused high-power distribution block (bus bars for multi-fuse applications are available; sold separately). MEGA® Flex Series fuse holders can also be paired with MIDI® Flex Series fuse holders (sold separately) for a high- and low-amp solution.

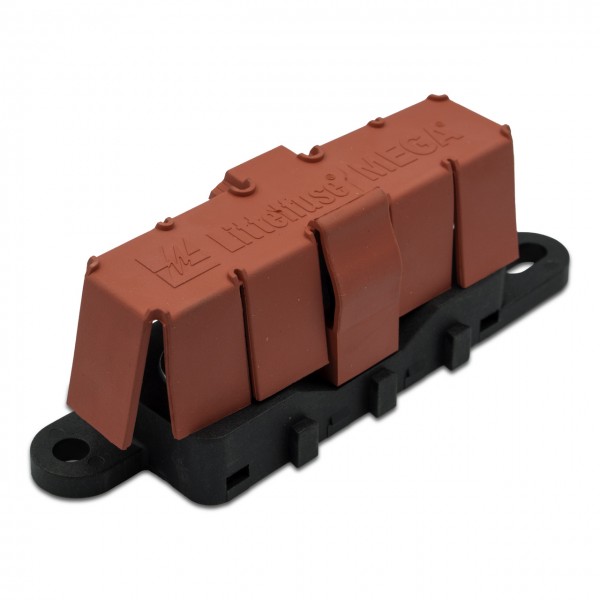

The MEGA® Flex Series fuse holder is available in configurations with black or red covers as well as stainless steel or zinc-plated M8 studs and hardware.

Features and Benefits

• Compatible with MEGA® high-current bolt-down fuses up to 500 amps (sold separately unless indicated)

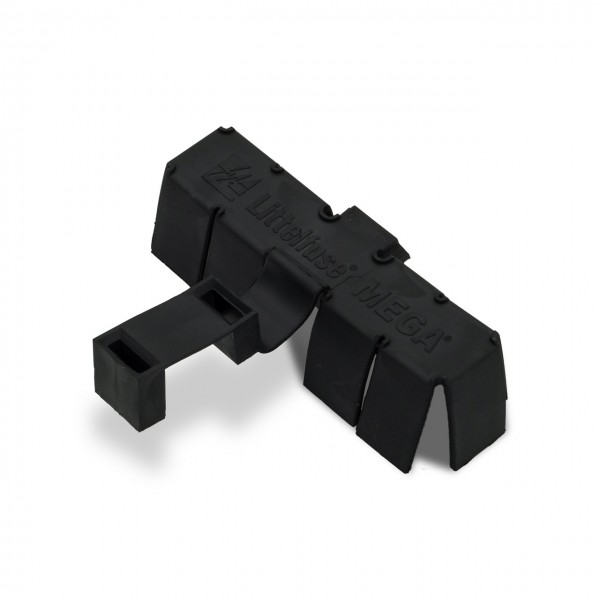

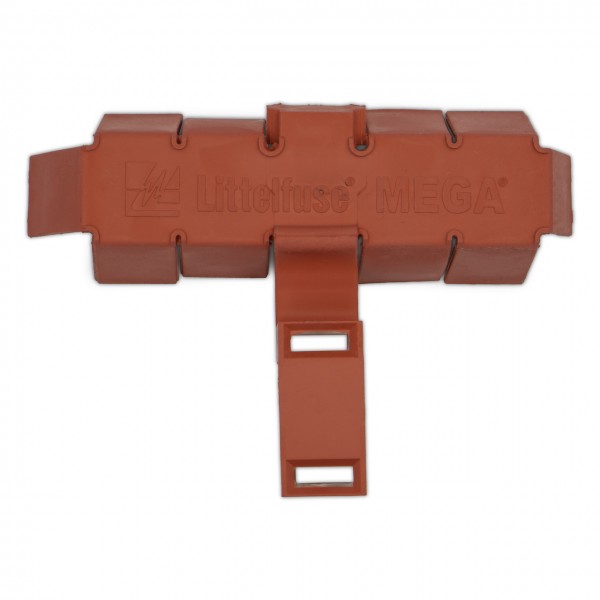

• Black or red flexible cover allows cable entry at 6 different locations, simplifying installation and accommodating large wire sizes and ring terminal stack up

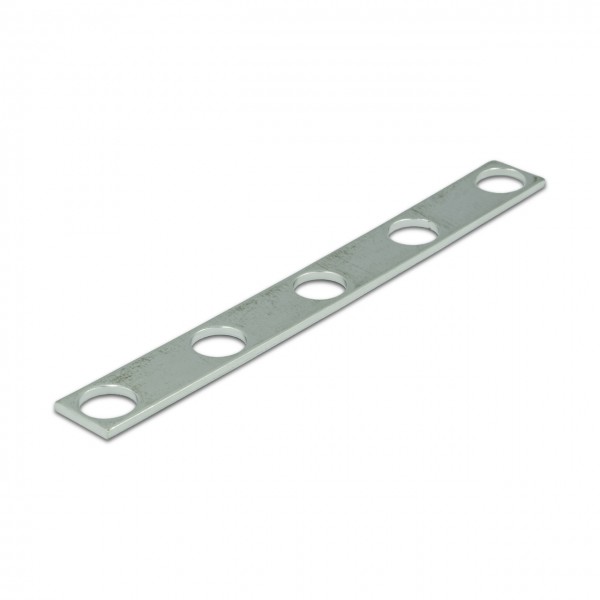

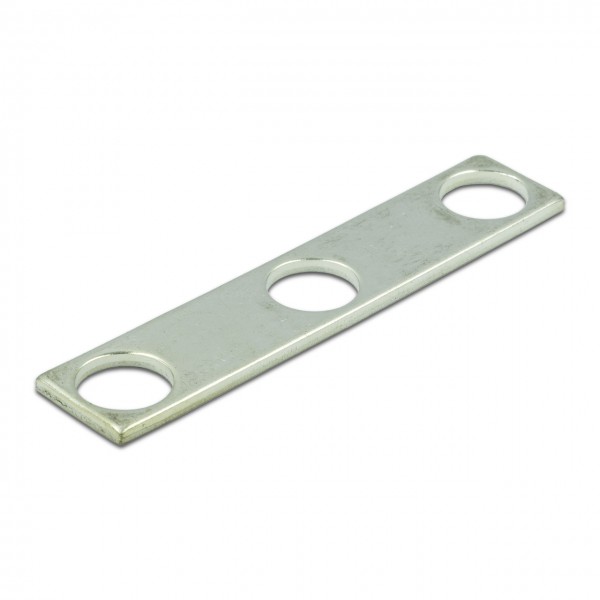

• Dovetail feature lets you connect multiple MEGA® Flex Series fuse holders together to create a fused high-power distribution block (bus bars for multi-fuse applications are sold separately)
• Slots molded into the base enable secure tie-wrap mounting

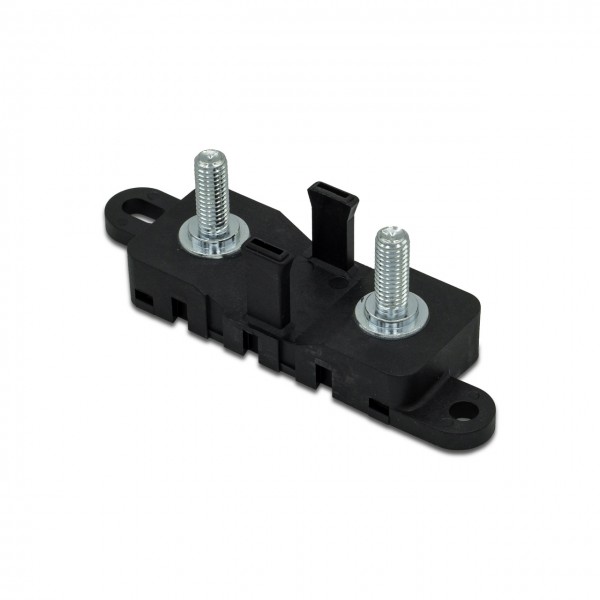

• Bolt-down fuse holder base features an M6 mounting hole and an M6 slot measuring 6mm long
• Options for stainless steel or zinc-plated steel M8 studs and hardware help ensure long-term corrosion resistance
• Flexible cover has a UL 94 V-0 flammability rating

Applications

• Battery and Alternator Connections
• High-Current Circuit Protection
• Electric Construction Equipment

Access specifications, certifications, check availability and order parts below

Catalog #	Fuse Type	Voltage Rating Max	Current Rating (Max)	Stock	Samples	Compare
02981028-BP	MEGA (298)	70	500	Check	Order
02981028HXFC	MEGA (298)	70	500	Check	Order
02981028HXFC-RED	MEGA (298)	70	500		Order
02981028HXFC-SS	MEGA	70	500	Check	Order
02981028HXFCB	MEGA		500	Check	Order
02981028HXFCC				Check	Order
02981028HXFCCR					Order
882-839-2					Order
882-839-3					Order
882-839-4					Order
882-839-5					Order
