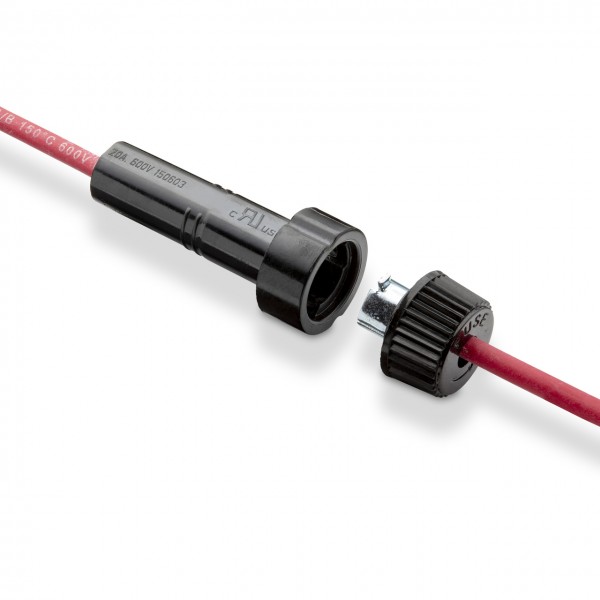

HV In-line fuse holder are used as a part of a wire harness assembly
or where no surface is available to secure another type of mount. Is intended
for use with 3AG/AB fuses with #14 lead wires. Maximum current rating
are 20 amperes at 600 V.
Features:
- High voltage applications
- Suitable for 3AB/AB Fuses
- Supplied with 19” loop of #14 AWG red vinyl insulated wire
Applications:
- High voltage Power supply
- Uninterrupted Power Supply (UPS)
- Commercial HVAC
- Commercial washer and dryers
| Catalog # | Amps (A) | Fuse Type | Indicating | Voltage Rating Max | Current Rating (Max) | Mounting | Partner ECAD Models | Stock | Samples |
|---|
 |  | | | | | | | | |
| 0150603 | 20 | Cylindrical | No | 600 | 20 | In-Line |  | Check | Order |
