Glass FNY Series > 휴즈홀더

The Glass FNY Series 32V In-Line Glass Fuse Holder accepts SFE, AGA, AGW, and AGX glass fuses (sold separately unless indicated). This automotive glass fuse holder features a spring-loaded, twist-lock, weather-resistant nylon body that ensures simple fuse installation and replacement.

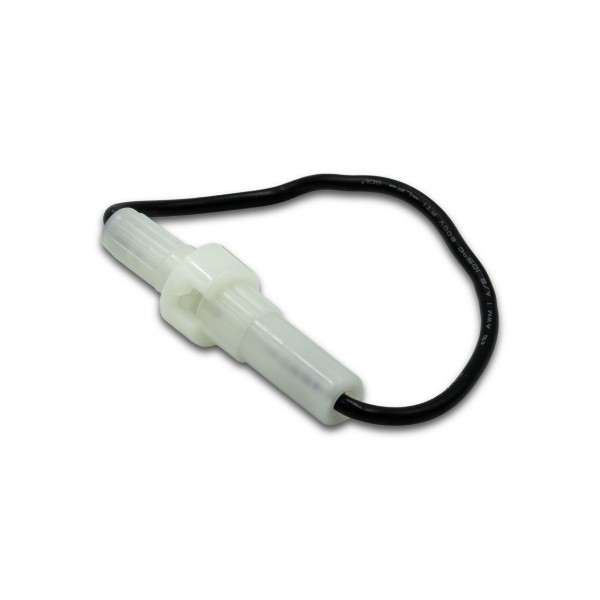

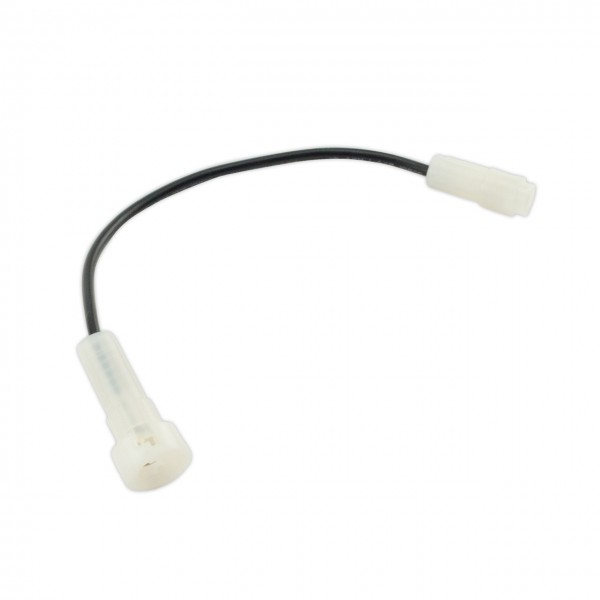

Standard-duty Glass FNY Series fuse holders come with an 8" looped UL 1015 wire and are designed for protecting accessory lighting, displays, and communications equipment. Heavy-duty options include two 4" GXL wire leads and are ideal for protecting air conditioners and blower motors.

Features and Benefits

• Universal design works with SFE, AGA, AGW, and AGX Series glass fuses (sold separately unless indicated)
• Standard-duty options feature an 8" looped 14 AWG UL 1015 wire with black insulation
• Heavy-duty versions have two 4" 12 AWG GXL wire leads with orange insulation
• Spring-loaded twist-lock body enables simple fuse installation and replacement
• Weather-resistant nylon body material

Applications

• Accessory Lighting, Displays, and Communications Equipment (Standard-Duty)
• Air Conditioners and Blower Motors (Heavy-Duty)

Access specifications, certifications, check availability and order parts below

Catalog #	Mounting Method	Fuse Type	Current Rating (Max)	Current Rating (Continuous) in Amps	Voltage Rating Max	Wire size	Temperature Maximum Fahrenheit	Temperature Maximum Celsius	Stock	Samples	Compare
0FNY0001XP	In-Line Fuse Holder	Glass	20	15	32	14	176	80		Order
0FNY0001ZXJ	In-Line Fuse Holder	Glass	20	15	32	14	176	80		Order
0FNY0002ZXJ	In-Line Fuse Holder	Glass	30	22.5	32	12	176	80		Order
0FNY0020XP	In-Line Fuse Holder	Glass	20	15	32	12	176	80		Order
0FNY0020Z			80						Check
0FNY0030XP	In-Line Fuse Holder	Glass	30	22.5	32	12	176	80	Check	Order
