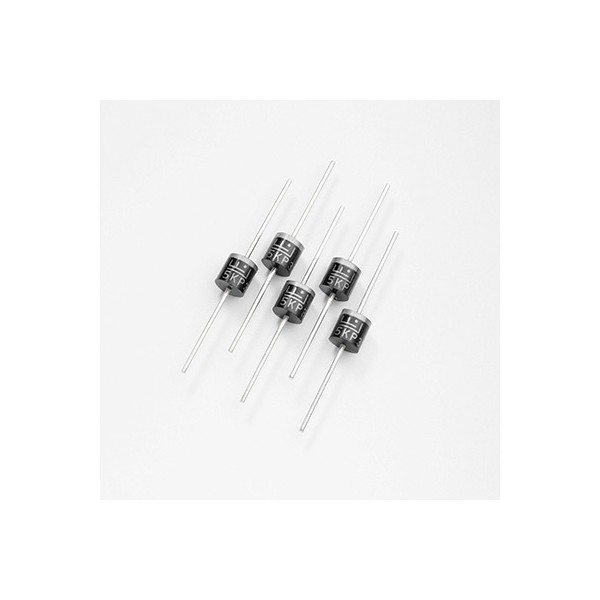

5KP > TVS Diodes

The 5KP Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features:


• Halogen-Free and RoHS compliant
• Typical maximum temperature coefficient ΔV_BR = 0.1% — V_BR@25°C
• Glass passivated junction
• 5000W peak pulse capability at 10—1000µs waveform, repetition rate (duty cycles):0.01%
• Fast response time: typically less than 1.0ps from 0 Volts to BV min
• Excellent clamping capability
• Low incremental surge resistance
• Typical IR less than 2µA above 12V
• High temperature soldering guaranteed: 265°C./10 seconds/ 0.375,(9.5mm) lead length, 51bs., (2.3kg) tension
• Plastic package has Underwriters Laboratory Flammability classification 94V-O
• Matte Tin Lead-free plated

Catalog #	VR (Vso)	Watts (W)	IPP 10x1000μs (A)	MIN VBR@IT (V)	MAX VBR@IT (V)	Vc (V)	IT (mA)	Ir@Vso (μA)	Max Temp (deg C)	Stock	Samples	Compare
5KP10	10	5000	295	10.530	12.870	17.85	5	15	150	Check	Order
5KP100	100	5000	30.9	104.850	128.150	170.1	5	2	150	Check	Order
5KP100A	100	5000	31.5	110.000	123.000	162	5	2	150	Check	Order
5KP100C	100	5000	30.9	104.850	128.150	170.1	5	2	150	Check	Order
5KP100CA	100	5000	31.5	110.000	123.000	162	5	2	150	Check	Order
5KP10A	10	5000	300	11.100	12.300	17	5	15	150	Check	Order
5KP10C	10	5000	295	10.530	12.870	17.85	5	15	150	Check	Order
5KP10CA	10	5000	300	11.100	12.300	17	5	15	150	Check	Order
5KP11	11	5000	275	11.565	14.135	19.11	5	2	150	Check	Order
5KP110	110	5000	28.3	115.650	141.350	185.85	5	2	150	Check	Order
5KP110A	110	5000	28.8	122.000	135.000	177	5	2	150	Check	Order
5KP110C	110	5000	28.3	115.650	141.350	185.85	5	2	150	Check	Order
5KP110CA	110	5000	28.8	122.000	135.000	177	5	2	150	Check	Order
5KP11A	11	5000	280.2	12.200	13.500	18.2	5	2	150	Check	Order
5KP11C	11	5000	275	11.565	14.135	19.11	5	2	150	Check	Order
5KP11CA	11	5000	280.2	12.200	13.500	18.2	5	2	150	Check	Order
5KP12	12	5000	252	12.600	15.400	20.895	5	2	150	Check	Order
5KP120	120	5000	26	126.000	154.000	202.65	5	2	150	Check	Order
5KP120A	120	5000	26.4	133.000	147.000	193	5	2	150	Check	Order
5KP120C	120	5000	26	126.000	154.000	202.65	5	2	150	Check	Order
5KP120CA	120	5000	26.4	133.000	147.000	193	5	2	150	Check	Order
5KP12A	12	5000	256.3	13.300	14.700	19.9	5	2	150	Check	Order
5KP12C	12	5000	252	12.600	15.400	20.895	5	2	150	Check	Order
5KP12CA	12	5000	256.3	13.300	14.700	19.9	5	2	150	Check	Order
5KP13	13	5000	233	13.635	16.665	22.575	5	2	150	Check	Order
5KP130	130	5000	24	136.350	166.650	219.45	5	2	150	Check	Order
5KP130A	130	5000	24.4	144.000	159.000	209	5	2	150	Check	Order
5KP130C	130	5000	24	136.350	166.650	219.45	5	2	150	Check	Order
5KP130CA	130	5000	24.4	144.000	159.000	209	5	2	150	Check	Order
5KP13A	13	5000	237.2	14.400	15.900	21.5	5	2	150	Check	Order
5KP13C	13	5000	233	13.635	16.665	22.575	5	2	150	Check	Order
5KP13CA	13	5000	237.2	14.400	15.900	21.5	5	2	150	Check	Order
5KP14	14	5000	216	14.760	18.040	24.36	5	2	150	Check	Order
5KP14A	14	5000	219.8	15.600	17.200	23.2	5	2	150	Check	Order
5KP14C	14	5000	216	14.760	18.040	24.36	5	2	150	Check	Order
5KP14CA	14	5000	219.8	15.600	17.200	23.2	5	2	150	Check	Order
5KP15	15	5000	205	15.840	19.360	25.62	5	2	150	Check	Order
5KP150	150	5000	20.6	158.400	193.600	255.15	5	2	150	Check	Order
5KP150A	150	5000	21	167.000	185.000	243	5	2	150	Check	Order
5KP150C	150	5000	20.6	158.400	193.600	255.15	5	2	150	Check	Order
5KP150CA	150	5000	21	167.000	185.000	243	5	2	150	Check	Order
5KP15A	15	5000	209	16.700	18.500	24.4	5	2	150	Check	Order
5KP15C	15	5000	205	15.840	19.360	25.62	5	2	150	Check	Order
5KP15CA	15	5000	209	16.700	18.500	24.4	5	2	150	Check	Order
5KP16	16	5000	193	16.875	20.625	27.3	5	2	150	Check	Order
5KP160	160	5000	19.3	168.750	206.250	271.95	5	2	150	Check	Order
5KP160A	160	5000	19.7	178.000	197.000	259	5	2	150	Check	Order
5KP160C	160	5000	19.3	168.750	206.250	271.95	5	2	150	Check	Order
5KP160CA	160	5000	19.7	178.000	197.000	259	5	2	150	Check	Order
5KP16A	16	5000	196.2	17.800	19.700	26	5	2	150	Check	Order
5KP16C	16	5000	193	16.875	20.625	27.3	5	2	150	Check	Order
5KP16CA	16	5000	196.2	17.800	19.700	26	5	2	150	Check	Order
5KP17	17	5000	181	17.910	21.890	28.98	5	2	150	Check	Order
5KP170	170	5000	18.2	179.100	218.900	288.75	5	2	150	Check	Order
5KP170A	170	5000	18.5	189.000	209.000	275	5	2	150	Check	Order
5KP170C	170	5000	18.2	179.100	218.900	288.75	5	2	150	Check	Order
5KP170CA	170	5000	18.5	189.000	209.000	275	5	2	150	Check	Order
5KP17A	17	5000	184.8	18.900	20.900	27.6	5	2	150	Check	Order
5KP17C	17	5000	181	17.910	21.890	28.98	5	2	150	Check	Order
5KP17CA	17	5000	184.8	18.900	20.900	27.6	5	2	150	Check	Order
5KP18	18	5000	172	18.945	23.155	30.66	5	2	150	Check	Order
5KP180	180	5000	17.6	189.450	231.550	306.6	5	2	150	Check	Order
5KP180A	180	5000	17.5	200.000	221.000	292	5	2	150	Check	Order
5KP180C	180	5000	17.6	189.450	231.550	306.6	5	2	150	Check	Order
5KP180CA	180	5000	17.5	200.000	221.000	292	5	2	150	Check	Order
5KP18A	18	5000	174.7	20.000	22.100	29.2	5	2	150	Check	Order
5KP18C	18	5000	172	18.945	23.155	30.66	5	2	150	Check	Order
5KP18CA	18	5000	174.7	20.000	22.100	29.2	5	2	150	Check	Order
5KP190	190	5000	9.7	199.800	244.200	325.5	5	2	150	Check	Order
5KP190A	190	5000	16.5	211.000	233.000	310	5	2	150	Check	Order
5KP190C	190	5000	9.7	199.800	244.200	325.5	5	2	150	Check	Order
5KP190CA	190	5000	16.5	211.000	233.000	310	5	2	150	Check	Order
5KP20	20	5000	154	21.015	25.685	34.02	5	2	150	Check	Order
5KP200	200	5000	9.1	210.600	257.400	345.66	5	2	150	Check	Order
5KP200A	200	5000	15.5	222.000	246.000	329.2	5	2	150	Check	Order
5KP200C	200	5000	9.1	210.600	257.400	345.66	5	2	150	Check	Order
5KP200CA	200	5000	15.5	222.000	246.000	329.2	5	2	150	Check	Order
5KP20A	20	5000	157.4	22.200	24.500	32.4	5	2	150	Check	Order
5KP20C	20	5000	154	21.015	25.685	34.02	5	2	150	Check	Order
5KP20CA	20	5000	157.4	22.200	24.500	32.4	5	2	150	Check	Order
5KP210	210	5000	8.6	220.950	270.050	366.975	5	2	150	Check	Order
5KP210A	210	5000	14.6	233.000	258.000	349.5	5	2	150	Check	Order
5KP210C	210	5000	8.6	220.950	270.050	366.975	5	2	150	Check	Order
5KP210CA	210	5000	14.6	233.000	258.000	349.5	5	2	150	Check	Order
5KP22	22	5000	141	22.905	27.995	37.275	5	2	150	Check	Order
5KP220	220	5000	8.1	231.300	282.700	389.655
