5KP-HRA > TVS Diodes

The 5KP-HRA High Reliability Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features:

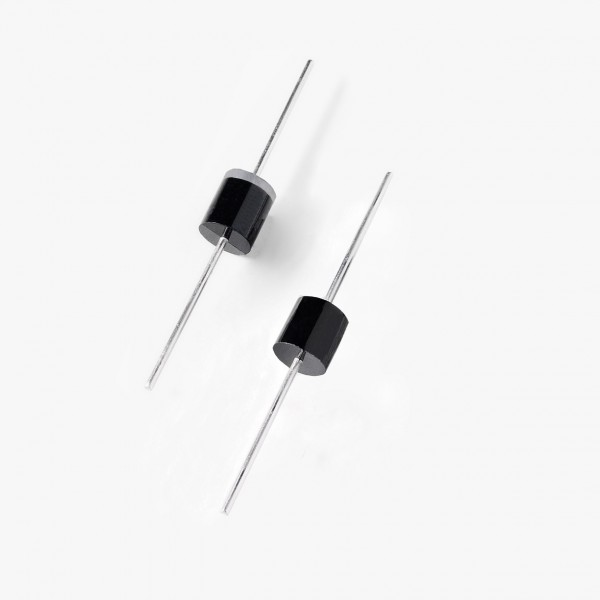

• Glass passivated chip junction in P600 package
• 5000W peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%
• Fast response time: typically less than 1.0ps from 0 Volts to BV min
• Excellent clamping capability
• Typical failure mode is short from over-specified voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
• IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)
• ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
• EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)
• Low incremental surge resistance
• Typical IR less than 2μA when VBR min>12V
• High temperature soldering guaranteed: 260°C/40 seconds / 0.375”, (9.5mm) lead length, 5lbs., (2.3kg) tension
• VBR @ TJ= VBR@25°C x (1+αT x (TJ - 25)) (αT: Temperature Coefficient, typical value is 0.1%)
• Plastic package has underwriters laboratory flammability classification 94V-O
• Lead-free matte tin plated package
• Halogen free and RoHS compliant

Applications:

TVS devices are ideal for the protection of I/O interfaces, V_CC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.

Catalog # VR (Vso) Watts (W) IPP 10x1000μs (A) MIN VBR@IT (V) MAX VBR@IT (V) Vc (V) IT (mA) Ir@Vso (μA) Max Temp (deg C) Stock Samples Compare 5KP100A-HRA 100.0 5000 31.5 110.00 123.00 162.0 5 2 175 Check Order 5KP100CA-HRA 100.0 5000 31.5 110.00 123.00 162.0 5 2 175 Check Order 5KP10A-HRA 10.0 5000 300.0 11.10 12.30 17.0 5 15 175 Check Order 5KP10CA-HRA 10.0 5000 300.0 11.10 12.30 17.0 5 30 175 Check Order 5KP110A-HRA 110.0 5000 28.8 122.00 135.00 177.0 5 2 175 Check Order 5KP110CA-HRA 110.0 5000 28.8 122.00 135.00 177.0 5 2 175 Check Order 5KP11A-HRA 11.0 5000 280.2 12.20 13.50 18.2 5 2 175 Check Order 5KP11CA-HRA 11.0 5000 280.2 12.20 13.50 18.2 5 2 175 Check Order 5KP120A-HRA 120.0 5000 26.4 133.00 147.00 193.0 5 2 175 Check Order 5KP120CA-HRA 120.0 5000 26.4 133.00 147.00 193.0 5 2 175 Check Order 5KP12A-HRA 12.0 5000 256.3 13.30 14.70 19.9 5 2 175 Check Order 5KP12CA-HRA 12.0 5000 256.3 13.30 14.70 19.9 5 2 175 Check Order 5KP130A-HRA 130.0 5000 24.4 144.00 159.00 209.0 5 2 175 Check Order 5KP130CA-HRA 130.0 5000 24.4 144.00 159.00 209.0 5 2 175 Check Order 5KP13A-HRA 13.0 5000 237.2 14.40 15.90 21.5 5 2 175 Check Order 5KP13CA-HRA 13.0 5000 237.2 14.40 15.90 21.5 5 2 175 Check Order 5KP14A-HRA 14.0 5000 219.8 15.60 17.20 23.2 5 2 175 Check Order 5KP14CA-HRA 14.0 5000 219.8 15.60 17.20 23.2 5 2 175 Check Order 5KP150A-HRA 150.0 5000 21.0 167.00 185.00 243.0 5 2 175 Check Order 5KP150CA-HRA 150.0 5000 21.0 167.00 185.00 243.0 5 2 175 Check Order 5KP15A-HRA 15.0 5000 209.0 16.70 18.50 24.4 5 2 175 Check Order 5KP15CA-HRA 15.0 5000 209.0 16.70 18.50 24.4 5 2 175 Check Order 5KP160A-HRA 160.0 5000 19.7 178.00 197.00 259.0 5 2 175 Check Order 5KP160CA-HRA 160.0 5000 19.7 178.00 197.00 259.0 5 2 175 Check Order 5KP16A-HRA 16.0 5000 196.2 17.80 19.70 26.0 5 2 175 Check Order 5KP16CA-HRA 16.0 5000 196.2 17.80 19.70 26.0 5 2 175 Check Order 5KP170A-HRA 170.0 5000 18.5 189.00 209.00 275.0 5 2 175 Check Order 5KP170CA-HRA 170.0 5000 18.5 189.00 209.00 275.0 5 2 175 Check Order 5KP17A-HRA 17.0 5000 184.8 18.90 20.90 27.6 5 2 175 Check Order 5KP17CA-HRA 17.0 5000 184.8 18.90 20.90 27.6 5 2 175 Check Order 5KP180A-HRA 180.0 5000 17.5 200.00 221.00 292.0 5 2 175 Check Order 5KP180CA-HRA 180.0 5000 17.5 200.00 221.00 292.0 5 2 175 Check Order 5KP18A-HRA 18.0 5000 174.7 20.00 22.10 29.2 5 2 175 Check Order 5KP18CA-HRA 18.0 5000 174.7 20.00 22.10 29.2 5 2 175 Check Order 5KP190A-HRA 190.0 5000 16.5 211.00 233.00 310.0 5 2 175 Check Order 5KP190CA-HRA 190.0 5000 16.5 211.00 233.00 310.0 5 2 175 Check Order 5KP200A-HRA 200.0 5000 15.5 222.00 246.00 329.2 5 2 175 Check Order 5KP200CA-HRA 200.0 5000 15.5 222.00 246.00 329.2 5 2 175 Check Order 5KP20A-HRA 20.0 5000 157.4 22.20 24.50 32.4 5 2 175 Check Order 5KP20CA-HRA 20.0 5000 157.4 22.20 24.50 32.4 5 2 175 Check Order 5KP210A-HRA 210.0 5000 14.6 233.00 258.00 349.5 5 2 175 Check Order 5KP210CA-HRA 210.0 5000 14.6 233.00 258.00 349.5 5 2 175 Check Order 5KP220A-HRA 220.0 5000 13.7 244.00 270.00 371.1 5 2 175 Check Order 5KP220CA-HRA 220.0 5000 13.7 244.00 270.00 371.1 5 2 175 Check Order 5KP22A-HRA 22.0 5000 143.7 24.00 26.90 35.5 5 2 175 Check Order 5KP22CA-HRA 22.0 5000 143.7 24.00 26.90 35.5 5 2 175 Check Order 5KP24A-HRA 24.0 5000 131.1 26.70 29.50 38.9 5 2 175 Check Order 5KP24CA-HRA 24.0 5000 131.1 26.70 29.50 38.9 5 2 175 Check Order 5KP26A-HRA 26.0 5000 121.1 28.90 31.90 42.1 5 2 175 Check Order 5KP26CA-HRA 26.0 5000 121.1 28.90 31.90 42.1 5 2 175 Check Order 5KP28A-HRA 28.0 5000 112.3 31.10 34.40 45.4 5 2 175 Check Order 5KP28CA-HRA 28.0 5000 112.3 31.10 34.40 45.4 5 2 175 Check Order 5KP30A-HRA 30.0 5000 105.4 33.30 36.80 48.4 5 2 175 Check Order 5KP30CA-HRA 30.0 5000 105.4 33.30 36.80 48.4 5 2 175 Check Order 5KP33A-HRA 33.0 5000 95.7 36.70 40.60 53.3 5 2 175 Check Order 5KP33CA-HRA 33.0 5000 95.7 36.70 40.60 53.3 5 2 175 Check Order 5KP40A-HRA 40.0 5000 79.1 44.40 49.10 64.5 5 2 175 Check Order 5KP40CA-HRA 40.0 5000 79.1 44.40 49.10 64.5 5 2 175 Check Order 5KP43A-HRA 43.0 5000 73.5 47.80 52.80 69.4 5 2 175 Check Order 5KP43CA-HRA 43.0 5000 73.5 47.80 52.80 69.4 5 2 175 Check Order 5KP45A-HRA 45.0 5000 70.2 50.00 55.30 72.7 5 2 175 Check Order 5KP45CA-HRA 45.0 5000 70.2 50.00 55.30 72.7 5 2 175 Check Order 5KP5.0A-HRA 5.0 5000 554.3 6.40 7.00 9.2 50 5000 175 Check Order 5KP5.0CA-HRA 5.0 5000 554.3 6.40 7.00 9.2 50 10000 175 Check Order 5KP51A-HRA 51.0 5000 61.9 56.70 62.70 82.4 5 2 175 Check Order 5KP51CA-HRA 51.0 5000 61.9 56.70 62.70 82.4 5 2 175 Check Order 5KP54A-HRA 54.0 5000 58.6 60.00 66.30 87.1 5 2 175 Check Order 5KP54CA-HRA 54.0 5000 58.6 60.00 66.30 87.1 5 2 175 Check Order 5KP58A-HRA 58.0 5000 54.5 64.40 71.20 93.6 5 2 175 Check Order 5KP58CA-HRA 58.0 5000 54.5 64.40 71.20 93.6 5 2 175 Check Order 5KP6.0A-HRA 6.0 5000 495.1 6.67 7.37 10.3 50 5000 175 Check Order 5KP6.0CA-HRA 6.0 5000 495.1 6.67 7.37 10.3 50 10000 175 Check Order 5KP6.5A-HRA 6.5 5000 455.4 7.22 7.98 11.2 50 2000 175 Check Order 5KP6.5CA-HRA 6.5 5000 455.4 7.22 7.98 11.2 50 4000 175 Check Order 5KP60A-HRA 60.0 5000 52.7 66.70 73.70 96.8 5 2 175 Check Order 5KP60CA-HRA 60.0 5000 52.7 66.70 73.70 96.8 5 2 175 Check Order
