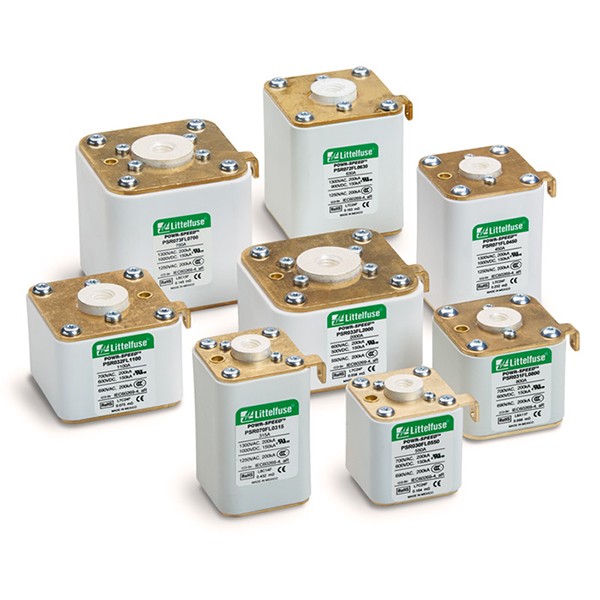

ESS에너지저장장치전용_PSR Series 요약정보 및 구매

[① 600Vdc_40A~2000A ②1000Vdc_50A~700A_150Ka_Littelfuse]

위시리스트0
추천하기
판매가격 온라인 견적문의 | 실시간 견적문의 하기
제조사 Littelfuse
브랜드 Littelfuse
모델 ESS에너지저장장치전용_PSR Series
배송비결제 주문시 결제

궁금한 점은 언제든 문의주시면 친절히 상담해 드리겠습니다.
전화문의 : 031-267-4793
이메일 : pa@paparts.co.kr










  • 상품 정보

    상품 상세설명





    Littelfuse PSR 시리즈 고속 사각 몸체 퓨즈는 다이오드, 트라이 액, IGBT, SCR, MOSFET 및
    일반적으로 전력 변환 및 전력 조절 장비로 설계된 기타 고체 소자와 같은 전력 반도체 소자를
    보호하기 위해 특별히 설계되었습니다. 가변 주파수 드라이브, 인버터, UPS, 정류기 및 소프트
    스타터는 라인 서지 또는 과전류 조건을 견딜 수 없으며 고속 보호가 요구되는 민감한 전력 반도체
    장치로 설계된 전형적인 장비의 예입니다.
    Littelfuse POWR-SPEED ® PSR 시리즈 제품은 현대의 전력 변환장치를 보호하는 데 필요한
    　
    매우 빠른 속도로 최적의 회로 보호 기능을 제공합니다. 이러한 제품은 펄프 및 제지 산업, 크레인
    　
    및 대형 리프팅 장비, 가공 산업, 폐수 처리 공장 및 다양한 대형 공장 및 MRO 설비를 포함한 수많은
    　
    응용 분야에서 흔히 볼 수 있습니다.
    특징 및 장점
    동급 최강의 DC 성능
    극한 전류 제한
    뛰어난 사이클링 기능
    　
    　
    　
    　
      글로벌 인증 cURus, CCC, IEC
    　
    　
    　
    　
      직접 버스 바 장착 디자인
    　
    　
    　
    　
      비주얼 및 옵션 마이크로 스위치 퓨즈 단락 표시
    　
    　
    　
    　
      낮은 와트 손실 설계
    　
    　
    　
    　
      미국 및 캐나다 요구 사항 준수
    　
    　
    　
    　
      IEC60269-4에 따른 클래스 aR 성능
    응용 프로그램
    전력 변환 장치 (UPS, 인버터, 정류기, 드라이브)
    　
    　
    　
    　
    DC 시스템 (DC Common Bus, DC Injection Braking)
    　
    　
    　
    　
    배터리 보호 애플리케이션 (에너지 저장 시스템)
    　
    　
    　
    　
    전기 자동차 충전소
    　
    　
    　
    　
    히터 및 전원 공급 장치
















    ​Catalog # Amps (A) Interrupting Rating Opening Case Size Stock Samples Compare





    PSR030FL0040 40 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FL0050 50 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FL0063 63 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FL0080 80 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FL0100 100 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FL0125 125 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FL0160 160 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FL0200 200 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FL0250 250 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FL0315 315 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FL0350 350 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FL0400 400 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FL0450 450 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FL0500 500 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FL0550 550 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FS0040 40 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FS0050 50 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FS0063 63 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FS0080 80 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FS0100 100 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FS0125 125 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FS0160 160 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FS0200 200 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FS0250 250 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FS0315 315 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FS0350 350 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FS0400 400 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FS0450 450 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FS0500 500 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR030FS0550 550 200kA@700VAC Very Fast-Acting (FF) 30 Check Order


    PSR031FL0200 200 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FL0250 250 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FL0315 315 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FL0350 350 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FL0400 400 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FL0450 450 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FL0500 500 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FL0550 550 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FL0630 630 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FL0700 700 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FL0800 800 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FS0200 200 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FS0250 250 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FS0315 315 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FS0350 350 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FS0400 400 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FS0450 450 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FS0500 500 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FS0550 550 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FS0630 630 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FS0700 700 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR031FS0800 800 200kA@700VAC Very Fast-Acting (FF) 31 Check Order


    PSR032FL0400 400 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR032FL0450 450 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR032FL0500 500 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR032FL0550 550 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR032FL0630 630 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR032FL0700 700 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR032FL0800 800 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR032FL0900 900 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR032FL1000 100 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR032FL1100 1100 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR032FS0400 400 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR032FS0450 450 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR032FS0500 500 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR032FS0550 550 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR032FS0630 630 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR032FS0700 700 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR032FS0800 800 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR032FS0900 900 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR032FS1000 1000 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR032FS1100 1100 200kA@700VAC Very Fast-Acting (FF) 32 Check Order


    PSR033FL0450 450 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FL0500 500 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FL0550 550 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FL0630 630 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FL0700 700 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FL0800 800 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FL0900 900 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FL1000 1000 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FL1100 1100 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FL1250 1250 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FL1400 1400 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FL1500 1500 200kA@650VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FL1600 1600 200kA@650VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FL1800 1800 200kA@650VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FL2000 2000 200kA@600VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FS0450 450 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FS0500 500 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FS0550 550 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FS0630 630 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FS0700 700 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FS0800 800 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FS0900 900 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FS1000 1000 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FS1100 1100 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FS1250 1250 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FS1400 1400 200kA@700VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FS1500 1500 200kA@650VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FS1600 1600 200kA@650VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FS1800 1800 200kA@650VAC Very Fast-Acting (FF) 33 Check Order


    PSR033FS2000 2000 200kA@600VAC Very Fast-Acting (FF) 33 Check Order


    PSR070FL0050 050 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR070FL0063 063 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR070FL0080 080 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR070FL0100 100 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR070FL0125 125 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR070FL0160 160 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR070FL0200 200 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR070FL0250 250 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR070FL0280 280 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR070FL0315 315 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR070FS0050 050 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR070FS0063 063 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR070FS0080 080 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR070FS0100 100 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR070FS0125 125 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR070FS0160 160 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR070FS0200 200 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR070FS0250 250 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR070FS0280 280 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR070FS0315 315 100kA@1300VAC Very Fast-Acting (FF) 70 Check Order


    PSR071FL0160 160 100kA@1300VAC Very Fast-Acting (FF) 71 Check Order


    PSR071FL0200 200 100kA@1300VAC Very Fast-Acting (FF) 71 Check Order


    PSR071FL0250 250 100kA@1300VAC Very Fast-Acting (FF) 71 Check Order


    PSR071FL0280 280 100kA@1300VAC Very Fast-Acting (FF) 71 Check Order


    PSR071FL0315 315 100kA@1300VAC Very Fast-Acting (FF) 71 Check Order


    PSR071FL0350 350 100kA@1300VAC Very Fast-Acting (FF) 71 Check Order


    PSR071FL0400 400 100kA@1300VAC Very Fast-Acting (FF) 71 Check Order


    PSR071FL0450 450 100kA@1300VAC Very Fast-Acting (FF) 71 Check Order


    PSR071FS0160 160 100kA@1300VAC Very Fast-Acting (FF) 71 Check Order


    PSR071FS0200 200 100kA@1300VAC Very Fast-Acting (FF) 71 Check Order


    PSR071FS0250 250 100kA@1300VAC Very Fast-Acting (FF) 71 Check Order


    PSR071FS0280 280 100kA@1300VAC Very Fast-Acting (FF) 71 Check Order


    PSR071FS0315 315 100kA@1300VAC Very Fast-Acting (FF) 71 Check Order


    상품 정보 고시

    품명 ESS에너지저장장치전용_PSR Series
    모델명 ESS에너지저장장치전용_PSR Series
    법에 의한 인증·허가 등을 받았음을 확인할 수 있는 경우 그에 대한 사항 상품페이지 참고
    제조국 또는 원산지 상품페이지 참고
    제조자 상품페이지 참고
    A/S 책임자와 전화번호 또는 소비자상담 관련 전화번호 031-267-4793

  • 사용후기

    등록된 사용후기

    사용후기가 없습니다.

  • 상품문의

    등록된 상품문의

    상품문의가 없습니다.

  • 배송/교환정보

    배송




    계약택배사:CJ대한통운


    오후3시이전 주문시 당일배송입니다.

    평균 배송기간은 3일이내입니다.
    *배송기간은 주말/공휴일을 제외한 영업일 기준입니다.

    교환




    일반적으로 휴즈는 반품이나 교환이 불가능합니다.
    이유는 소비자 구입후 전류기기에 전류를 통과시킬경우 단락여부를 교환시 확인이 불가능합니다.
    구매시 정확한 선정후 특별한 사유의 교환조건을 협의후 바로 교환해드립니다.

고객센터

031-267-4793

월 - 금 / 09:00 - 18:00
점심시간 / 12:00 - 13:00
주말,공휴일 휴무

무통장입금시 계좌번호

기업은행 : 468-067279-01-010

예금주 : 파파츠

반품 및 교환

경기도 화성시 동탄첨단산업1로 27,B-2960

자세한 교환·반품절차 안내는
상품하단을 참고해주세요.

CJ대한통운 바로가기

채널



파파츠

대표 이옥미
사업자등록번호 444-08-00598
통신판매업신고번호 제 2017-화성동부-0084호
주소 경기도 화성시 동탄첨단산업1로 27,B-2960
전화 031-267-4793 팩스 031-267-4792
이메일 pa@paparts.co.kr
개인정보책임관리자 신승호

COPYRIGHT © 2017 파파츠 ALL RIGHTS RESERVED.
