Product
description
|
|
|
|
|
|
Eaton’s

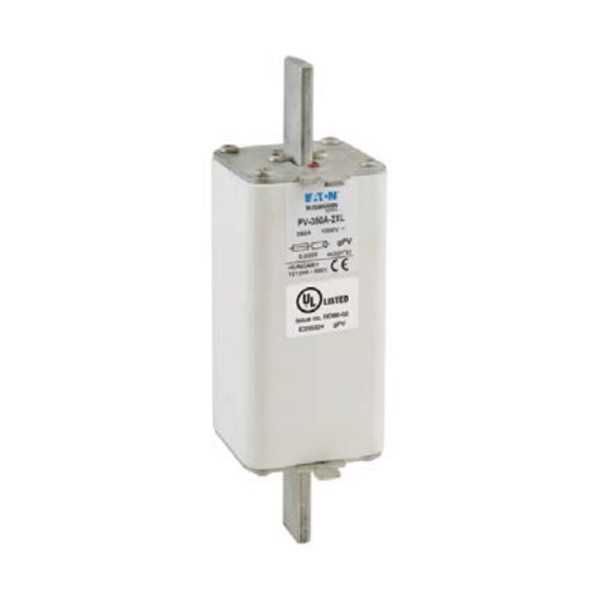

Bussmann® series XL fuse links are
|
|
|
specifically
designed to protect and isolate
|
|
|
photovoltaic
array combiners and disconnects.
|
|
|
These fuse
links are capable of interrupting low
|
|
|
overcurrents
associated with fulted PV systems
|
|
|
(reverse
current, multi-array fault).
|
|
|
|
|
|
Standard
features
|
|
|
|
|
|
• Global
accreditations
|
|
|
• Compatible
with Eaton’s Bussmann series
|
|
|
PV XL bases range (see data sheet 10066) |
|
|
|
|
|
|
|
|
|
|
|
제품설명
|
|
|
|
|
|
Eaton의 Bussmann® 시리즈 XL 퓨즈링크는
|
|
|
보호및격리하도록특별히설계된
|
|
|
광전지어레이결합기및단종료
|
|
|
이러한퓨즈링크는로우(low)를방해할수있습니다.
|
|
|
결함이있는 PV 시스템과관련된과전류
|
|
|
(전류, 다중어레이결함)
|
|
|
|
|
|
표준기능
|
|
|
|
|
|
• 글로벌인증
|
|
|
• Eaton의 Bussmann 시리즈와호환가능
|
|
|
PVXL 기준범위(데이터시트 10066 참조)
|
Catalogue numbers
Table 1. Technical data 1000 V d.c.
Bladed Bolted
PV-63A-01XL PV-63A-01XL-B
PV-80A-01XL PV-80A-01XL-B
PV-100A-01XL PV-100A-01XL-B
PV-125A-01XL PV-125A-01XL-B
PV-160A-01XL PV-160A-01XL-B
PV-200A-1XL PV-200A-1XL-B
PV-160A-2XL PV-160A-2XL-B
PV-200A-2XL PV-200A-2XL-B
PV-250A-2XL PV-250A-2XL-B
PV-315A-2XL PV-315A-2XL-B
PV-355A-2XL PV-355A-2XL-B
PV-160A-2XL-3B1
PV-200A-2XL-3B1
PV-250A-2XL-3B1
PV-315A-2XL-3B1
PV-355A-2XL-3B1
PV-350A-3L PV-350A-3L-B
PV-400A-3L PV-400A-3L-B
PV-500A-3L PV-500A-3L-B
PV-600A-3L PV-600A-3L-B
Table 2. Technical data 1500 V d.c.
Bladed with Bladed without Bolted with side Bolted without
top indicator top indicator indicator side indicator
PV-50A-01XL-15 PV-50A-01XL-B-15
PV-63A-01XL-15 PV-63A-01XL-B-15
PV-80A-01XL-15 PV-80A-01XL-B-15
PV-100A-01XL-15 PV-100A-01XL-B-15
PV-125A-01XL-15 PV-125A-01XL-B-15
PV-160A-01XL-12 PV-160A-01XL-B-12
PV-100A-1XL-15 PV-100A-1XL-B-15
PV-125A-1XL-15 PV-125A-1XL-B-15
PV-160A-1XL-15 PV-160A-1XL-B-15
PV-200A-1XL-15 PV-200A-1XL-B-15
PV-125A-2XL-15 PV-125A-2XL-B-15
PV-160A-2XL-15 PV-160A-2XL-B-15
PV-200A-2XL-15 PV-200A-2XL-B-15
PV-250A-2XL-15 PV-250A-2XL-B-15
PV-125A-2XL-3B-151
PV-160A-2XL-3B-151
PV-200A-2XL-3B-151
PV-250A-2XL-3B-151
PV-250A-3L-15 PV-250A-3L-B-15
PV-315A-3L-15 PV-315A-3L-U-15 PV-315A-3L-B-15 PV-315A-3L-BU-15
PV-355A-3L-15 PV-355A-3L-U-15 PV-355A-3L-B-15 PV-355A-3L-BU-15
PV-400A-3L-15 PV-400A-3L-U-15 PV-400A-3L-B-15 PV-400A-3L-BU-15
PV-500A-3L-15 PV-500A-3L-U-15 PV-500A-3L-B-15 PV-500A-3L-BU-15
