JCASE® FHJ Series > 자동차용퓨즈

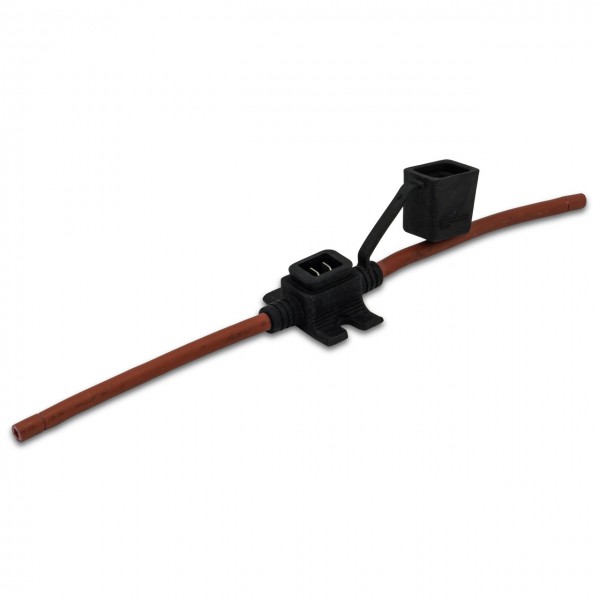

Easily install a JCASE® or Low-Profile JCASE® cartridge fuse (sold separately) using the JCASE® FHJ Series In-Line Cartridge Fuse Holder, which comes with either 10 AWG or 8 AWG wire leads.

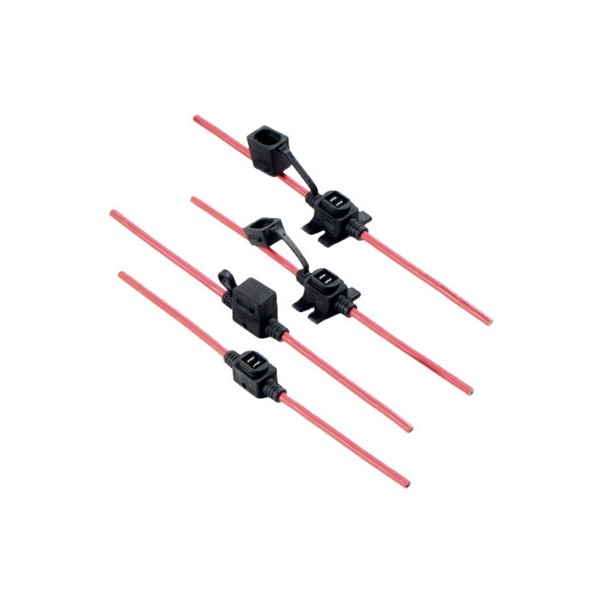

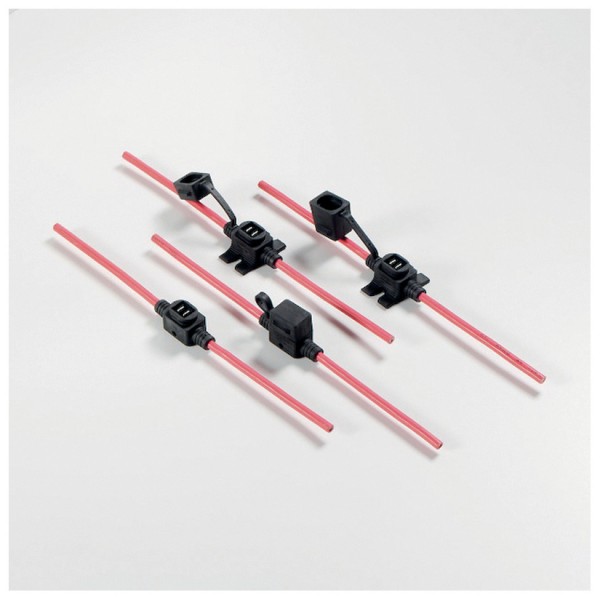

Available for JCASE® or Low-Profile JCASE® fuses (sold separately) from 20 amps up to 40 amps or up to 60 amps, the JCASE® FHJ Series fuse holder comes configured with or without an integrated mounting bracket. Models designed for the JCASE® fuse also come with or without a cover, which offers added protection in harsh environments.

All standard versions of the JCASE® FHJ Series fuse holder come with tin-plated copper alloy contacts for reliable fuse installation.

Custom and semi-custom orders of the JCASE® FHJ Series fuse holder can be produced (minimum order requirements apply). Contact your Littelfuse sales representative for details.

Features and Benefits

• Available for JCASE® and Low-Profile JCASE® cartridge fuses with ratings from 20 amps to 40 amps or up to 60 amps depending on the configuration (sold separately)
• Configurations with a built-in bracket make mounting simple
• Versions with a cover offer protection in harsh environments
• Black TPV housing with a UL 94 V-0 flammability rating
• 10 AWG or 8 AWG wire leads for easy in-line fuse holder installation
• Tin-plated copper alloy contacts help ensure reliable connections

Applications

• Accessory Circuits
• Overflow Circuits

Access specifications, certifications, check availability and order parts below

Catalog #	Mounting Method	Fuse Type	Current Rating (Max)	Current Rating (Continuous) in Amps	Voltage Rating Max	Wire size	Ignition protection	Stock	Samples	Compare
0FHJ1001G	In-Line Fuse Holder	JCASE	40	30	32	10	UL94	Check	Order
0FHJ1002G	In-Line	JCASE (0495) and LP JCASE (0895)	60		58			Check
0FHJ2001G	In-Line Fuse Holder	JCASE	40	30	32	10	UL94	Check	Order
0FHJ2002G	In-Line Fuse Holder	JCASE	60	45	32	8	UL94	Check	Order
FHJC1001G	In-Line Fuse Holder	JCASE	40	30	32	10	UL94	Check	Order
FHJC1001GB	In-Line Fuse Holder	JCASE	40	30	32	10	UL94		Order
FHJC1002G	In-Line Fuse Holder	JCASE	60	45	32	8	UL94	Check	Order
FHJC1002GB	In-Line Fuse Holder	JCASE	60	60	32	8	UL94		Order
FHJC1002L	In-Line Fuse Holder	JCASE	60	45	32	8	UL94		Order
FHJC2001G	In-Line	JCASE (0495)	40		58
FHJC2002G	In-Line Fuse Holder	JCASE	60	45	32	8	UL94	Check	Order
FHJC2002L	In-Line Fuse Holder	JCASE	60	45	32	8	UL94		Order
HLJC1001G	In-Line Fuse Holder	JCASE	40	30	32	10	UL94	Check	Order
HLJC1002G	In-Line Fuse Holder	JCASE	60	45	32	8	UL94	Check	Order
HLJC1002GA	In-Line Fuse Holder	JCASE	60	45	32	8	UL94		Order
HLJC2001G	In-Line	LP JCASE (0895)	40		58
HLJC2002G	In-Line Fuse Holder	JCASE	60	45	32	8	UL94	Check	Order
