Amps (A): 0.1, 0.15, 0.2, 0.25, 0.3, 0.4, 0.5, 0.6, 0.8, 1, 1.4, 1.5, 1.6, 1.8, 1.125, 1.25, 2, 2.5, 2.8, 2.25 more
VAC (V): 600
VDC (V): 600

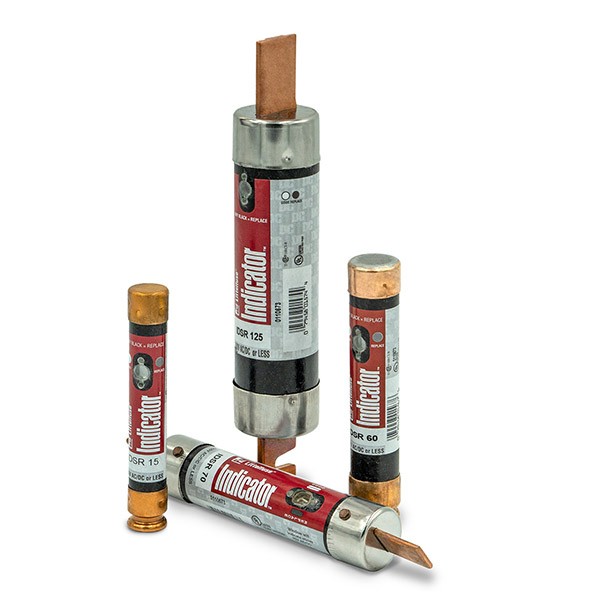

The Littelfuse IDSR Indicator™ fuse is the first indicating power fuse ever. Littelfuse IDSR Indicator ™
퓨즈는 최초로 전원 퓨즈를 나타냅니다.
Its solid-state design provides state-of-the-art reliability; 솔리드 스테이트 디자인은 최첨단의 신뢰성을 제공합니다.
it will forever change the way you look at modern circuit protection. 현대 회로 보호 방법을 영원히 바꿀 것입니다.
Money is wasted each time a circuit opens and halts production. 회로가 열리고 생산이 중단 될 때마다 돈이 낭비됩니다.
Thousands of dollars can be lost with every minute spent testing to discover the cause.
원인을 발견하기 위해 테스트하는 데 1 분마다 수천 달러가 손실 될 수 있습니다.
The Littelfuse IDSR Indicator™ fuse offers you a better way. Littelfuse IDSR 표시기 퓨즈는 더 나은 방법을 제공합니다.
Just a simple glance a the IDSR Indicator's window tells which circuit is open.
IDSR 표시기의 창은 어떤 회로가 열려 있는지 간단히 알려줍니다.
The circuit can be tested and any problem corrected without unnecessary delay.
회로를 테스트하고 불필요한 지연없이 문제를 해결할 수 있습니다.
No time wasted finding the faulted circuit. 오류가 발생한 회로를 찾는 데 낭비되는 시간이 없습니다.
No system damage. 시스템 손상이 없음.
And no costly down time. 그리고 값 비싼 다운 타임도 없습니다.
Applications 응용 분야
All general-purpose circuits 모든 범용 회로
Motors 모터
Transformers 트랜스포머
Solenoids 솔레노이드
Fluorescent lighting 형광등
All system components with high inrush currents 돌입 전류가 큰 모든 시스템 구성 요소
Features 풍모
Patented design fuses — The first totally new dual-element time-delay Class RK5 fuses in 10 years.
특허받은 디자인 퓨즈 - 완전히 새로운 듀얼 엘리먼트 시간 지연 Class RK5가 10 년 만에 융합되었습니다.
They look different because they are different! 그들은 다르기 때문에 그들은 다르게 보입니다!
Even the Littelfuse SLO-BLO® fuse, the fuse that set new standards for dual-element fuses
when it was introduced in 1984, cannot match the performance of POWR-PRO® Indicator™ fuses.
1984 년에 듀얼 - 요소 퓨즈가 도입되었을 때 새로운 기준을 설정 한 퓨즈 인 Littelfuse SLO-BLO®
퓨즈조차도 POWR-PRO® Indicator ™ 퓨즈의 성능과 일치 할 수 없습니다.
Pinpoint open fuses immediately — A glance at the window tells if the fuse has blown.
열린 퓨즈를 즉시 찾아냅니다 - 창을 보면 퓨즈가 끊어 졌는지 알 수 있습니다.
If the window is dark, the fuse has opened. 창문이 어두우면 퓨즈가 열렸습니다.
It's that simple. 그렇게 간단합니다.
No fuse testing required. 퓨즈 테스트가 필요하지 않습니다.
Reduce down-time — Machine operators can immediately determine that there
is an open fuse and request maintenance personnel to bring the correct replacement.
가동 중단 시간 단축 - 기계 운영자는 오픈 퓨즈가 있는지 즉시 판단하고 유지 보수 담당자에게 교체를 요청할 수 있습니다.
Superior time delay — POWR-PRO® Indicator™ fuses provide superior time delay
to override current surges without sacrificing protection for sustained overloads.
탁월한 시간 지연 - POWR-PRO® Indicator ™ 퓨즈는 지속적인 과부하에 대한 보호를
희생하지 않고도 전류 서지를 무시할 수있는 우수한 시간 지연을 제공합니다.
This superior time delay is achieved by a remarkable advance in the science of fuse design.
이러한 탁월한 시간 지연은 퓨즈 설계 과학의 놀라운 진보에 의해 달성됩니다.
Littelfuse-patented leading edge metallurgy eliminates all moving parts in a true dual-element fuse.
Littelfuse 특허의 첨단 야금 장치는 진정한 이중 소자 퓨즈에서 모든 움직이는 부품을 제거합니다.
| Catalog # | Amps (A) | Interrupting Rating | Opening | VAC (V) | VDC (V) | Size | Stock | Samples | Compare |
|---|
 |  | | | | | | | | |
| IDSR.100 | 0.1 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR.150 | 0.15 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR.200 | 0.2 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR.250 | 0.25 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR.300 | 0.3 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR.400 | 0.4 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR.500 | 0.5 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR.600 | 0.6 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR.800 | 0.8 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR001 | 1 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR002 | 2 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR003 | 3 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR004 | 4 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR005 | 5 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR006 | 6 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR007 | 7 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR008 | 8 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR009 | 9 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR01.4 | 1.4 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR01.5 | 1.5 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR01.6 | 1.6 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR01.8 | 1.8 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR010 | 10 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR012 | 12 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR015 | 15 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR02.5 | 2.5 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR02.8 | 2.8 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR020 | 20 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR025 | 25 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR03.2 | 3.2 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR03.5 | 3.5 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR030 | 30 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR035 | 35 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR04.5 | 4.5 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR040 | 40 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR045 | 45 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR05.6 | 5.6 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR050 | 50 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR060 | 60 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR07.5 | 7.5 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR070 | 70 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Knife-Blade | Check | Order | |
| IDSR075 | 75 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Knife-Blade | Check | Order | |
| IDSR080 | 80 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Knife-Blade | Check | Order | |
| IDSR090 | 90 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Knife-Blade | Check | Order | |
| IDSR1.12 | 1.125 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR1.25 | 1.25 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR100 | 100 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Knife-Blade | Check | Order | |
| IDSR110 | 110 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Knife-Blade | Check | Order | |
| IDSR125 | 125 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Knife-Blade | Check | Order | |
| IDSR150 | 150 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Knife-Blade | Check | Order | |
| IDSR17.5 | 17.5 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR175 | 175 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Knife-Blade | Check | Order | |
| IDSR2.25 | 2.25 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR200 | 200 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Knife-Blade | Check | Order | |
| IDSR225 | 225 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Knife-Blade | Check | Order | |
| IDSR250 | 250 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Knife-Blade | Check | Order | |
| IDSR300 | 300 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Knife-Blade | Check | Order | |
| IDSR350 | 350 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Knife-Blade | Check | Order | |
| IDSR400 | 400 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Knife-Blade | Check | Order | |
| IDSR450 | 450 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Knife-Blade | Check | Order | |
| IDSR500 | 500 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Knife-Blade | Check | Order | |
| IDSR6.25 | 6.25 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Industrial Cartridge | Check | Order | |
| IDSR600 | 600 | 20 kA @ 600 Vdc | Slo-Blo/Time Lag (T)/Time Delay | 600 | 600 | Knife-Blade | Check | Order | |
