LCE > TVS Diodes

The LCE Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features:

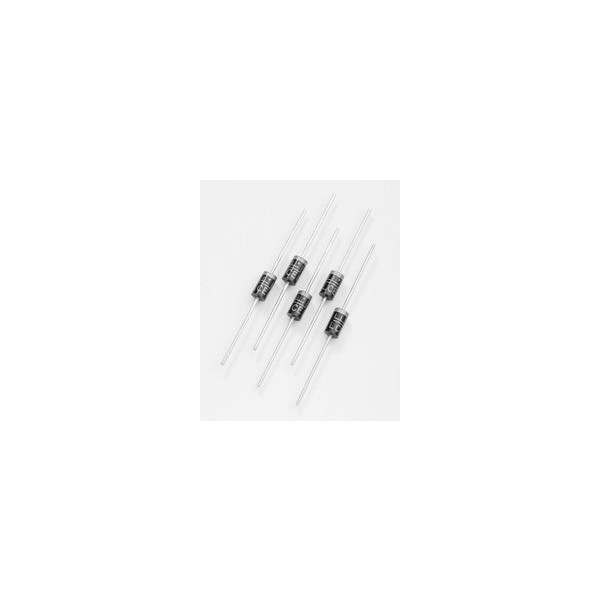

• Glass passivated chip junction in DO-201 Package
• 1500W peak pulse power capability at 10×1000μs waveform, repetition rate (duty cycles):0.01%
• Fast response time: typically less than 1.0ps from 0 Volts to BV min
• Excellent clamping capability
• Typical failure mode is short from over-specified voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
• IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
• ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
• EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)
• Low incremental surge resistance
• High temperature soldering guaranteed: 260°C/40 seconds / 0.375”,(9.5mm) lead length, 5 lbs., (2.3kg) tension
• Plastic package has underwriters laboratory flammability classification 94V-O
• Matee tin lead–free plated
• Ideal for data line applications
• Halogen free and RoHS compliant
•


Applications:

• TVS devices are ideal for the protection of I/O interfaces, V_CC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.

Catalog #	VR (Vso)	Watts (W)	IPP 10x1000μs (A)	MIN VBR@IT (V)	MAX VBR@IT (V)	Vc (V)	IT (mA)	Ir@Vso (μA)	Max Temp (deg C)	Stock	Samples	Compare
LCE10	10	1500	80	10.530	12.870	17	1	5	150	Check	Order
LCE10A	10	1500	88	11.100	12.300	17	1	5	150	Check	Order
LCE11	11	1500	74	11.565	14.135	18.2	1	1	150	Check	Order
LCE11A	11	1500	82	12.200	13.500	18.2	1	1	150	Check	Order
LCE12	12	1500	68	12.600	15.400	19.9	1	1	150	Check	Order
LCE12A	12	1500	75	13.300	14.700	19.9	1	1	150	Check	Order
LCE13	13	1500	63	13.635	16.665	21.5	1	1	150	Check	Order
LCE13A	13	1500	70	14.400	15.900	21.5	1	1	150	Check	Order
LCE14	14	1500	58	14.760	18.040	23.2	1	1	150	Check	Order
LCE14A	14	1500	65	15.600	17.200	23.2	1	1	150	Check	Order
LCE15	15	1500	56	15.840	19.360	24.4	1	1	150	Check	Order
LCE15A	15	1500	61	16.700	18.500	24.4	1	1	150	Check	Order
LCE16	16	1500	52	16.875	20.625	26	1	1	150	Check	Order
LCE16A	16	1500	57	17.800	19.700	26	1	1	150	Check	Order
LCE17	17	1500	49	17.910	21.890	27.6	1	1	150	Check	Order
LCE17A	17	1500	54	18.900	20.900	27.6	1	1	150	Check	Order
LCE18	18	1500	46	18.945	23.155	29.2	1	1	150	Check	Order
LCE18A	18	1500	51	20.000	22.100	29.2	1	1	150	Check	Order
LCE20	20	1500	42	21.015	25.685	32.4	1	1	150	Check	Order
LCE20A	20	1500	46	22.200	24.500	32.4	1	1	150	Check	Order
LCE22	22	1500	38	23.085	28.215	35.5	1	1	150	Check	Order
LCE22A	22	1500	42	24.400	26.900	35.5	1	1	150	Check	Order
LCE24	24	1500	35	25.290	30.910	38.9	1	1	150	Check	Order
LCE24A	24	1500	39	26.700	29.500	38.9	1	1	150	Check	Order
LCE26	26	1500	32	27.360	33.440	42.1	1	1	150	Check	Order
LCE26A	26	1500	36	28.900	31.900	42.1	1	1	150	Check	Order
LCE28	28	1500	30	29.475	36.025	45.5	1	1	150	Check	Order
LCE28A	28	1500	33	31.100	34.400	45.5	1	1	150	Check	Order
LCE30	30	1500	28	31.545	38.555	48.4	1	1	150	Check	Order
LCE30A	30	1500	31	33.300	36.800	48.4	1	1	150	Check	Order
LCE33A	33	1500	28.1	36.700	40.600	53.3	1	1	150	Check	Order
LCE36A	36	1500	25.8	40.000	44.200	58.1	1	1	150	Check	Order
LCE40A	40	1500	23.3	44.400	49.100	64.5	1	1	150	Check	Order
LCE43A	43	1500	21.6	47.800	52.800	69.4	1	1	150	Check	Order
LCE45A	45	1500	20.6	50.000	55.300	72.7	1	1	150	Check	Order
LCE48A	48	1500	19.4	53.300	58.900	77.4	1	1	150	Check	Order
LCE51A	51	1500	18.2	56.700	62.700	82.4	1	1	150	Check	Order
LCE54A	54	1500	17.2	60.000	66.300	87.1	1	1	150	Check	Order
LCE58A	58	1500	16	64.400	71.200	93.6	1	1	150	Check	Order
LCE6.5	6.5	1500	100	6.840	8.360	11.2	10	1000	150	Check	Order
LCE6.5A	6.5	1500	100	7.220	7.980	11.2	10	1000	150	Check	Order
LCE60A	60	1500	15.5	66.700	73.700	96.8	1	1	150	Check	Order
LCE64A	64	1500	14.6	71.100	78.600	103	1	1	150	Check	Order
LCE7.0	7	1500	100	7.371	9.009	12	10	500	150	Check	Order
LCE7.0A	7	1500	100	7.780	8.600	12	10	500	150	Check	Order
LCE7.5	7.5	1500	100	7.893	9.647	12.9	10	250	150	Check	Order
LCE7.5A	7.5	1500	100	8.330	9.210	12.9	10	250	150	Check	Order
LCE70A	70	1500	13.3	77.800	86.000	113	1	1	150	Check	Order
LCE75A	75	1500	12.4	83.300	92.100	121	1	1	150	Check	Order
LCE8.0	8	1500	100	8.424	10.296	13.6	1	100	150	Check	Order
LCE8.0A	8	1500	100	8.890	9.830	13.6	1	100	150	Check	Order
LCE8.5	8.5	1500	94	8.928	10.912	14.4	1	50	150	Check	Order
LCE8.5A	8.5	1500	100	9.440	10.400	14.4	1	50	150	Check	Order
LCE80	80	1500	10.6	84.015	102.685	129	1	1	150	Check	Order
LCE80A	80	1500	11.6	88.7	98	129	1	1	150	Check	Order
LCE9.0	9	1500	89	9.495	11.605	15.4	1	10	150	Check	Order
LCE9.0A	9	1500	97	10.000	11.100	15.4	1	10	150	Check	Order
LCE90A	90	1500	10.3	100.000	111.000	146	1	1	150	Check	Order
LCE33 Obsolete: 2004-11-09	33	1500	25.4	34.785	42.515	53.3	1	5	150	Check
LCE36 Obsolete: 2004-11-09	36	1500	23.3	37.89	46.31	58.1	1	5	150	Check
LCE40 Obsolete: 2004-11-09	40	1500	21	42.075	51.425	64.5	1	5	150	Check
LCE43 Obsolete: 2004-11-09	43	1500	19.5	45.27	55.33	69.4	1	5	150	Check
LCE45 Obsolete: 2004-11-09	45	1500	18.7	47.385	57.915	72.7	1	5	150	Check
LCE48 Obsolete: 2004-11-09	48	1500	17.5	50.49	61.71	77.4	1	5	150	Check
LCE51 Obsolete: 2004-11-09	51	1500	16.5	53.73	65.67	82.4	1	5	150	Check
LCE54 Obsolete: 2004-11-09	54	1500	15.6	56.835	69.465	87.1	1	5	150	Check
LCE58 Obsolete: 2004-11-09	58	1500	14.6	61.02	74.58	93.6	1	5	150	Check
LCE60 Obsolete: 2004-11-09	60	1500	14	63.18	77.22	96.8	1	5	150	Check
LCE64 Obsolete: 2004-11-09	64	1500	13.2	67.365	82.335	103	1	5	150	Check
LCE70 Obsolete: 2004-11-09	70	1500	12	73.71	90.09	113	1	5	150	Check
LCE75 Obsolete: 2004-11-09	75	1500	11.2	78.93	96.47	121	1	5	150	Check
LCE90 Obsolete: 2004-11-09	90	1500	9.4	94.95	116.05	146	1	5	150	Check
