LPHV Series > 기타휴즈홀더

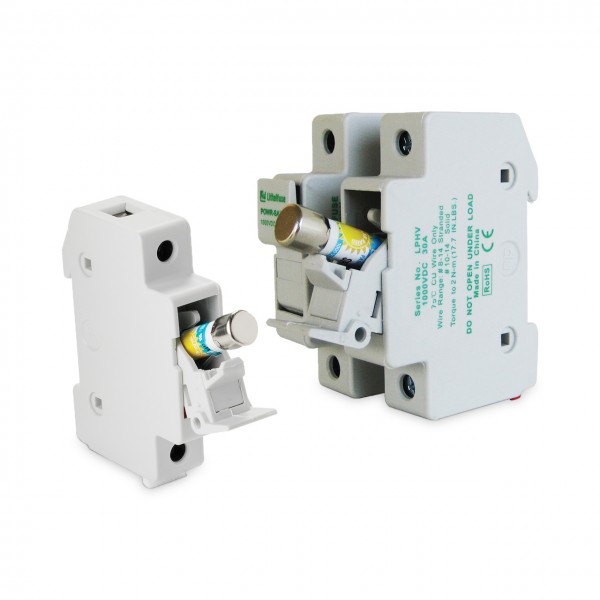

The LPHV Series dead front fuse holders are a touch-safe design providing protection

to personnel when installing and removing fuses. They are intended to house midget-

sized 1000 V fuses. These fuse holders are not designed for load break, but they are

 ideal for isolating photovoltaic module strings for maintenance and meet UL requirements for 1000 V solar fuse protection. The compact fuse holder mounts quickly

 onto a 35 mm DIN rail, decreasing panel layout and assembly time. They are available

 in 1-, 2-, 3-, and 4-pole configurations, or they can be connected together with a

 Littelfuse multi-pole assembly kit (sold separately). The LPHV series has been self-

certified to stringent Littelfuse standards for applications upward of 1000 V dc.

These fuse holders meet IEC 60269-2, -4, and -6 performance requirements.

Features

• Touch-safe design
• 35 mm DIN rail mountable
• Compact design
• Easy removal

Catalog #	Fuse Type	Indicating	Stock	Samples	Compare
LPHV001	Midget	No	Check	Order
LPHV002	Midget	No	Check	Order
LPHV003	Midget	No	Check	Order
LPHV004	Midget	No	Check	Order
