MINI® Add-A-Circuit® Series > 기타휴즈홀더

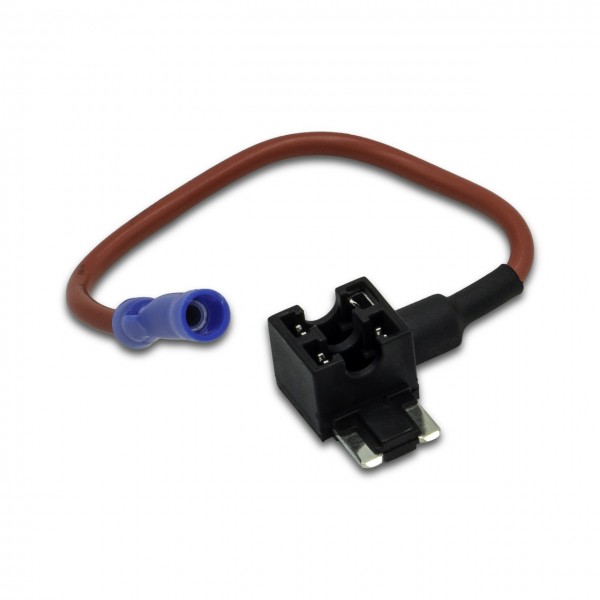

The MINI® Add-A-Circuit® Series Fuse Holder for MINI®, Low Profile MINI®,

or MICRO2® Fuses is designed to allow easy installation of additional circuits

without any cutting or splicing, which is typically necessary to prevent voiding

a new vehicle warranty. The fuse tap turns a single fuse slot into two slots

so you can protect the new accessory circuit as well as the existing circuit.

The MINI® Add-A-Circuit® fuse tap is available for MINI®, Low Profile MINI®,

and MICRO2® fuses. Available blister packaged MINI® Add-A-Circuit® kits come

 with a set of fuses (3A, 5A, 7.5A, and 10A) in the corresponding MINI®,

 Low Profile MINI®, or MICRO2® fuse style.

Features and Benefits

• Available for MINI®, Low Profile MINI®, and MICRO2® fuses
•

• Turns one fuse slot into two to protect an additional accessory circuit
• without cutting or splicing
•

• Available butt splice connectors allow easy wiring
•

• 16 AWG wire leads with red insulation
•

• UL 94 V-0 flammability rating

Applications

• Add-On Accessory Circuits

Catalog #	Mounting Method	Fuse Type	Current Rating (Max)	Voltage Rating Max	Part Datasheet	Stock	Samples	Compare
0FHM0200S	IN-LINE FUSE HOLDER BLADES / BUTT SPLICE CONNECTOR	MINI	10	32			Order
0FHM0200Z	In-Line Fuse Holder	MINI	10	32		Check	Order
0FHM0200Z-NC	IN-LINE / FUSE HOLDER BLADES	MINI	10	32			Order
0FHM0200ZP	In-Line Fuse Holder	MINI	10	32		Check
FHLM0200Z	In-Line Fuse Holder	MINI	10	32		Check	Order
FHLM0200ZPA	In-Line Fuse Holder	MINI	10	32		Check	Order
FHM20200Z	In-Line Fuse Holder	MICRO	10	32		Check	Order
FHM20200ZPA	In-Line Fuse Holder	MICRO	10	32		Check	Order
