NH 시스템은플러그인퓨즈시스템으로분류되며다음으로구성됩니다.
• 퓨즈 -베이스 (단자커버및위상장벽포함가능)
• 블레이드접점과의퓨즈링크
• 퓨즈링크교체장치 (LV HRC 퓨즈풀러) 이시스템의설계는정격전류의비호환성을보장할수없으며, 이는자격을갖춘전문가가처리해야합니다.
Type aM NH 퓨즈 - 링크는부분범위차단용량의퓨즈 - 링크로, 전류제한이강하고전력손실이적기때문에모터회로를보호하는데사용됩니다.
이들은 6.3 배에서최대차단용량까지전류를차단하므로단락보호에만적합합니다.
과부하방지를위해다른배전반과연결되어야합니다.
이퓨즈 - 링크는모터의정격전류와동일한정격전류를가질수있습니다.
The NH system is classified as a plug-in fuse system and consists of:
Fuse -base (including terminal covers and phase barriers)
• Fuse link to blade contacts
• Fuse link replacement (LV HRC fuse puller) The design of this system cannot guarantee the incompatibility of rated current, which should be handled by qualified experts.

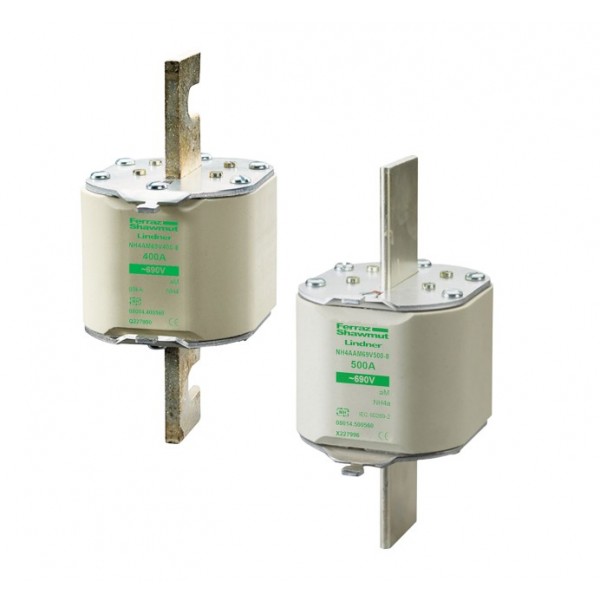

Type aM NH Fuse - A link is a fuse - link in the partial range cut-off capacity, which is used to protect the motor circuit because of its strong current limit and low power loss.
They are suitable for short circuit protection only because they cut current from the 6.3 to the maximum cut-off capacity.
It should be connected to other switchboards to prevent overload.
This fuse - link can have the same rated current as the motor's rated current.
FEATURES & BENEFITS
• Dimensions according to DIN 43 620 parts 1 to 4
• Non-isolated gripping lugs
• Double indicator
• Lead free contact blades
• 0% cadmium
APPLICATIONS
• aM: Partial purpose, motor circuit protection
STANDARDS
• VDE 0636 Part 201
• IEC 60269-1 and -2
기능 & 혜택
• DIN 43에 따른 치수 620부 1~4부
• 비절연 그립 러그
• 이중 표시기
• 무연 접촉 블레이드
• 카드뮴 0%
적용들
• aM: 부분 목적, 모터 회로 보호.
스탠더드
• VDE 0636 파트 201
• IEC 60269-1 및 -2
Catalog-Reference
• NH4AAM69V1000-8 - B228000
• NH4AAM69V500-8 - X227996
• NH4AAM69V630-8 - Y227997
• NH4AAM69V800-8 - A227999
• NH4AM69V1000-8 - V227994
• NH4AM69V400-8 - Q227990
• NH4AM69V500-8 - R227991
• NH4AM69V630-8 - S227992
• NH4AM69V800-8 - T227993
