P4KE > TVS Diodes

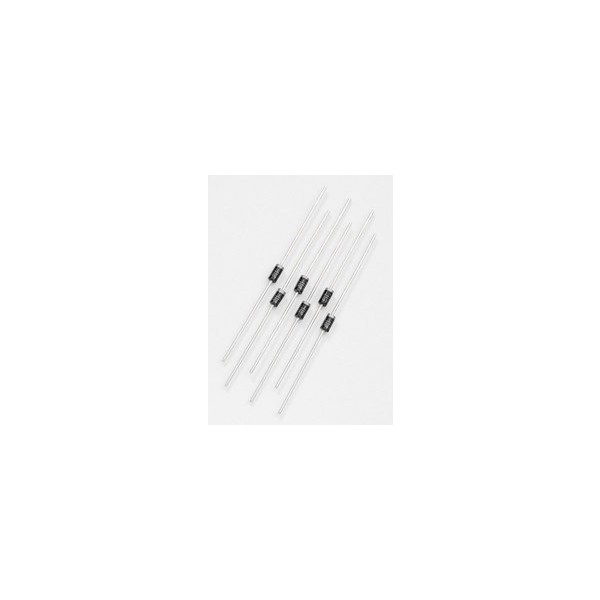

400W Axial Leaded Transient Voltage Supressors

VR (Vso): 8.55, 85.5, 9.4, 94, 10.2, 102, 11.1, 111, 12.8, 128

Watts (W): 400

IPP 10x1000μs (A): 28.3, 3, 26.3, 2.7, 24.6, 2.5, 22.5, 2.3, 19.3, 2

P4KE 시리즈는 특별히 보호하기 위해 설계되었습니다.

sensitive electronic equipment from voltage transients

과도 전압으로부터 민감한 전자 장비

induced by lightning and other transient voltage events.

Features 풍모:

Halogen-Free and RoHS compliant 할로겐 프리 및 RoHS 준수

Plastic package 플라스틱 패키지

Glass passivated chip junction in DO-41 Package DO-41 패키지의 유리 패시베이션 된 칩 접합부

400W surge capability at 10/1000 us wave form 10/1000 us 웨이브 폼에서 400W 서지 기능

Excellent clamping capability 탁월한 클램핑 기능

Low zener impedance 낮은 제너 임피던스

Fast response time: typically less than 1.0ps from 0 Volts to V(BR) min.

빠른 응답 시간 : 일반적으로 0 볼트에서 V (BR) 분까지 1.0ps 미만입니다.

Typical IR less than 1uA above 10V 10V 이상에서 1uA 미만의 일반적인 IR

atalog #	VR (Vso)	Watts (W)	IPP 10x1000μs (A)	MIN VBR@IT (V)	MAX VBR@IT (V)	Vc (V)	IT (mA)	Ir@Vso (μA)	Max Temp (deg C)	Stock	Samples	Compare
P4KE10	8.55	400	28.3	9.000	11.000	15.225	1	10	150	Check	Order
P4KE100	85.5	400	3	90.000	110.000	143.85	1	1	150	Check	Order
P4KE100A	85.5	400	3	95.000	105.000	137	1	1	150	Check	Order
P4KE100C	85.5	400	3	90.000	110.000	143.85	1	1	150	Check	Order
P4KE100CA	85.5	400	3	95.000	105.000	137	1	1	150	Check	Order
P4KE10A	8.55	400	28.3	9.500	10.500	14.5	1	10	150	Check	Order
P4KE10C	8.55	400	28.3	9.000	11.000	15.225	1	10	150	Check	Order
P4KE10CA	8.55	400	28.3	9.500	10.500	14.5	1	10	150	Check	Order
P4KE11	9.4	400	26.3	9.945	12.155	16.38	1	5	150	Check	Order
P4KE110	94	400	2.7	99.450	121.550	159.6	1	1	150	Check	Order
P4KE110A	94	400	2.7	105.000	116.000	152	1	1	150	Check	Order
P4KE110C	94	400	2.7	99.450	121.550	159.6	1	1	150	Check	Order
P4KE110CA	94	400	2.7	105.000	116.000	152	1	1	150	Check	Order
P4KE11A	9.4	400	26.3	10.500	11.600	15.6	1	5	150	Check	Order
P4KE11C	9.4	400	26.3	9.945	12.155	16.38	1	5	150	Check	Order
P4KE11CA	9.4	400	26.3	10.500	11.600	15.6	1	5	150	Check	Order
P4KE12	10.2	400	24.6	10.800	13.200	17.535	1	5	150	Check	Order
P4KE120	102	400	2.5	108.000	132.000	173.25	1	1	150	Check	Order
P4KE120A	102	400	2.5	114.000	126.000	165	1	1	150	Check	Order
P4KE120C	102	400	2.5	108.000	132.000	173.25	1	1	150	Check	Order
P4KE120CA	102	400	2.5	114.000	126.000	165	1	1	150	Check	Order
P4KE12A	10.2	400	24.6	11.400	12.600	16.7	1	5	150	Check	Order
P4KE12C	10.2	400	24.6	10.800	13.200	17.535	1	5	150	Check	Order
P4KE12CA	10.2	400	24.6	11.400	12.600	16.7	1	5	150	Check	Order
P4KE13	11.1	400	22.5	11.745	14.355	19.11	1	1	150	Check	Order
P4KE130	111	400	2.3	117.450	143.550	187.95	1	1	150	Check	Order
P4KE130A	111	400	2.3	124.000	137.000	179	1	1	150	Check	Order
P4KE130C	111	400	2.3	117.450	143.550	187.95	1	1	150	Check	Order
P4KE130CA	111	400	2.3	124.000	137.000	179	1	1	150	Check	Order
P4KE13A	11.1	400	22.5	12.400	13.700	18.2	1	1	150	Check	Order
P4KE13C	11.1	400	22.5	11.745	14.355	19.11	1	1	150	Check	Order
P4KE13CA	11.1	400	22.5	12.400	13.700	18.2	1	1	150	Check	Order
P4KE15	12.8	400	19.3	13.545	16.555	22.26	1	1	150	Check	Order
P4KE150	128	400	2	135.450	165.550	217.35	1	1	150	Check	Order
P4KE150A	128	400	2	143.000	158.000	207	1	1	150	Check	Order
P4KE150C	128	400	2	135.450	165.550	217.35	1	1	150	Check	Order
P4KE150CA	128	400	2	143.000	158.000	207	1	1	150	Check	Order
P4KE15A	12.8	400	19.3	14.300	15.800	21.2	1	1	150	Check	Order
P4KE15C	12.8	400	19.3	13.545	16.555	22.26	1	1	150	Check	Order
P4KE15CA	12.8	400	19.3	14.300	15.800	21.2	1	1	150	Check	Order
P4KE16	13.6	400	18.2	14.400	17.600	23.625	1	1	150	Check	Order
P4KE160	136	400	1.9	144.000	176.000	229.95	1	1	150	Check	Order
P4KE160A	136	400	1.9	152.000	168.000	219	1	1	150	Check	Order
P4KE160C	136	400	1.9	144.000	176.000	229.95	1	1	150	Check	Order
P4KE160CA	136	400	1.9	152.000	168.000	219	1	1	150	Check	Order
P4KE16A	13.6	400	18.2	15.200	16.800	22.5	1	1	150	Check	Order
P4KE16C	13.6	400	18.2	14.400	17.600	23.625	1	1	150	Check	Order
P4KE16CA	13.6	400	18.2	15.200	16.800	22.5	1	1	150	Check	Order
P4KE170	145	400	1.8	153.450	187.550	245.7	1	1	150	Check	Order
P4KE170A	145	400	1.8	162.000	179.000	234	1	1	150	Check	Order
P4KE170C	145	400	1.8	153.450	187.550	245.7	1	1	150	Check	Order
P4KE170CA	145	400	1.8	162.000	179.000	234	1	1	150	Check	Order
P4KE18	15.3	400	16.1	16.200	19.800	26.775	1	1	150	Check	Order
P4KE180	154	400	1.7	162.000	198.000	258.3	1	1	150	Check	Order
P4KE180A	154	400	1.7	171.000	189.000	246	1	1	150	Check	Order
P4KE180C	154	400	1.7	162.000	198.000	258.3	1	1	150	Check	Order
P4KE180CA	154	400	1.7	171.000	189.000	246	1	1	150	Check	Order
P4KE18A	15.3	400	16.1	17.100	18.900	25.5	1	1	150	Check	Order
P4KE18C	15.3	400	16.1	16.200	19.800	26.775	1	1	150	Check	Order
P4KE18CA	15.3	400	16.1	17.100	18.900	25.5	1	1	150	Check	Order
P4KE20	17.1	400	14.8	18.000	22.000	29.085	1	1	150	Check	Order
P4KE200	171	400	1.5	180.000	220.000	287.7	1	1	150	Check	Order
P4KE200A	171	400	1.5	190.000	210.000	274	1	1	150	Check	Order
P4KE200C	171	400	1.5	180.000	220.000	287.7	1	1	150	Check	Order
P4KE200CA	171	400	1.5	190.000	210.000	274	1	1	150	Check	Order
P4KE20A	17.1	400	14.8	19.000	21.000	27.7	1	1	150	Check	Order
P4KE20C	17.1	400	14.8	18.000	22.000	29.085	1	1	150	Check	Order
P4KE20CA	17.1	400	14.8	19.000	21.000	27.7	1	1	150	Check	Order
P4KE22	18.8	400	13.4	19.800	24.200	32.13	1	1	150	Check	Order
P4KE220	185	400	1.3	198.000	242.000	344.4	1	1	150	Check	Order
P4KE220A	185	400	1.3	209.000	231.000	328	1	1	150	Check	Order
P4KE220C	185	400	1.3	198.000	242.000	344.4	1	1	150	Check	Order
P4KE220CA	185	400	1.3	209.000	231.000	328	1	1	150	Check	Order
P4KE22A	18.8	400	13.4	20.900	23.100	30.6	1	1	150	Check	Order
P4KE22C	18.8	400	13.4	19.800	24.200	32.13	1	1	150	Check	Order
P4KE22CA	18.8	400	13.4	20.900	23.100	30.6	1	1	150	Check	Order
P4KE24	20.5	400	12.3	21.600	26.400	34.86	1	1	150	Check	Order
P4KE24A	20.5	400	12.3	22.800	25.200	33.2	1	1	150	Check	Order
P4KE24C	20.5	400	12.3	21.600	26.400	34.86	1	1	150	Check	Order
P4KE24CA	20.5	400	12.3	22.800	25.200	33.2	1	1	150	Check	Order
P4KE250	214	400	1.2	225.000	275.000	361.2	1	1	150	Check	Order
P4KE250A	214	400	1.2	237.000	263.000	344	1	1	150	Check	Order
P4KE250C	214	400	1.2	225.000	275.000	361.2	1	1	150	Check	Order
P4KE250CA	214	400	1.2	237.000	263.000	344	1	1	150	Check	Order
P4KE27	23.1	400	10.9	24.345	29.755	39.375	1	1	150	Check	Order
P4KE27A	23.1	400	10.9	25.700	28.400	37.5	1	1	150
