PTF Series > 기타휴즈홀더

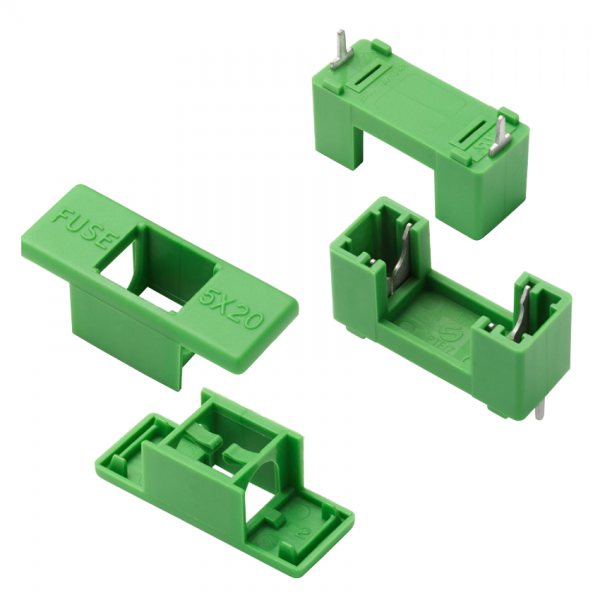

PTF Fuse Blocks rated at 6.3 amps up to 250V for 5x20mm fuse size

Features:

• RoHS compliant and Lead-free
• Include version of plug in to maintain the fuseblock into the correct position, while soldering process
• Tin-plated leads for easy soldering process
• UL Recognized to UL 4248-1
• Low profile design for PC board mountable terminals for Pb-free wave soldering process

Applications:

• Power Supply
• Wireless LAN Access Point
• Battery Control Module
• DC Motor Drives
• Appliances
• Control panels

Catalog #	Amps (A)	Fuse Type	Indicating	Voltage Rating Max	Mounting	Partner ECAD Models	Stock	Samples	Compare
00BS0232P	15	Cylindrical	No	125	PCB Mount		Check	Order
0PTF0075P	15	Cylindrical	No	125	PCB Mount		Check	Order
0PTF0077P	15	Cylindrical	No	125	PCB Mount		Check	Order
0PTF0078P	15	Cylindrical	No	125	PCB Mount		Check	Order
