TOO Series 요약정보 및 구매

[Time-Delay_0.25-30A_125Vac_Littelfuse]

위시리스트0
추천하기
판매가격 온라인 견적문의 | 실시간 견적문의 하기
제조사 Littelfuse
브랜드 Littelfuse
모델 TOO Series
배송비결제 주문시 결제

궁금한 점은 언제든 문의주시면 친절히 상담해 드리겠습니다.
전화문의 : 031-267-4793
이메일 : pa@paparts.co.kr










  • 상품 정보

    상품 상세설명





    Amps (A): 0.3, 0.4, 0.5, 0.6, 0.8, 1, 2, 3, 4, 5, 6, 7, 8, 9, 1.4, 1.6, 1.8, 10, 12, 14 more
    VAC (V): 125
    Interrupting Rating: 10000A@125VAC

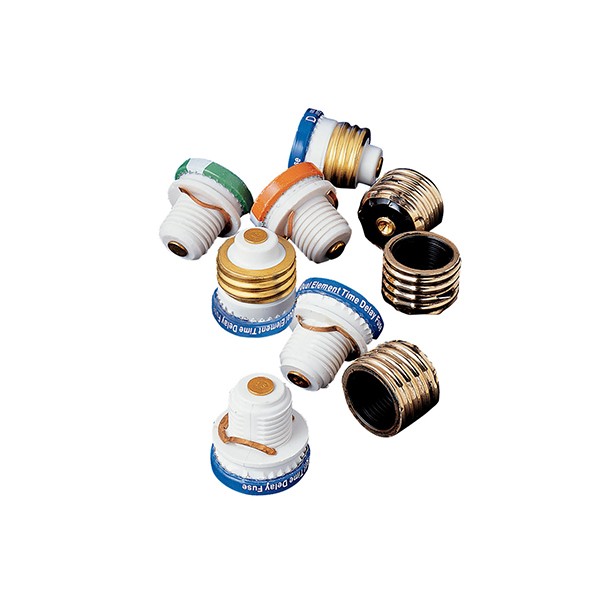

    TOO Fuses are dual-element time delay Edison-base fuses designed for motor and motor branch-circuit protection;
    also suitable for all general purpose circuits.
    Use for replacement purposes only.


    Applications:


    The National Electric Code now permits Edison-base fuses to be used only for replacements in existing installations,
    and then, only when there is no evidence of overfusing or tampering.

    All new Edison-based fuse holders must have Type S fuse adapters installed before they are placed in service.

    Designed to prevent installation of wrong size fuses,
    Type S Adapters (SAO series) screw into Edison-base fuse holders so they may accept Type S fuses.

    Once installed the adapters cannot be removed.

    To prevent shunting of open fuses or overfusing, and to reduce nuisance fuse opening, it is recommended that SAO adapters with properly rated SLO or SOO series fuses be installed in all Edison-base fuse holders.










    Access specifications, certifications, check availability and order parts below

    Catalog #Amps (A)Interrupting RatingOpeningVAC (V)SizeStockSamplesCompare
    TOO.3000.310 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO.4000.410 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO.5000.510 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO.6000.610 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO.8000.810 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO001110 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO002210 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO003310 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO004410 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO005510 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO006610 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO007710 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO008810 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO009910 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO01.41.410 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO01.61.610 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO01.81.810 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO0101010 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO0121210 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO0141410 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO0151510 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO02.52.510 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO02.82.810 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO0202010 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO0252510 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO03.23.210 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO03.53.510 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO0303010 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO04.54.510 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO05.65.610 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO1.121.12510 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO1.251.2510 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO2.252.2510 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
    TOO6.256.2510 kA @ 125 VacSlo-Blo/Time Lag (T)/Time Delay125Plug FuseCheckOrder
