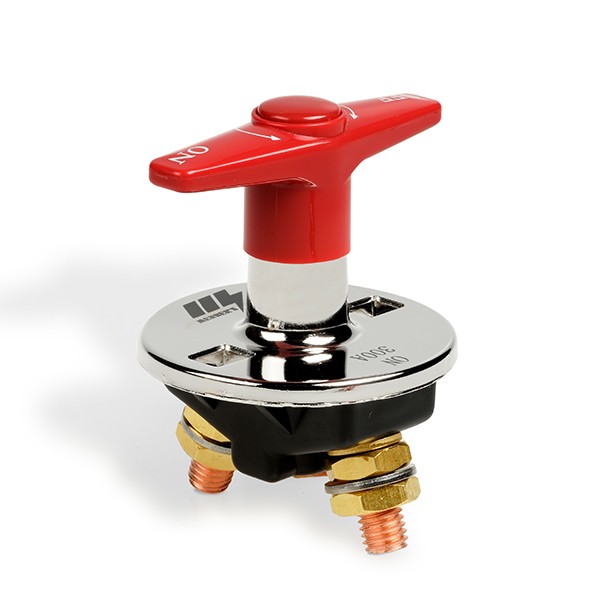

Featuring a rugged metal body and unique 360° operation, the 08010100 Series 24V 300A
SPST Waterproof Manual Battery Disconnect Switch with Fixed T-Handle is designed
for heavy-duty applications, such as mining, material handling, construction, and agriculture.
The bright red, fixed T-handle can be rotated left or right to switch the circuit status,
making it ideal for use as an emergency battery cutoff switch. The switch is ON when
the handle is aligned with the terminals and OFF when it's perpendicular to the terminals.
This single-pole, single-throw (SPST) disconnect switch also features a V-shape terminal design
that reduces the risk of electrical arcing. In addition, the waterproof battery disconnect is rated
to IP65 standards, safeguarding it against dust and debris as well as water jets.
Features and Benefits
- 300A continuous current rating and 1000A at 10 seconds inrush current rating
- Rugged metal body is designed for heavy-duty applications
- Dust-tight, waterproof battery disconnect switch is protected to IP65 standards
- Fixed, bright red T-handle is highly visible
- Handle and contacts are designed with 360° operation, which allows the handle
- to be rotated either left or right to switch the circuit status
- Switch is ON when the handle is aligned with the terminals and OFF
- when perpendicular to the terminals
- V-shape terminal position reduces the risk of arcing and allows easy cable connection
-
Applications
- Mining & Material Handling
- Construction & Agricultural
- Off-Road & Heavy Trucks
- Emergency Vehicles
- Marine
| Catalog # | Package Type | Description | Voltage | Continuous current | Inrush current | Terminal Material | Terminal hardware | Recommended stud torque | Details | Terminals | Actuator | Case | Installation | Overall height | Max voltage rating |
|---|
 |  | | | | | | | | | | | | | | |
08010100
Obsolete: 2018 -08-14 | Bulk | Battery Disconnect Switch 300A 24V SPST IP65 | 12V
24V | 300 | 1000A x 10 sec | Copper | M10 | 12±2 Nm | Single Pole Single Throw (SPST) | M10 Copper Studs | Red T-Handle | Plated Steel Housing Plastic Base | Flange Mount | 97.1 mm | 24V |
