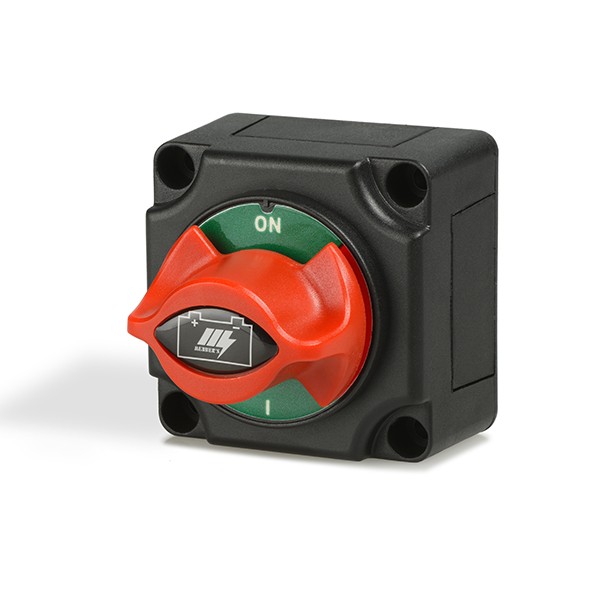

Ideal for marine and automotive electrical system protection, the 08080700 Series
24V 300A Panel-Mount Rotary Battery Switch features a removable cover
and pre-cut sides to allow cable exit in the desired position.
Available as a 300A disconnect switch or battery selector switch, it features
silver-plated copper M10 contacts and is protected against dust and debris
as well as water splashes to IP54 standards.
The single-pole, single-throw (SPST) battery disconnect switch models feature
either a rotary knob or removable key, while the single-pole, dual-throw (SPDT) battery s
elector switch model comes with a rotary knob.
Features and Benefits
- Continuous current rating of 300A and current inrush rating of 1000A for 5 seconds
- Silver-plated copper M10 contacts
- Removable lower cover and pre-cut sides allow cable exit in the desired position
- Protected against dust and water splashes to IP54 standards
- Panel-mount design for simple installation
- SPST battery cutoff switch options come with either a rotary knob or removable key actuator
- with a 52mm key/handle exit hole
- SPDT battery selector switch option features a rotary knob
Applications
- Marine
- Agricultural
- Off-Road Vehicles
- Emergency Vehicles
| |
|
|
|
| Catalog # | Voltage | Continuous current | Inrush current | Ingress Protection | Terminal Material | Terminal hardware | Recommended stud torque | Compare |
|---|
 |  | | | | | | | | | 08080700 | 12V
24V | 300 | 1000A x 5 sec | IP54 | Copper | M10 Brass | 12±2 Nm | | | 08080800 | 12V
24V | 300 | 1000A x 5 sec | IP54 | Copper | M10 Brass | 12±2 Nm | | | 08080900 | 12V
24V | 300 | 1000A x 5 sec | IP54 | Copper | M10 Brass | 12±2 Nm |
|
