08084000 Series > 배터리스위치/센서

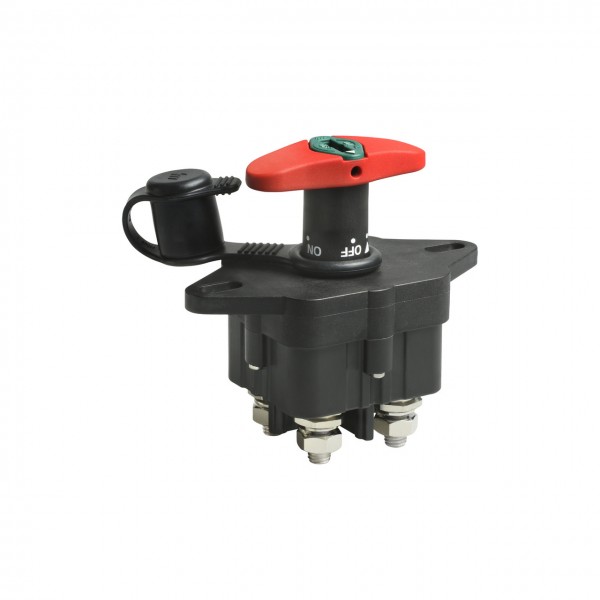

Designed for heavy trucks and emergency vehicles and mining, material handling, construction,

 marine, and agricultural applications, the 08084000 Series 24V 250-350A 2-Pole Heavy-Duty

 Battery Disconnect Switch features high-performance materials that stand up to harsh conditions.

All models of the master battery disconnect switch meet IP67/X9K standards

 for protection against dust, temporary immersion in water, and close-range

high-temperature, high-pressure spray downs.

In addition, this double-pole battery disconnect switch features a Smartkey design, which lets the operator choose between using the disconnect with a removable or fixed handle.

To match the needs of various commercial vehicle applications, the 24V battery disconnect switch is available in 250A models with or without a block on the key and in a 350A model with a block on the key.

Features and Benefits

• 24V battery disconnect switch is available with a maximum continuous current
• rating of 250A or 350A, making it ideal for commercial vehicles
•

• Made with high-performance materials for resistance to high temperatures
•  and chemical and atmospheric agents
•

• Designed to meet IP67/X9K standards for protection against dust, temporary immersion
•  in water, and close-range high-temperature, high-pressure spray downs
•

• Double-pole, single-throw (DPST) circuitry
•

• Smartkey allows the operator to make the handle removable or fixed,
•  locking it in either the OFF or ON position
•

• Tethered rubber cap prevents liquids and powders from getting inside the
•

• heavy-duty battery disconnect switch when the handle is pulled out of the handle hole
•

• Select models include a safety block button that must be pushed to operate the key
•

Applications

• Off-Road and Heavy Trucks
• Mining and Material Handling
• Construction and Agriculture
• Emergency Vehicles
• Marine

Catalog #	Current Rating (Continuous) in Amps	Current Rating (Inrush) in Amps	Voltage Rating Max	Circuitry	Ingress Protection	Actuator	Actuator Details	Contact Material	Housing	Recommended Torque	Samples	Compare
08084000	250	1000	24	DPST	IP67, IP69K	Red T-Handle	Removable			18±4 Nm	Order
08084000-BX											Order
08084300	250	1000	24	DPST	IP67, IP69K	Red T-Handle	Removable	Silver Plated Copper	Engineering Thermoplastic	18±4 Nm	Order
08084300-BX											Order
08084400-BX											Order
08084400 Replaced By:08084400	500	1500	24	DPST	IP67, IP69K	Red T-Handle	Removable	Silver Plated Copper	Engineering Thermoplastic	20±4 Nm
08084500	350	1000	24	DPST	IP67, IP69K	Red T-Handle	Removable			20±4 Nm	Order
10846200
08084100 Obsolete: 2020 -01-17	500	1500	24	DPST	IP67, IP69K	Red T-Handle	Removable			20±4 Nm
08084200 Obsolete: 2020 -01-17	350	1000	24	DPST	IP67, IP69K	Red T-Handle	Removable			20±4 Nm
