08098500 Series > 배터리스위치/센서

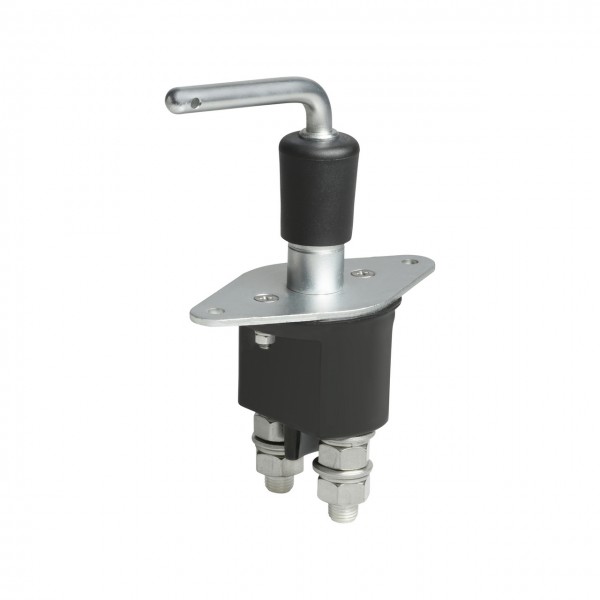

Whether you're looking for a simple-to-operate emergency power cutoff switch or a secure battery

 disconnect that can only be used by authorized personnel, the 08098800 Series 24-28V SPST

 Manual Master Battery Disconnect Switch makes it easy to find the right style of manual

 disconnect for your application.

Thanks to a wide range of available actuators, including fixed lever, removable lever,

push-button knob, fixed key, or removable key, the single-pole, single-throw switch

can be used in a wide variety of vehicles and equipment.

Select models of the IP65 or IP67-rated water-resistant battery cutoff switch come with

an added weather-protective boot, giving them an IP69K rating that makes them better

suited for wet environments.

Models with M12 studs are rated for 350A continuous current, while models

with M10 studs are rated for 250A continuous current.

Features and Benefits

• Available with M12 studs with a 350A continuous current rating
• or M10 studs with a 250A continuous current rating
•

• Configurations are available with a fixed lever, removable lever, push-button knob,
• fixed key, or removable key actuator to suit different applications
•

• All models meet IP65 or IP67 dust-tight, water-resistant standards, while select models of the
•  manual disconnect switch include a weather-protective boot to meet IP69K standards

Applications

• Heavy-Duty Trucks and Off-Road Vehicles
•

• Material Handling, Mining, and Construction
•

• Emergency Vehicles
•

• Agricultural
•

• Marine
•

Catalog # Current Rating (Continuous) in Amps Current Rating (Inrush) in Amps Voltage Rating Max Circuitry Ingress Protection Actuator Actuator Details Contact Material Housing Intermittent time Mounting Method Recommended Torque Agency Approval - Humidity Samples Compare 08098300 250 2500 12 IP65 22±11 Nm Order 08098400 250 2500 24 SPST IP65 Red Knob Silver Plated Copper Plated Steel Housing Plastic Base 22±11 Nm Order 08098400-BX 250 2500 24 SPST IP65 Red Knob Push to Off Silver Plated Copper Plated Steel Housing Plastic Base 3 Flange Order 08098500 350 2500 12 IP65 20±11 Nm Order 08098600 350 2500 12 IP65 20±11 Nm Order 08098800 250 2500 24 SPST IP65, IP69K Metal Handle Removable Silver Plated Copper Plated Steel Housing Plastic Base 3 Flange 22±11 Nm Order 08098800-BX 250 2500 24 SPST IP65, IP69K Metal Handle Removable Silver Plated Copper Plated Steel Housing Plastic Base 3 Flange 22±11 Nm Order 08098880 250 2500 24 SPST IP65 Metal Handle Removable w/Gasket – Chain 22±11 Nm 2500 Order 08098881 250 2500 24 SPST IP67, IP69K Metal Handle Removable w/Chain – Boot Silver Plated Copper Plated Steel Housing Plastic Base 22±11 Nm Order 08098881-BX 250 2500 24 SPST IP65, IP69K Removable Metal Handle Removable w/Chain – Boot Silver Plated Copper Plated Steel Housing Plastic Base Flange 22±11 Nm Order 08098882 250 2500 24 SPST IP67, IP69K Metal Handle w/Boot Silver Plated Copper Plated Steel Housing Plastic Base 22±11 Nm 08098882-BX 250 2500 24 SPST IP67, IP69K Metal Handle w/Boot Silver Plated Copper Plated Steel Housing Plastic Base 22±11 Nm Order 08098883 250 2500 24 SPST IP67, IP69K Metal Handle Removable w/Chain – Cap 22±11 Nm 2500 Order 08098892 08098900 350 2500 24 SPST IP65 Metal Handle Removable Silver Plated Copper Plated Steel Housing Plastic Base 20±11 Nm Order 08098900-BX 350 2500 24 SPST IP65 Metal Handle Removable Silver Plated Copper Plated Steel Housing Plastic Base 3 20±11 Nm Order 08098980 350 2500 24 SPST IP67, IP69K Metal Handle w/Gasket – Chain Silver Plated Copper Plated Steel Housing Plastic Base 20±11 Nm 2500 Order 08098980-BX 350 2500 24 SPST IP67, IP69K Metal Handle w/Gasket – Chain Silver Plated Copper Plated Steel Housing Plastic Base Flange 20±11 Nm Order 08098981 350 2500 24 SPST IP67, IP69K Metal Handle Silver Plated Copper Plated Steel Housing Plastic Base 20±11 Nm Order 08098981-BX 350 2500 24 SPST IP67, IP69K Metal Handle Silver Plated Copper Plated Steel Housing Plastic Base 3 Flange 20±11 Nm Order
