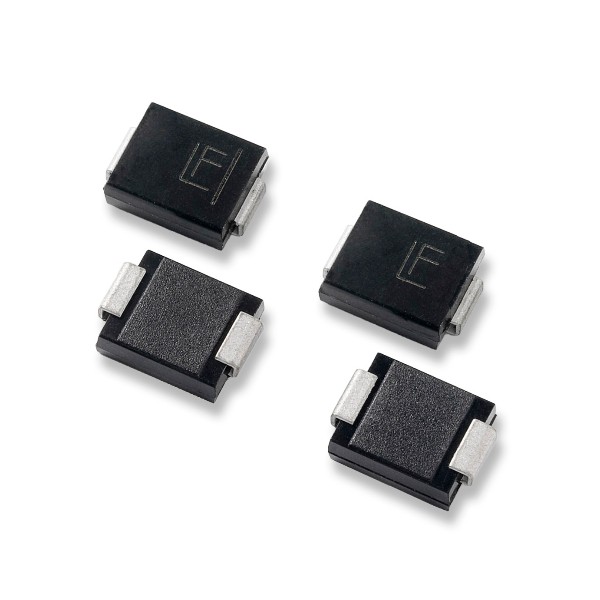

1.5SMC > TVS Diodes

The 1.5SMC series is designed specifically to protect sensitive electronic equipment

from voltage transients induced by lightning and other transient voltage events.

Features & Benefits:

• 1500W peak pulse power capability at 10/1000μs waveform,
• repetition rate (duty cycles): 0.01%
• Excellent clamping capability
• Low incremental surge resistance
• Typical I_R less than 1μA when V_BR min>12V
• For surface mounted applications to optimize board space
• Low profile package
• Built-in strain relief
• Typical failure mode is short from over-specified voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
• IEC 61000-4-2 ESD 30kV(Air), 30kV (Contact)
• ESD protection of data lines in accordance with IEC 61000-4-2
• EFT protection of data lines in accordance with IEC 61000-4-4
• Fast response time: typically less than 1.0ps from 0V to BV min
• Glass passivated chip junction
• High temperature to reflow soldering guaranteed: 260°C/30sec
• V_BR @ T_J= V_BR@25°C x (1+αT x (T_J - 25))(αT:Temperature Coefficient, typical value is 0.1%)
• Plastic package is flammability rated V-0 per Underwriters Laboratories
• Meet MSL level1, per J-STD-020, LF maximum peak of 260°C
• Matte tin lead–free plated
• Halogen free and RoHS compliant
• Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is
• tin(Sn) (IPC/JEDEC J-STD-609A.01)

Applications:

TVS devices are ideal for the protection of I/O Interfaces, V_CC bus

and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

Catalog #	VR (Vso)	Watts (W)	IPP 10x1000μs (A)	MIN VBR@IT (V)	MAX VBR@IT (V)	Vc (V)	IT (mA)	Ir@Vso (μA)	Max Temp (deg C)	Stock	Samples	Compare
1.5SMC10	8.55	1500	104.8	9	11	15.225	1	10	150	Check	Order
1.5SMC100	85.5	1500	11.1	90	110	143.85	1	1	150	Check	Order
1.5SMC100A	85.5	1500	11.1	95	105	137	1	1	150	Check	Order
1.5SMC100C	85.5	1500	11.1	90	110	143.85	1	1	150	Check	Order
1.5SMC100CA	85.5	1500	11.1	95	105	137	1	1	150	Check	Order
1.5SMC10A	8.55	1500	104.8	9.5	10.5	14.5	1	10	150	Check	Order
1.5SMC10C	8.55	1500	104.8	9	11	15.225	1	10	150	Check	Order
1.5SMC10CA	8.55	1500	104.8	9.5	10.5	14.5	1	10	150	Check	Order
1.5SMC11	9.4	1500	97.4	9.945	12.155	16.38	1	5	150	Check	Order
1.5SMC110	94	1500	10	99.45	121.55	159.6	1	1	150	Check	Order
1.5SMC110A	94	1500	10	105	116	152	1	1	150	Check	Order
1.5SMC110C	94	1500	10	99.45	121.55	159.6	1	1	150	Check	Order
1.5SMC110CA	94	1500	10	105	116	152	1	1	150	Check	Order
1.5SMC11A	9.4	1500	97.4	10.5	11.6	15.6	1	5	150	Check	Order
1.5SMC11C	9.4	1500	97.4	9.945	12.155	16.38	1	5	150	Check	Order
1.5SMC11CA	9.4	1500	97.4	10.5	11.6	15.6	1	5	150	Check	Order
1.5SMC12	10.2	1500	91	10.8	13.2	17.535	1	5	150	Check	Order
1.5SMC120	102	1500	9.2	108	132	173.25	1	1	150	Check	Order
1.5SMC120A	102	1500	9.2	114	126	165	1	1	150	Check	Order
1.5SMC120C	102	1500	9.2	108	132	173.25	1	1	150	Check	Order
1.5SMC120CA	102	1500	9.2	114	126	165	1	1	150	Check	Order
1.5SMC12A	10.2	1500	91	11.4	12.6	16.7	1	5	150	Check	Order
1.5SMC12C	10.2	1500	91	10.8	13.2	17.535	1	5	150	Check	Order
1.5SMC12CA	10.2	1500	91	11.4	12.6	16.7	1	5	150	Check	Order
1.5SMC13	11.1	1500	83.5	11.745	14.355	19.11	1	1	150	Check	Order
1.5SMC130	111	1500	8.5	117.45	143.55	187.95	1	1	150	Check	Order
1.5SMC130A	111	1500	8.5	124	137	179	1	1	150	Check	Order
1.5SMC130C	111	1500	8.5	117.45	143.55	187.95	1	1	150	Check	Order
1.5SMC130CA	111	1500	8.5	124	137	179	1	1	150	Check	Order
1.5SMC13A	11.1	1500	83.5	12.4	13.7	18.2	1	1	150	Check	Order
1.5SMC13C	11.1	1500	83.5	11.745	14.355	19.11	1	1	150	Check	Order
1.5SMC13CA	11.1	1500	83.5	12.4	13.7	18.2	1	1	150	Check	Order
1.5SMC15	12.8	1500	71.7	13.545	16.555	22.26	1	1	150	Check	Order
1.5SMC150	128	1500	7.3	135.45	165.55	217.35	1	1	150	Check	Order
1.5SMC150A	128	1500	7.3	143	158	207	1	1	150	Check	Order
1.5SMC150C	128	1500	7.3	135.45	165.55	217.35	1	1	150	Check	Order
1.5SMC150CA	128	1500	7.3	143	158	207	1	1	150	Check	Order
1.5SMC15A	12.8	1500	71.7	14.3	15.8	21.2	1	1	150	Check	Order
1.5SMC15C	12.8	1500	71.7	13.545	16.555	22.26	1	1	150	Check	Order
1.5SMC15CA	12.8	1500	71.7	14.3	15.8	21.2	1	1	150	Check	Order
1.5SMC16	13.6	1500	67.6	14.4	17.6	23.625	1	1	150	Check	Order
1.5SMC160	136	1500	6.9	144	176	229.95	1	1	150	Check	Order
1.5SMC160A	136	1500	6.9	152	168	219	1	1	150	Check	Order
1.5SMC160C	136	1500	6.9	144	176	229.95	1	1	150	Check	Order
1.5SMC160CA	136	1500	6.9	152	168	219	1	1	150	Check	Order
1.5SMC16A	13.6	1500	67.6	15.2	16.8	22.5	1	1	150	Check	Order
1.5SMC16C	13.6	1500	67.6	14.4	17.6	23.625	1	1	150	Check	Order
1.5SMC16CA	13.6	1500	67.6	15.2	16.8	22.5	1	1	150	Check	Order
1.5SMC170	145	1500	6.5	153.45	187.55	245.7	1	1	150	Check	Order
1.5SMC170A	145	1500	6.5	162	179	234	1	1	150	Check	Order
1.5SMC170C	145	1500	6.5	153.45	187.55	245.7	1	1	150	Check	Order
1.5SMC170CA	145	1500	6.5	162	179	234	1	1	150	Check	Order
1.5SMC18	15.3	1500	60.3	16.2	19.8	26.46	1	1	150	Check	Order
1.5SMC180	154	1500	6.2	162	198	258.3	1	1	150	Check	Order
1.5SMC180A	154	1500	6.2	171	189	246	1	1	150	Check	Order
1.5SMC180C	154	1500	6.2	162	198	258.3	1	1	150	Check	Order
1.5SMC180CA	154	1500	6.2	171	189	246	1	1	150	Check	Order
1.5SMC18A	15.3	1500	60.3	17.1	18.9	25.2	1	1	150	Check	Order
1.5SMC18C	15.3	1500	60.3	16.2	19.8	26.46	1	1	150	Check	Order
1.5SMC18CA	15.3	1500	60.3	17.1	18.9	25.2	1	1	150	Check	Order
1.5SMC20	17.1	1500	54.9	18	22	29.085	1	1	150	Check	Order
1.5SMC200	171	1500	5.5	180	220	287.7	1	1	150	Check	Order
1.5SMC200A	171	1500	5.5	190	210	274	1	1	150	Check	Order
1.5SMC200C	171	1500	5.5	180	220	287.7	1	1	150	Check	Order
1.5SMC200CA	171	1500	5.5	190	210	274	1	1	150	Check	Order
1.5SMC20A	17.1	1500	54.9	19	21	27.7	1	1	150	Check	Order
1.5SMC20C	17.1	1500	54.9	18	22	29.085	1	1	150	Check	Order
1.5SMC20CA	17.1	1500	54.9	19	21	27.7	1	1	150	Check	Order
1.5SMC22	18.8	1500	49.7	19.8	24.2	32.13	1	1	150	Check	Order
1.5SMC220	185	1500	4.6	198	242	344.4	1	1	150	Check	Order
1.5SMC220A	185	1500	4.6	209	231	328	1	1	150	Check	Order
1.5SMC220C	185	1500	4.6	198	242	344.4	1	1	150	Check	Order
1.5SMC220CA	185	1500	4.6	209	231	328	1	1	150	Check	Order
1.5SMC22A	18.8	1500	49.7	20.9	23.1	30.6	1	1	150	Check	Order
1.5SMC22C	18.8	1500	49.7	19.8	24.2	32.13	1	1	150	Check	Order
1.5SMC22CA	18.8	1500	49.7	20.9	23.1	30.6	1	1	150	Check	Order
1.5SMC24	20.5	1500	45.8	21.6	26.4	34.86	1	1	150	Check	Order
1.5SMC24A	20.5	1500	45.8	22.8	25.2	33.2	1	1	150	Check	Order
1.5SMC24C	20.5	1500	45.8	21.6	26.4	34.86	1	1	150	Check	Order
1.5SMC24CA	20.5	1500	45.8	22.8	25.2	33.2	1	1	150	Check	Order
1.5SMC250	214	1500	4.4	225	275	361.2	1	1	150	Check	Order
1.5SMC250A	214	1500	4.4	237	263	344	1	1	150	Check	Order
1.5SMC250C	214	1500	4.4	225	275	361.2	1	1	150	Check	Order
1.5SMC250CA	214	1500	4.4	237	263	344	1	1	150	Check
