Sealed In-Line ATO & MINI Fuse Holders Series > 휴즈홀더

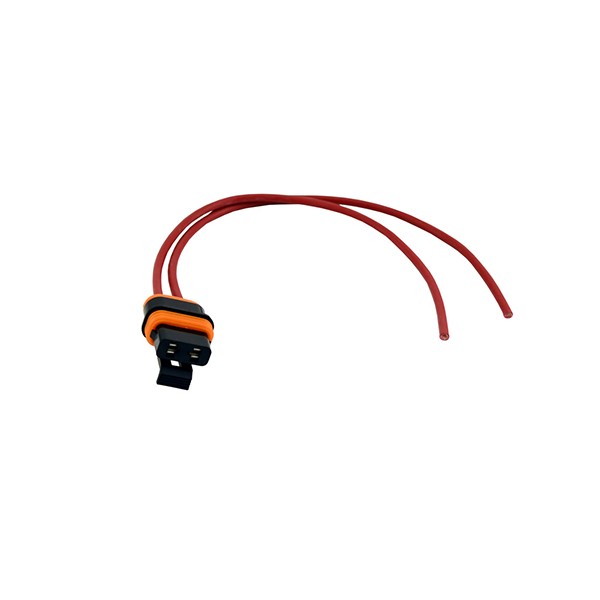

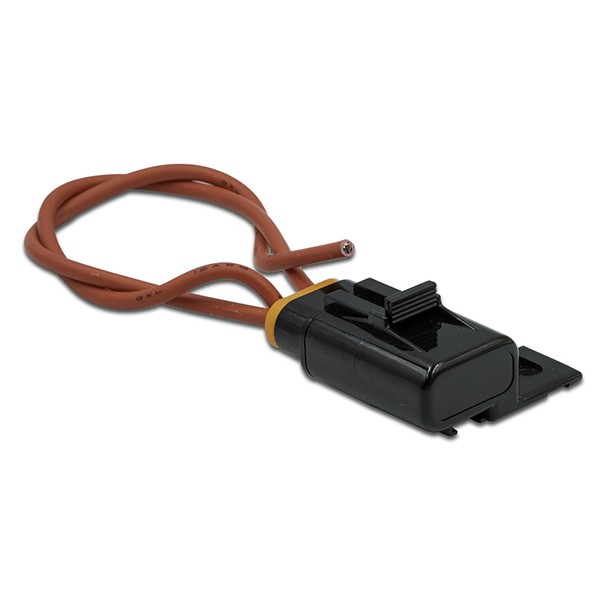

Sealed In-line ATO and MINI fuse holders are designed to allow easy installation of fusing into potentially wet or dirty environments outside of the cab. Use with ATO fuses 1-30A or MINI fuses 2-30A. Comes with twin 8” red GXL wire leads for easy in-line installation.

Features and Benefits

• Rated IP67 with sealed cover for moisture & dust resistance

• Includes two 8” Red GXL wire leads for easy in-line installation

Specifications

Max Voltage: 32V DC

Available Fuse Rating: 1-30A

Ingress Protection: IP67

Operating Temp: -40° to 85° C

Catalog #	Mounting Method	Fuse Type	Current Rating (Max)	Current Rating (Continuous) in Amps	Voltage Rating Max	Wire size	Ingress Protection	Temperature Maximum Celsius	Temperature Minimum Celsius	Ignition protection	Input Terminals	Samples	Compare
FHAS100	In-Line Fuse Holder	ATO	30		32	12	IP67	85	-40	V-2		Order
FHAS100-BP	In-Line Fuse Holder	ATO	30		32	12	IP67	85	-40	V-2		Order
FHAS101	In-Line Fuse Holder	ATO	20		32	14	IP67	85	-40	V-2		Order
FHMS200	In-Line Fuse Holder	MINI	30	22	32	12	IP67	85	-40	V-2	Blade	Order
FHMS200-BP	In-Line Fuse Holder	MINI	30	22	32	12	IP67	85	-40	V-2	Blade	Order
FHMS201	In-Line Fuse Holder	MINI	20	15	32	14	IP67	85	-40	V-2	Blade	Order
SFHA0001ZXJ												Order

Applications

• Local circuit protection outside of cab

• External accessory lighting
