SD ATO® Series > 휴즈홀더

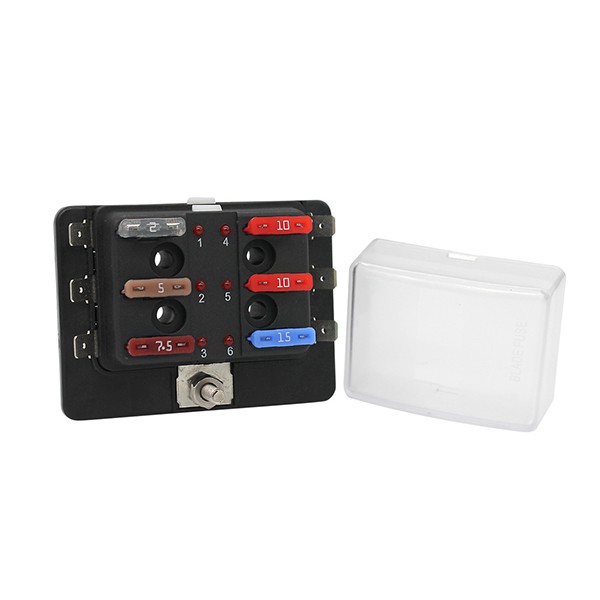

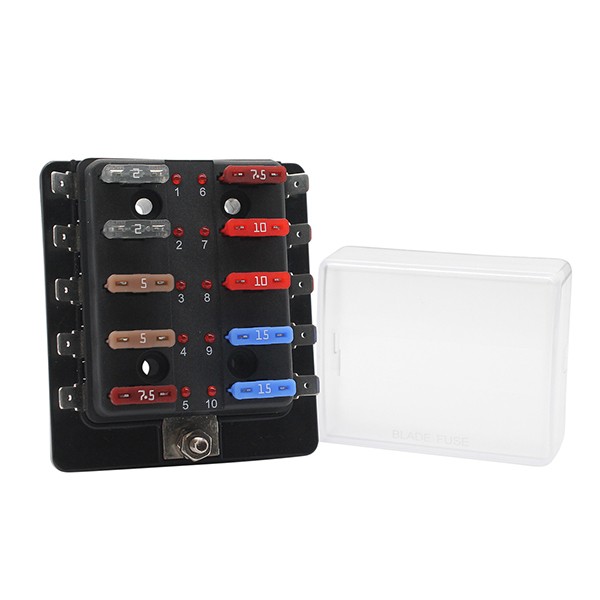

SD ATO^® Fuse Blocks provide a cost effective, consolidated circuit protection solution. Designed to accept standard ATO^® fuses, these products ensure the safe distribution of power throughout an application. Integrated LED blown fuse indicators allow for quick maintenance, preventing troubleshooting & equipment downtime. These products are RoHS compliant. Fuses sold seperately.

Features

• LED blown fuse indicators

• Snap-on insulating cover (included)

Benefits

• Centralizes wiring to a convenient location

• Insulating cover provides circuitry protection

• Continuous current rating of 100A

Applications

• Centralized distribution for accessory circuits

• Ideal solution for DIY projects

Catalog #	Mounting Method	Fuse Type	Current Rating (Max)	Voltage Rating Max	Temperature Maximum Celsius	Temperature Minimum Celsius	Recommended Torque	Input Terminals	Output Terminals	Samples	Compare
880021	Bolt-Down	ATO	100	32	85	-20	8 in-lb (0.9Nm)	10-32 Stud	6.3mm Blade	Order
880021-BP	Bolt-Down	ATO	100	32	85	-20	8 in-lb (0.9Nm)	10-32 Stud	6.3mm Blade	Order
880022	Bolt-Down	ATO	100	32	85	-20	8 in-lb (0.9Nm)	10-32 Stud	6.3mm Blade	Order
880022-BP	Bolt-Down	ATO	100	32	85	-20	8 in-lb (0.9Nm)	10-32 Stud	6.3mm Blade	Order
880023	Bolt-Down	ATO	100	32	85	-20	8 in-lb (0.9Nm)	10-32 Stud	6.3mm Blade	Order
880023-BP	Bolt-Down	ATO	100	32	85	-20	8 in-lb (0.9Nm)	10-32 Stud	6.3mm Blade	Order
