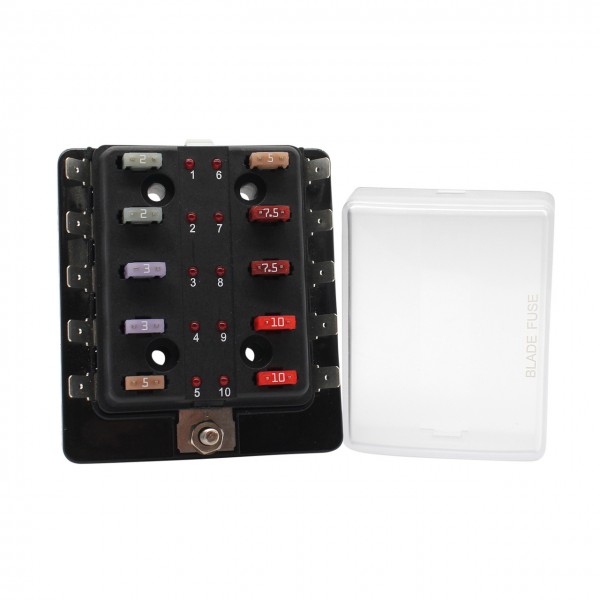

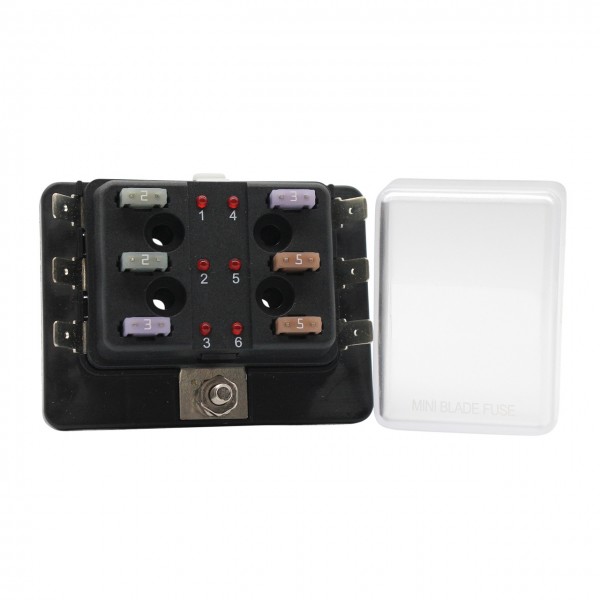

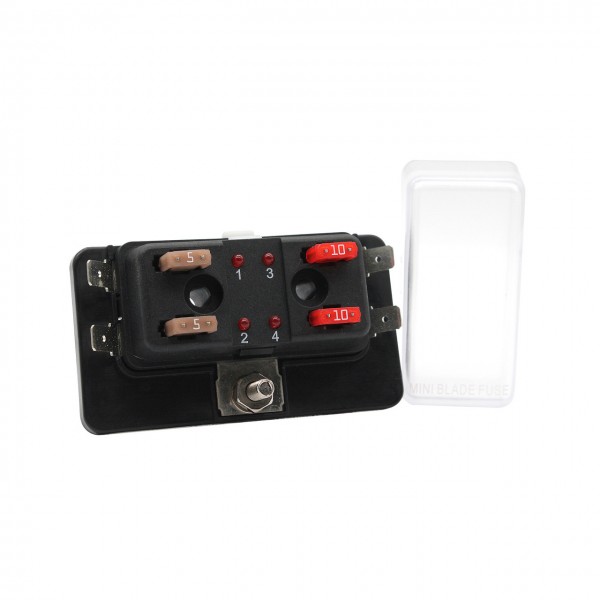

SD MINI® Fuse Blocks provide a cost effective, consolidated circuit protection solution. Designed to accept standard MINI® fuses, these products ensure the safe distribution of power throughout an application. Integrated LED blown fuse indicators allow for quick maintenance, preventing troubleshooting & equipment downtime. These products are RoHS compliant. Fuses sold separately.
Features
• LED blown fuse indicators
• Snap-on insulating cover (included)
Benefits
• Centralizes wiring to a convenient location
• Insulating cover provides circuitry protection
• Continuous current rating of 100A
Applications
• Centralized distribution for accessory circuits
• Ideal solution for DIY projects
| Catalog # | Mounting Method | Fuse Type | Current Rating (Max) | Voltage Rating Max | Temperature Maximum Celsius | Temperature Minimum Celsius | Recommended Torque | Input Terminals | Output Terminals | Samples | Compare |
|---|
 |  | | | | | | | | | | |
| 880024 | Bolt-Down | MINI | 100 | 32 | 85 | -20 | 8 in-lb (0.9Nm) | 10-32 Stud | 6.3mm Blade | Order | |
| 880024-BP | Bolt-Down | MINI | 100 | 32 | 85 | -20 | 8 in-lb (0.9Nm) | 10-32 Stud | 6.3mm Blade | Order | |
| 880025 | Bolt-Down | MINI | 100 | 32 | 85 | -20 | 8 in-lb (0.9Nm) | 10-32 Stud | 6.3mm Blade | Order | |
| 880025-BP | Bolt-Down | MINI | 100 | 32 | 85 | -20 | 8 in-lb (0.9Nm) | 10-32 Stud | 6.3mm Blade | Order | |
| 880026 | Bolt-Down | MINI | 100 | 32 | 85 | -20 | 8 in-lb (0.9Nm) | 10-32 Stud | 6.3mm Blade | Order | |
| 880026-BP | Bolt-Down | MINI | 100 | 32 | 85 | -20 | 8 in-lb (0.9Nm) | 10-32 Stud | 6.3mm Blade | Order | |
