ZCASE® BMZB Series > 휴즈홀더

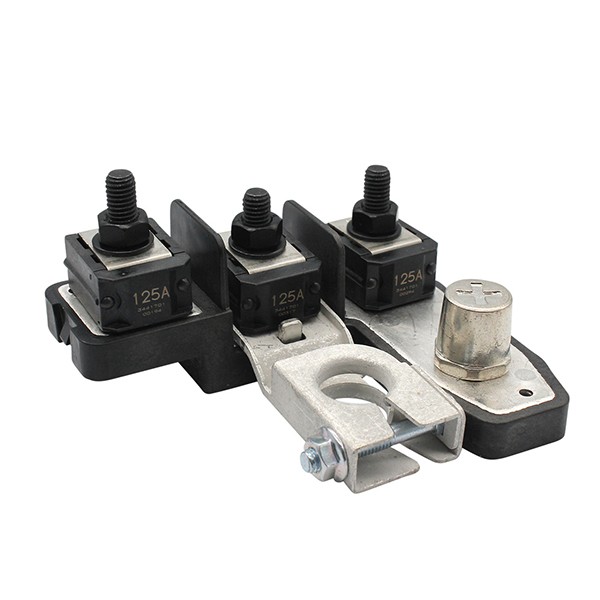

The Battery Mount ZCASE® Fuse Holder with Busbar (BMZB) series allows you to mount fusing directly to a post-style battery terminal. This series offers a compact solution with an integrated busbar, which consolidates complex wiring around a battery system, eliminating or reducing the need for additional wiring.

By creating additional fusing locations outside of the main fuse box, these products help reduce cabling and assembly time and provide localized circuit protection without modifying the existing battery harness.

This product is designed to mate with M6 ZCASE® fuses, and is rated to operate with fuse ratings up to 400A. This series mounts directly to the battery post with all necessary hardware coming pre-assembled. Available in 2-, 3-, and 4-position configurations, this series serves as a scalable circuit protection solution.

Features and Benefits

• Specifically designed to relocate circuit protection closer to a vehicle battery
• Integrated busbar
• Plastic cover and overmolded housing
• Battery clamp oriented to provide clearance for wire routing

Applications

• Battery-Mounted Circuit Protection
• Secondary Circuit Protection for Applications and Motors Such as Trucks and Snow Plows
• Best Used for Hydraulics, Electric Pumps, or Other Secondary Motors

Access specifications, certifications, check availability and order parts below

Catalog #	Mounting Method	Fuse Type	Current Rating (Continuous) in Amps	Voltage Rating Max	Temperature Maximum Celsius	Temperature Minimum Celsius	Recommended Torque	Agency Approval - Shock	Agency Approval - Vibration	Input Terminals	Output Terminals	Samples	Compare
FHZ210	Clamp	ZCASE	400	32	85	-40	5.4Nm ± 0.9Nm at 540rpm	ISO 16750-1, 3	ISO 16750-1, 3	Negative Battery Post	M8	Order
FHZ310	Clamp	ZCASE	600	32	85	-40	5.4Nm ± 0.9Nm at 540rpm	ISO 16750-1, 3	ISO 16750-1, 3	Positive Battery Post	M8	Order
FHZ410	Bolt-Down	ZCASE	400	32	85	-40	14Nm ± 2Nm	ISO 16750-1, 3	ISO 16750-1, 3	Battery Post	M8	Order
