SMDJ-HR > TVS Diodes

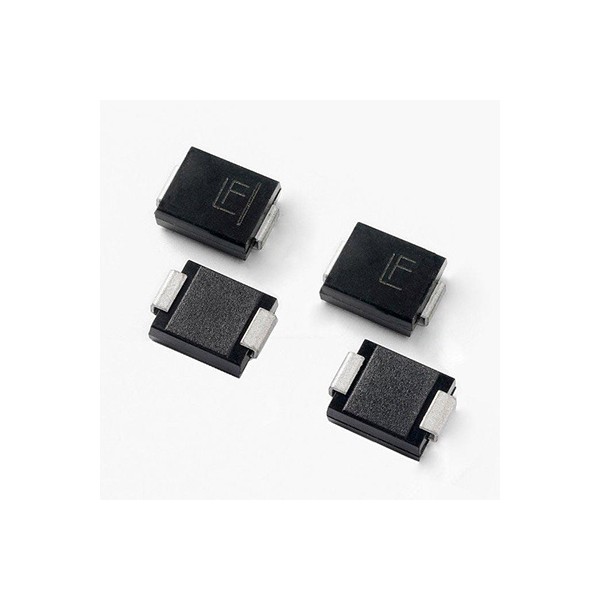

Surface Mount, 3000W, High Reliability Series

VR (Vso): 100, 10, 110, 11, 120, 12, 130, 13, 14, 15

Watts (W): 3000

IPP 10x1000μs (A): 18.5, 176.5, 16.9, 164.8, 15.5, 150.8, 14.4, 139.5, 129.3, 123

They have been specially screened and sorted for use in DC line protection in aviation electronics (avionics)

and other applications that demand high reliability.

이 제품은 항공 전자 제품 (항공 전자 장비)의 DC 라인 보호 및 높은 신뢰성이 요구되는

기타 어플리케이션에 사용하기 위해 특별히 차폐 및 분류되었습니다.

In addition to components with customizable upscreening and sorting process flows,

four “off-the-shelf” High-Reliability TVS Diodes series are available:

Features 풍모:

Military screening process flow 군사 심사 과정 흐름

Flexible selection of high reliability sorting flows, which can be customized on request

요청 시 사용자 정의 할 수 있는 고 신뢰성 정렬 플로우의 유연한 선택

Standard voltage ranges and power ratings are offered (SMCJ and SMDJ Series)

표준 전압 범위 및 정격 전력 제공 (SMCJ 및 SMDJ 시리즈)

Applications 응용 분야 :

- - - Fly-by-wire flight control - Fly-by-wire 비행 제어

- - - Engine control - 엔진 제어

- - - Power supply/distribution - 전원 공급 / 분배

- - - Cockpit electronic equipment and displays - 조종실 전자 장비 및 디스플레이

- - - Air conditioning - 에어컨

- - - On-board infotainment systems - 온보드 인포테인먼트 시스템

- - - Radar systems - 레이더 시스템

- - - Advanced airborne digital computers - 고급 항공 디지털 컴퓨터

- - - Airfield lighting - 비행장 조명

---  Military 군

--- Industrial 산업

--- Medical 의료

Catalog # VR (Vso) Watts (W) IPP 10x1000μs (A) MIN VBR@IT (V) MAX VBR@IT (V) Vc (V) IT (mA) Ir@Vso (μA) Max Temp (deg C) Stock Samples Compare SMDJ100A-HR 100 3000 18.5 111 123 162 1 2 150 Check Order SMDJ10A-HR 10 3000 176.5 11.1 12.3 17 1 5 150 Check Order SMDJ10CA-HR 10 3000 176.5 11.1 12.3 17 1 5 150 Check Order SMDJ110A-HR 110 3000 16.9 122 135 177 1 2 150 Check Order SMDJ11A-HR 11 3000 164.8 12.2 13.5 18.2 1 2 150 Check Order SMDJ11CA-HR 11 3000 164.8 12.2 13.5 18.2 1 2 150 Check Order SMDJ120A-HR 120 3000 15.5 133 147 193 1 2 150 Check Order SMDJ12A-HR 12 3000 150.8 13.3 14.7 19.9 1 2 150 Check Order SMDJ12CA-HR 12 3000 150.8 13.3 14.7 19.9 1 2 150 Check Order SMDJ130A-HR 130 3000 14.4 144 159 209 1 2 150 Check Order SMDJ13A-HR 13 3000 139.5 14.4 15.9 21.5 1 2 150 Check Order SMDJ13CA-HR 13 3000 139.5 14.4 15.9 21.5 1 2 150 Check Order SMDJ14A-HR 14 3000 129.3 15.6 17.2 23.2 1 2 150 Check Order SMDJ14CA-HR 14 3000 129.3 15.6 17.2 23.2 1 2 150 Check Order SMDJ15A-HR 15 3000 123 16.7 18.5 24.4 1 2 150 Check Order SMDJ15CA-HR 15 3000 123 16.7 18.5 24.4 1 2 150 Check Order SMDJ16A-HR 16 3000 115.4 17.8 19.7 26 1 2 150 Check Order SMDJ16CA-HR 16 3000 115.4 17.8 19.7 26 1 2 150 Check Order SMDJ17A-HR 17 3000 108.7 18.9 20.9 27.6 1 2 150 Check Order SMDJ17CA-HR 17 3000 108.7 18.9 20.9 27.6 1 2 150 Check Order SMDJ18A-HR 18 3000 102.7 20 22.1 29.2 1 2 150 Check Order SMDJ18CA-HR 18 3000 102.7 20 22.1 29.2 1 2 150 Check Order SMDJ20A-HR 20 3000 92.6 22.2 24.5 32.4 1 2 150 Check Order SMDJ20CA-HR 20 3000 92.6 22.2 24.5 32.4 1 2 150 Check Order SMDJ22A-HR 22 3000 84.5 24.4 26.9 35.5 1 2 150 Check Order SMDJ22CA-HR 22 3000 84.5 24.4 26.9 35.5 1 2 150 Check Order SMDJ24A-HR 24 3000 77.1 26.7 29.5 38.9 1 2 150 Check Order SMDJ24CA-HR 24 3000 77.1 26.7 29.5 38.9 1 2 150 Check Order SMDJ26A-HR 26 3000 71.3 28.9 31.9 42.1 1 2 150 Check Order SMDJ26CA-HR 26 3000 71.3 28.9 31.9 42.1 1 2 150 Check Order SMDJ28A-HR 28 3000 66.1 31.1 34.4 45.4 1 2 150 Check Order SMDJ28CA-HR 28 3000 66.1 31.1 34.4 45.4 1 2 150 Check Order SMDJ30A-HR 30 3000 62 33.3 36.8 48.4 1 2 150 Check Order SMDJ30CA-HR 30 3000 62 33.3 36.8 48.4 1 2 150 Check Order SMDJ33A-HR 33 3000 56.3 36.7 40.6 53.3 1 2 150 Check Order SMDJ33CA-HR 33 3000 56.3 36.7 40.6 53.3 1 2 150 Check Order SMDJ36A-HR 36 3000 51.6 40 44.2 58.1 1 2 150 Check Order SMDJ36CA-HR 36 3000 51.6 40 44.2 58.1 1 2 150 Check Order SMDJ40A-HR 40 3000 46.5 44.4 49.1 64.5 1 2 150 Check Order SMDJ40CA-HR 40 3000 46.5 44.4 49.1 64.5 1 2 150 Check Order SMDJ43A-HR 43 3000 43.2 47.8 52.8 69.4 1 2 150 Check Order SMDJ43CA-HR 43 3000 43.2 47.8 52.8 69.4 1 2 150 Check Order SMDJ45A-HR 45 3000 41.3 50 55.3 72.7 1 2 150 Check Order SMDJ45CA-HR 45 3000 41.3 50 55.3 72.7 1 2 150 Check Order SMDJ48A-HR 48 3000 38.8 53.3 58.9 77.4 1 2 150 Check Order SMDJ48CA-HR 48 3000 38.8 53.3 58.9 77.4 1 2 150 Check Order SMDJ5.0A-HR 5 3000 326.1 6.4 7 9.2 10 800 150 Check Order SMDJ5.0CA-HR 5 3000 326.1 6.4 7 9.2 10 800 150 Check Order SMDJ51A-HR 51 3000 36.4 56.7 62.7 82.4 1 2 150 Check Order SMDJ51CA-HR 51 3000 36.4 56.7 62.7 82.4 1 2 150 Check Order SMDJ54A-HR 54 3000 34.4 60 66.3 87.1 1 2 150 Check Order SMDJ54CA-HR 54 3000 34.4 60 66.3 87.1 1 2 150 Check Order SMDJ58A-HR 58 3000 32.1 64.4 71.2 93.6 1 2 150 Check Order SMDJ6.0A-HR 6 3000 291.3 6.67 7.37 10.3 10 800 150 Check Order SMDJ6.0CA-HR 6 3000 291.3 6.67 7.37 10.3 10 800 150 Check Order SMDJ6.5A-HR 6.5 3000 267.9 7.22 7.98 11.2 10 500 150 Check Order SMDJ6.5CA-HR 6.5 3000 267.9 7.22 7.98 11.2 10 500 150 Check Order SMDJ60A-HR 60 3000 31 66.7 73.7 96.8 1 2 150 Check Order SMDJ64A-HR 64 3000 29.1 71.1 78.6 103 1 2 150 Check Order SMDJ7.0A-HR 7 3000 250 7.78 8.6 12 10 200 150 Check Order SMDJ7.0CA-HR 7 3000 250 7.78 8.6 12 10 200 150 Check Order SMDJ7.5A-HR 7.5 3000 232.6 8.33 9.21 12.9 1 100 150 Check Order SMDJ7.5CA-HR 7.5 3000 232.6 8.33 9.21 12.9 1 100 150 Check Order SMDJ70A-HR 70 3000 26.5 77.8 86 113 1 2 150 Check Order SMDJ75A-HR 75 3000 24.8 83.3 92.1 121 1 2 150 Check Order SMDJ78A-HR 78 3000 23.8 86.7 95.8 126 1 2 150 Check Order SMDJ8.0A-HR 8 3000 220.6 8.89 9.83 13.6 1 50 150 Check Order SMDJ8.0CA-HR 8 3000 220.6 8.89 9.83 13.6 1 50 150 Check Order SMDJ8.5A-HR 8.5 3000 208.3 9.44 10.4 14.4 1 20 150 Check Order SMDJ8.5CA-HR 8.5 3000 208.3 9.44 10.4 14.4 1 20 150 Check Order SMDJ85A-HR 85 3000 21.9 94.4 104 137 1 2 150 Check
