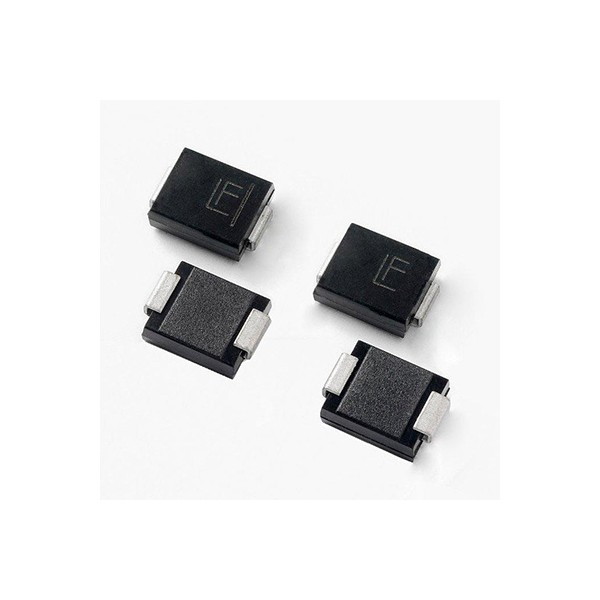

SMDJ-HRA > TVS Diodes

High Reliability Series, Surface Mount 3000W

VR (Vso): 100, 10, 110, 11, 120, 12, 130, 13, 14, 15

Watts (W): 3000

IPP 10x1000μs (A): 18.5, 176.5, 16.9, 164.8, 15.5, 150.8, 14.4, 139.5, 129.3, 123

SMDJ-HRA 고 신뢰성 시리즈는 번개 및 기타 과도 현상으로 인한 과도 전압으로부터

민감한 전자 장비를 보호하도록 특별히 설계되었습니다

voltage events. 전압 이벤트.

These are available with a variety of upscreening options for enhanced reliability.

다양한 안정성을위한 다양한 상향 선택 옵션과 함께 사용할 수 있습니다.

Features 풍모:

High reliability devices with fabrication and assembly lots traceability

제조 및 어셈블리 로트 추적 성을 갖춘 고 신뢰성 디바이스

Enhanced reliability screening options are available in reference to MIL-PRF-19500.

향상된 신뢰성 스크리닝 옵션은 MIL-PRF-19500을 참조하십시오.

Refer to screen process table for more detail on screening options

스크리닝 옵션에 대한 자세한 내용은 화면 프로세스 표를 참조하십시오.

For surface mounted applications in order to optimize board space

보드 공간을 최적화하기 위해 표면 실장 어플리케이션 용

Low profile package 로우 프로파일 패키지

Built-in strain relief 스트레인 릴리프 내장

Typical maximum temperature coefficient ΔVBR

= 0.1% x VBR@25°C x ΔT 일반적인 최대 온도 계수 ΔVBR = 0.1 % x 25 ℃에서의 VBR ΔT

Glass passivated chip junction 유리 부동 태화 된 칩 접합부

3000W peak pulse power capability at 10×1000μs waveform, repetition rate (duty cycles):0.01%

10 × 1000μs 파형에서 3000W 피크 펄스 전력 성능, 반복률 (듀티 사이클) : 0.01 %

Fast response time: typically less than 1.0ps from 0V to BV min

빠른 응답 시간 : 일반적으로 0V에서 BV min까지 1.0ps 미만

Excellent clamping capability 탁월한 클램핑 기능

Low incremental surge resistance 낮은 증분 서지 저항

Typical IR less than 2μA above 12V

12V 이상에서 2μA 미만의 일반적인 IR

High Temperature soldering guaranteed: 260°C/40 seconds at terminals

고온 납땜 보장 : 단자에서 260 ° C / 40 초

Plastic package has underwriters laboratory flammability 94V-O

Matte tin lead–free Plated 매트 무연 무연 도금

Halogen-free and RoHS compliant 할로겐 프리 및 RoHS 준수

Catalog # VR (Vso) Watts (W) IPP 10x1000μs (A) MIN VBR@IT (V) MAX VBR@IT (V) Vc (V) IT (mA) Ir@Vso (μA) Max Temp (deg C) Stock Samples Compare SMDJ100A-HRA 100 3000 18.5 111 123 162 1 2 150 Check Order SMDJ10A-HRA 10 3000 176.5 11.1 12.3 17 1 5 150 Check Order SMDJ10CA-HRA 10 3000 176.5 11.1 12.3 17 1 5 150 Check Order SMDJ110A-HRA 110 3000 16.9 122 135 177 1 2 150 Check Order SMDJ11A-HRA 11 3000 164.8 12.2 13.5 18.2 1 2 150 Check Order SMDJ11CA-HRA 11 3000 164.8 12.2 13.5 18.2 1 2 150 Check Order SMDJ120A-HRA 120 3000 15.5 133 147 193 1 2 150 Check Order SMDJ12A-HRA 12 3000 150.8 13.3 14.7 19.9 1 2 150 Check Order SMDJ12CA-HRA 12 3000 150.8 13.3 14.7 19.9 1 2 150 Check Order SMDJ130A-HRA 130 3000 14.4 144 159 209 1 2 150 Check Order SMDJ13A-HRA 13 3000 139.5 14.4 15.9 21.5 1 2 150 Check Order SMDJ13CA-HRA 13 3000 139.5 14.4 15.9 21.5 1 2 150 Check Order SMDJ14A-HRA 14 3000 129.3 15.6 17.2 23.2 1 2 150 Check Order SMDJ14CA-HRA 14 3000 129.3 15.6 17.2 23.2 1 2 150 Check Order SMDJ15A-HRA 15 3000 123 16.7 18.5 24.4 1 2 150 Check Order SMDJ15CA-HRA 15 3000 123 16.7 18.5 24.4 1 2 150 Check Order SMDJ16A-HRA 16 3000 115.4 17.8 19.7 26 1 2 150 Check Order SMDJ16CA-HRA 16 3000 115.4 17.8 19.7 26 1 2 150 Check Order SMDJ17A-HRA 17 3000 108.7 18.9 20.9 27.6 1 2 150 Check Order SMDJ17CA-HRA 17 3000 108.7 18.9 20.9 27.6 1 2 150 Check Order SMDJ18A-HRA 18 3000 102.7 20 22.1 29.2 1 2 150 Check Order SMDJ18CA-HRA 18 3000 102.7 20 22.1 29.2 1 2 150 Check Order SMDJ20A-HRA 20 3000 92.6 22.2 24.5 32.4 1 2 150 Check Order SMDJ20CA-HRA 20 3000 92.6 22.2 24.5 32.4 1 2 150 Check Order SMDJ22A-HRA 22 3000 84.5 24.4 26.9 35.5 1 2 150 Check Order SMDJ22CA-HRA 22 3000 84.5 24.4 26.9 35.5 1 2 150 Check Order SMDJ24A-HRA 24 3000 77.1 26.7 29.5 38.9 1 2 150 Check Order SMDJ24CA-HRA 24 3000 77.1 26.7 29.5 38.9 1 2 150 Check Order SMDJ26A-HRA 26 3000 71.3 28.9 31.9 42.1 1 2 150 Check Order SMDJ26CA-HRA 26 3000 71.3 28.9 31.9 42.1 1 2 150 Check Order SMDJ28A-HRA 28 3000 66.1 31.1 34.4 45.4 1 2 150 Check Order SMDJ28CA-HRA 28 3000 66.1 31.1 34.4 45.4 1 2 150 Check Order SMDJ30A-HRA 30 3000 62 33.3 36.8 48.4 1 2 150 Check Order SMDJ30CA-HRA 30 3000 62 33.3 36.8 48.4 1 2 150 Check Order SMDJ33A-HRA 33 3000 56.3 36.7 40.6 53.3 1 2 150 Check Order SMDJ33CA-HRA 33 3000 56.3 36.7 40.6 53.3 1 2 150 Check Order SMDJ36A-HRA 36 3000 51.6 40 44.2 58.1 1 2 150 Check Order SMDJ36CA-HRA 36 3000 51.6 40 44.2 58.1 1 2 150 Check Order SMDJ40A-HRA 40 3000 46.5 44.4 49.1 64.5 1 2 150 Check Order SMDJ40CA-HRA 40 3000 46.5 44.4 49.1 64.5 1 2 150 Check Order SMDJ43A-HRA 43 3000 43.2 47.8 52.8 69.4 1 2 150 Check Order SMDJ43CA-HRA 43 3000 43.2 47.8 52.8 69.4 1 2 150 Check Order SMDJ45A-HRA 45 3000 41.3 50 55.3 72.7 1 2 150 Check Order SMDJ45CA-HRA 45 3000 41.3 50 55.3 72.7 1 2 150 Check Order SMDJ48A-HRA 48 3000 38.8 53.3 58.9 77.4 1 2 150 Check Order SMDJ48CA-HRA 48 3000 38.8 53.3 58.9 77.4 1 2 150 Check Order SMDJ5.0A-HRA 5 3000 326.1 6.4 7 9.2 10 800 150 Check Order SMDJ5.0CA-HRA 5 3000 326.1 6.4 7 9.2 10 800 150 Check Order SMDJ51A-HRA 51 3000 36.4 56.7 62.7 82.4 1 2 150 Check Order SMDJ51CA-HRA 51 3000 36.4 56.7 62.7 82.4 1 2 150 Check Order SMDJ54A-HRA 54 3000 34.4 60 66.3 87.1 1 2 150 Check Order SMDJ54CA-HRA 54 3000 34.4 60 66.3 87.1 1 2 150 Check Order SMDJ58A-HRA 58 3000 32.1 64.4 71.2 93.6 1 2 150 Check Order SMDJ6.0A-HRA 6 3000 291.3 6.67 7.37 10.3 10 800 150 Check Order SMDJ6.0CA-HRA 6 3000 291.3 6.67 7.37 10.3 10 800 150 Check Order SMDJ6.5A-HRA 6.5 3000 267.9 7.22 7.98 11.2 10 500 150 Check Order SMDJ6.5CA-HRA 6.5 3000 267.9 7.22 7.98 11.2 10 500 150 Check Order SMDJ60A-HRA 60 3000 31 66.7 73.7 96.8 1 2 150 Check Order SMDJ64A-HRA 64 3000 29.1 71.1 78.6 103 1 2 150 Check Order SMDJ7.0A-HRA 7 3000 250 7.78 8.6 12 10 200 150 Check Order SMDJ7.0CA-HRA 7 3000 250 7.78 8.6 12 10 200 150 Check Order SMDJ7.5A-HRA 7.5 3000 232.6 8.33 9.21 12.9 1 100 150 Check Order SMDJ7.5CA-HRA 7.5 3000 232.6 8.33 9.21 12.9 1 100 150 Check Order SMDJ70A-HRA 70 3000 26.5 77.8 86 113 1 2 150 Check Order SMDJ75A-HRA 75 3000 24.8 83.3 92.1 121 1 2 150 Check Order SMDJ78A-HRA 78 3000 23.8 86.7 95.8 126 1 2 150 Check Order SMDJ8.0A-HRA 8 3000 220.6 8.89 9.83 13.6 1 50 150 Check Order SMDJ8.0CA-HRA 8 3000 220.6 8.89 9.83 13.6 1 50 150 Check Order SMDJ8.5A-HRA 8.5 3000 208.3 9.44 10.4 14.4 1 20 150 Check Order SMDJ8.5CA-HRA 8.5 3000 208.3 9.44 10.4 14.4 1 20 150 Check Order SMDJ85A-HRA 85 3000 21.9 94.4 104 137 1 2 150 Check Order SMDJ9.0A-HRA 9 3000 194.8 10 11.1 15.4 1 10 150 Check Order SMDJ9.0CA-HRA 9 3000 194.8 10 11.1 15.4 1 10 150 Check Order SMDJ90A-HRA 90 3000 20.5 100 111 146 1 2 150 Check Order
