ATO® FH2 Series > 휴즈홀더

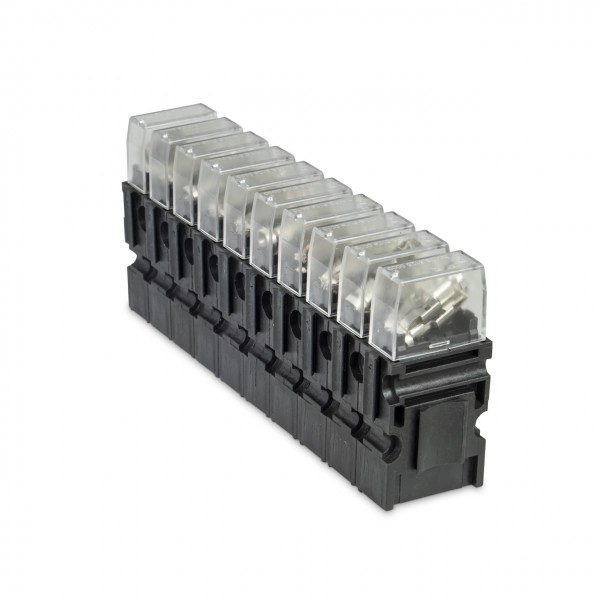

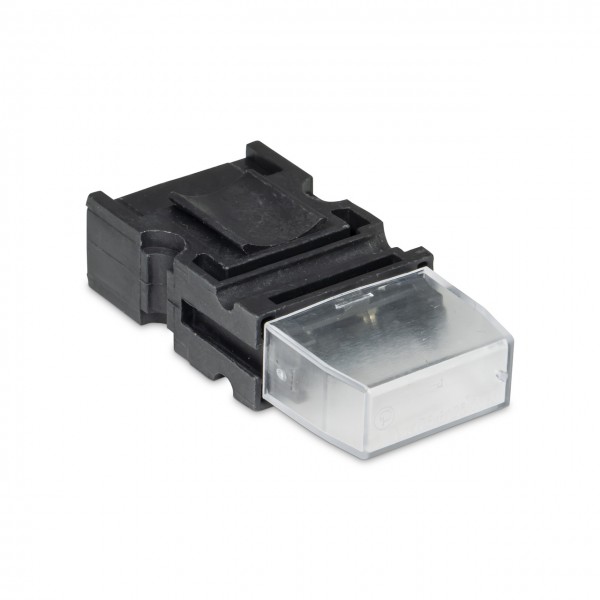

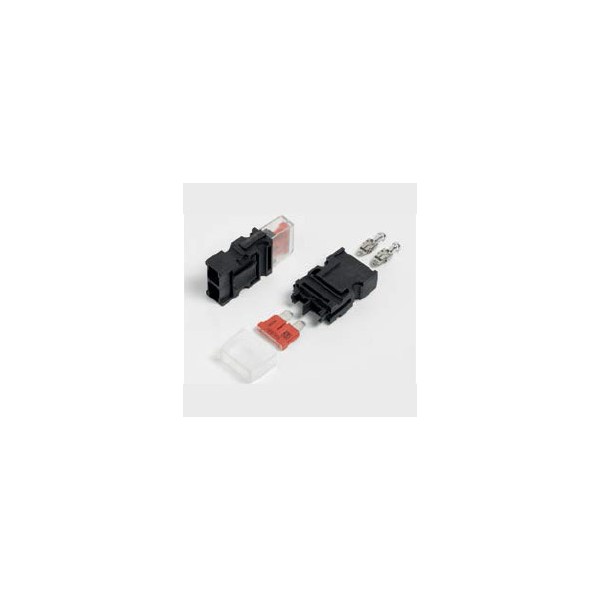

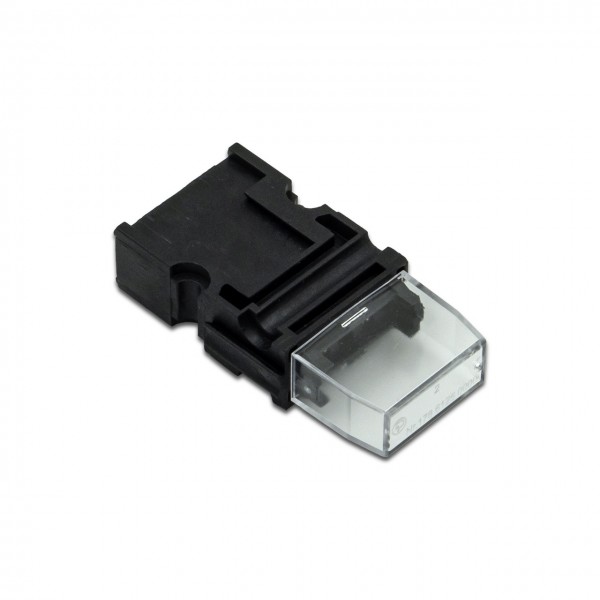

Install an ATO® blade-style fuse with ease using the ATO® FH2 Stackable Block In-Line Fuse Holder. Attachable in the X- and Y-direction, this stackable fuse holder can also be used with additional ATO® FH2 fuse holders to create a fuse block for protecting multiple circuits.

The ATO® FH2 stackable fuse holder features a black, thermoplastic body with a UL 94 V-0 flammability rating for heat and flame resistance. In addition, the automotive in-line fuse holder assembly can be completed with a transparent thermoplastic cover for protection against debris.

Features and Benefits

• Compatible with ATO® blade-style fuses (sold separately)
• 30 A max continuous current rating
• Attachable in the X- and Y-direction for simple stacking or row mounting
• Heat-resistant thermoplastic fuse holder body with a UL 94 V-0 flammability rating
• Leaf spring connector system
• Wire crimp 6.3 mm receptacles
• Transparent thermoplastic cover offers protection and a clear view

Applications

• Accessory Circuit Protection

Access specifications, certifications, check availability and order parts below

Catalog #	Mounting Method	Current Rating (Max)	Input Terminals	Output Terminals	Stock	Samples	Compare
178.4205.0002					Check	Order
178.4215.0002					Check	Order
178.6105.0001					Check	Order
178.6105.0002					Check	Order
178.6105.0004
178.6105.1002					Check	Order
178.6115.0001	In-Line Fuse Holder	30	Wire	Wire	Check	Order
178.6115.0002	In-Line Fuse Holder	30	Wire	Wire	Check	Order
178.6116.1001	In-Line Fuse Holder	30	Wire	Wire	Check	Order
178.6116.1002	In-Line Fuse Holder	30	Wire	Wire	Check	Order
178.6116.1008	In-Line Fuse Holder	30	Wire	Wire	Check	Order
178.6116.2501	In-Line Fuse Holder	30	Wire	Wire	Check	Order
178.6116.2502	In-Line Fuse Holder	30	Wire	Wire	Check	Order
178.6116.2508	In-Line Fuse Holder	30	Wire	Wire	Check	Order
178.6116.4001		58
178.6116.4042					Check	Order
178.6116.6001	In-Line Fuse Holder	30	Wire	Wire	Check	Order
178.6125.0001	In-Line Fuse Holder	30	Wire	Wire	Check	Order
178.6125.0002	In-Line Fuse Holder	30	Wire	Wire	Check	Order
178.7100.0001						Order
