ZCASE® SMZ Series > 휴즈홀더

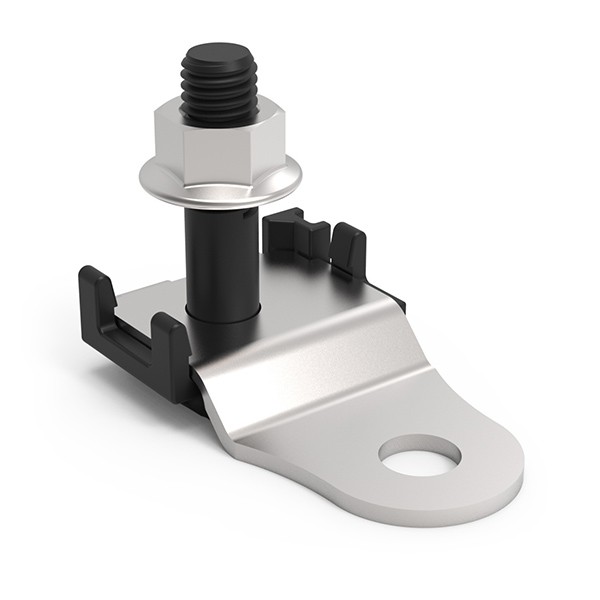

The ZCASE® SMZ Series Bolt-Down Stud-Mount Fuse Holder reduces the need for wiring and parts by allowing ZCASE® high-current fuses to be directly installed on an alternator, battery switch, or electrical relay. Thanks to an insulted M8 or M10 stud on the busbar, the compatible fuse (sold separately) and output cable with a ring terminal (not included) can be assembled using the included standard nut.

The SMZ Series M8 ZCASE® fuse holder is available with an M6, M8, or M10 mounting hole to meet the requirements of various applications, and the M10 ZCASE® fuse holder features an M10 mounting hole. Various configurations, including with a protective cover for the fuse only, with a protective cover for the fuse and mounting stud, and without a cover, are available.

Features and Benefits

• Accepts high-current ZCASE® single bolt-down M8-size or M10-size fuses, depending on the model (fuses sold separately)
• Available mounting hole sizes include M6, M8, and M10
• Up to 3 SMZ Series fuse holders can be stacked to protect multiple circuits
• Space-saving design eliminates the need to wire in a separate fuse holder or power distribution module (PDM)
• Tin-plated copper busbar offers corrosion resistance

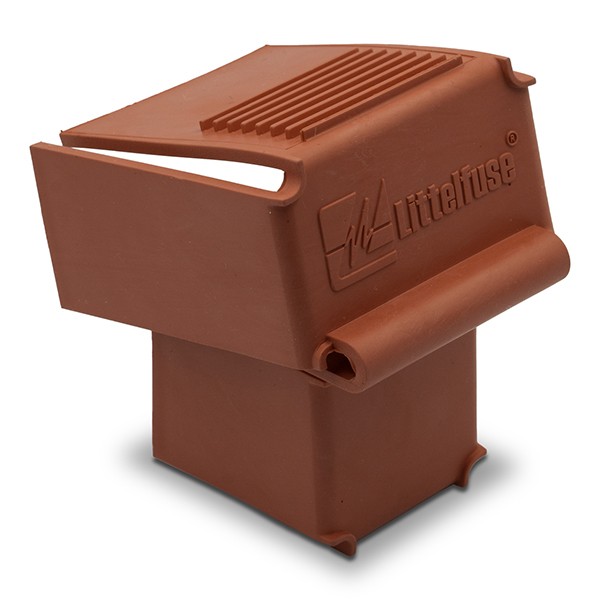

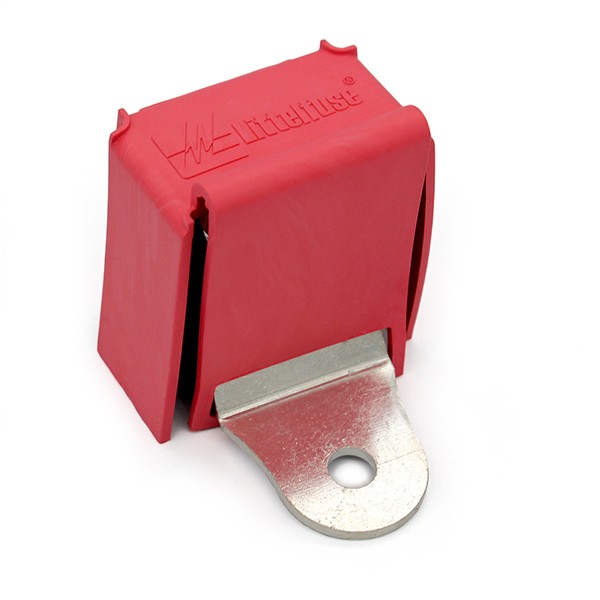

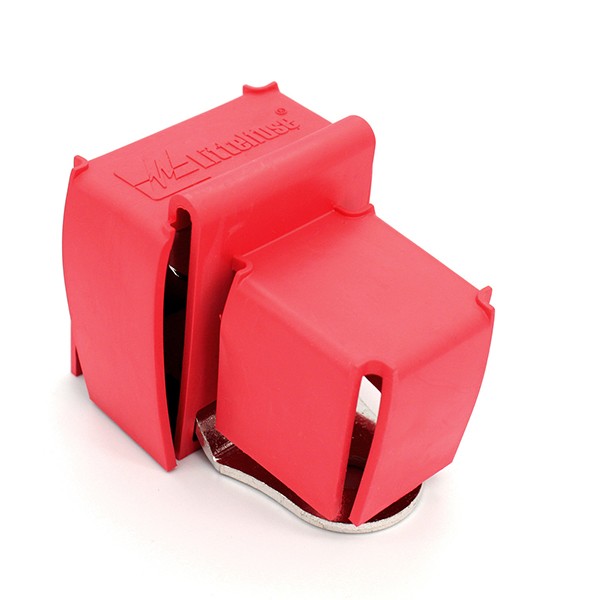

• Red UL 94 V-0 rated cover is offered in 2 styles to provide protection from accidental contact - one option covers the fuse only, while the other option covers the fuse and the mounting stud
• Total continuous current should not exceed 400 A per holder

Applications

• Alternator, Battery Switch, or Electrical Relay Fusing

Access specifications, certifications, check availability and order parts below

Catalog #	Mounting Method	Fuse Type	Current Rating (Max)	Current Rating (Continuous) in Amps	Voltage Rating Max	Temperature Maximum Fahrenheit	Temperature Minimum Fahrenheit	Temperature Maximum Celsius	Temperature Minimum Celsius	Recommended Torque	Agency Approval - Shock	Agency Approval - Vibration	Agency Approval - Humidity	Input Terminals	Output Terminals	Samples	Compare
0FHZ0201Z	Bolt Down	ZCASE	400	300	32	221	-40	105	-40	M8 Fuse Stud: 14Nm				M8x1.25 SERRATED FLANGE NUT		Order
0FHZ0202Z	Bolt Down	ZCASE	400	300	32	221	-40	105	-40	M8 Fuse Stud: 14Nm				M8 Stud Mount Hole	M8 Stud	Order
0FHZ0211Z	Bolt Down	ZCASE	400	300	32	221	-40	105	-40	M8 Fuse Stud: 14Nm				M10 Stud Mount Hole	M10 Stud	Order
0FHZ0212Z	Bolt Down	ZCASE	400	300	32	221	-40	105	-40	M8 Fuse Stud: 14Nm				M10 Stud Mount Hole	M10 Stud	Order
0FHZ0231Z	Bolt Down	ZCASE	400	300	32	221	-40	105	-40	M8 Fuse Stud: 14Nm				M6 Stud Mount Hole	M8 Stud	Order
0FHZ0232Z	Bolt Down	ZCASE	400	300	32	221	-40	105	-40	M8 Fuse Stud: 14Nm				M6 Stud Mount Hole	M8 Stud	Order
0FHZ0233Z	Bolt Down	ZCASE	400	300	32	221	-40	105	-40	M8 Fuse Stud: 14Nm				M6 Stud Mount Hole	M8 Stud	Order
0FHZ0241Z		ZCASE	400	400	80	221	-40	105	-40	12-16 Nm	ISO 16750-3	ISO 16750-3	SAE J1455	M10	M8	Order
901-524																Order
901-525																Order
901-541
