ATO® FKH Series > 휴즈홀더

Get the ATO® in-line or stackable panel-mount blade-style fuse holder you need with the ATO® FKH Series 32V Blade Fuse Holder. Available in-line bodies and stackable panel-mount bodies made of heat-resistant thermoplastic, plus configurations with DFK-2 leaf spring terminals, DFK-2 contact coils, or 90° bent, solderable tin-plated copper alloy contacts make it simple to build the fuse holder required for your application.

Designed for 32V ATO® fuses up to 20 amps or 30 amps depending on the configuration, this fuse holder series is also compatible with FKS fuses at 80V DC.

Features and Benefits

• Accepts ATO® and FKS blade-style fuses up to 20 amps or 30 amps depending on the configuration (fuses sold separately)
• Heat-resistant thermoplastic body with a UL 94 V-0 flammability rating

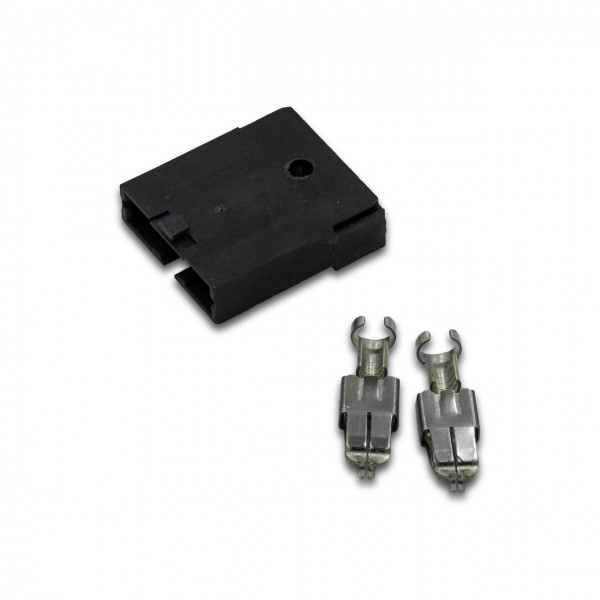

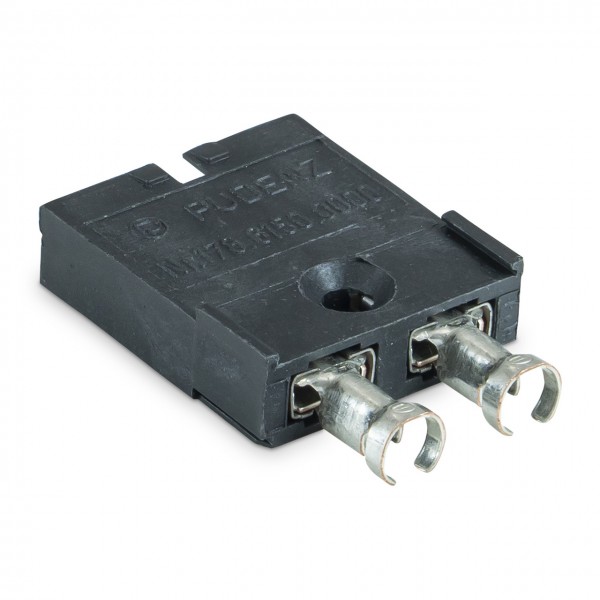

• Configurations are available with different terminals, including DFK-2 leaf spring terminals, DFK-2 contact coils, and 90° bent solderable tin-plated contacts

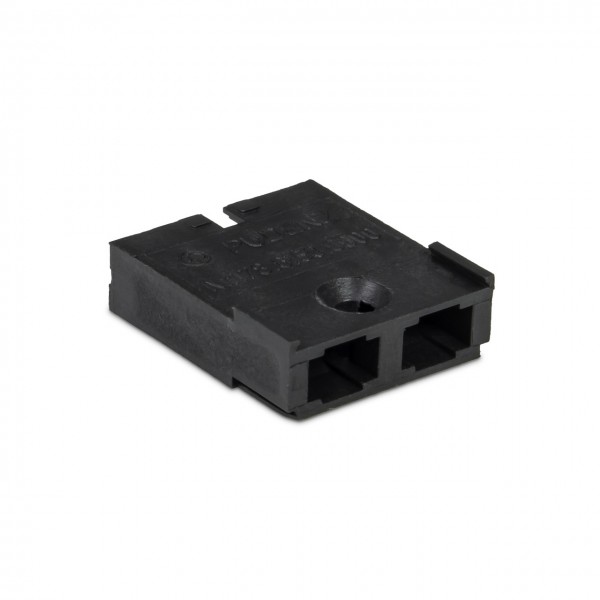

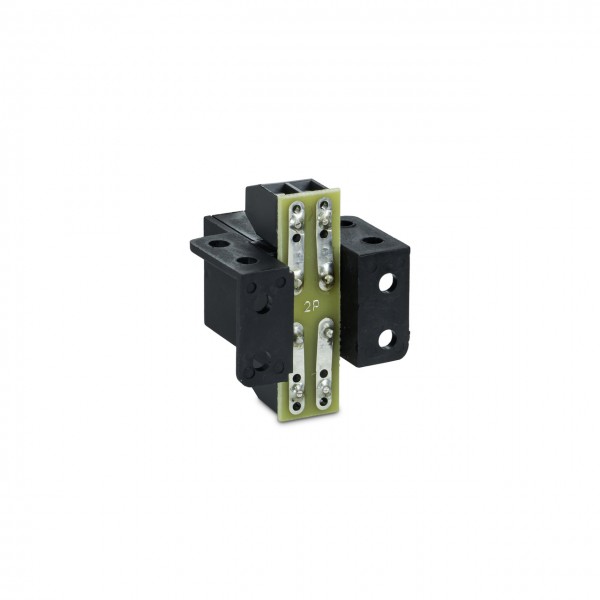

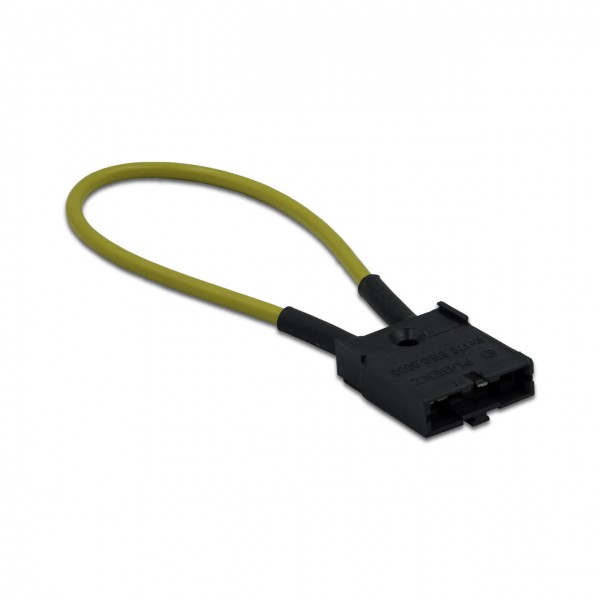

• In-line fuse holder bodies and stackable panel-mount fuse holder bodies are available

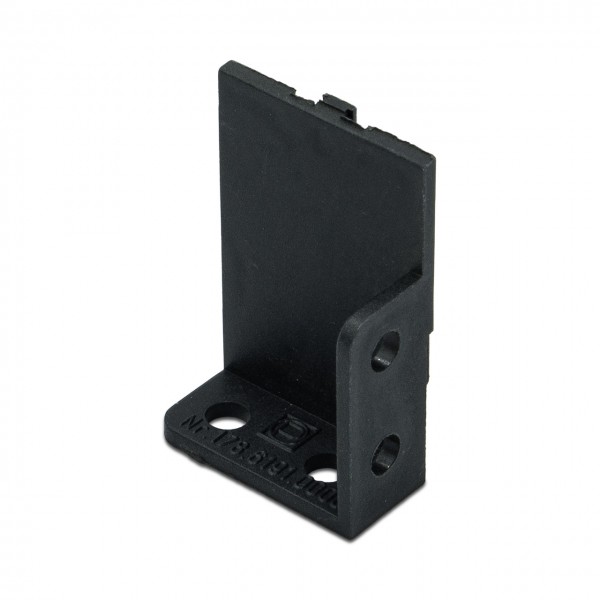

• In-line bodies accommodate left and right attachable snap adapters (sold separately)
• Compatible with the FKS fuse at 80V DC

Applications

• Electronics and PCBA
• Automotive
• Small Circuit Protection

Access specifications, certifications, check availability and order parts below

Catalog #	Mounting Method	Fuse Type	Current Rating (Max)	Stock	Samples	Compare
178.6150.0001	In-Line Fuse Holder	ATO	30	Check	Order
178.6150.0002	In-Line Fuse Holder	ATO	30	Check	Order
178.6152.0001	In-Line Fuse Holder	ATO	30	Check	Order
178.6152.0002	In-Line Fuse Holder	ATO	30	Check	Order
178.6152.0022	In-Line Fuse Holder	ATO	30	Check	Order
178.6152.0032	Tuning-Fork Terminals		80		Order
178.6152.0042				Check	Order
178.6152.1191	Tuning-Fork Terminals		80
178.6152.1501	Tuning-Fork Terminals		80
178.6152.1504
178.6152.2501	In-Line Fuse Holder	ATO	20	Check	Order
178.6191.0001	Snap			Check	Order
178.6191.0002				Check
178.6192.0001	Snap			Check	Order
178.7017.0001	In-Line Fuse Holder	ATO		Check	Order
