MEGA® 298 Bolt-Down Series > 휴즈홀더

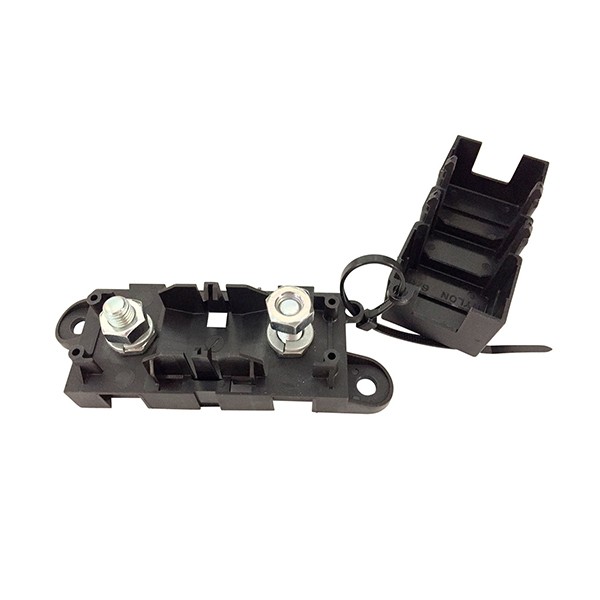

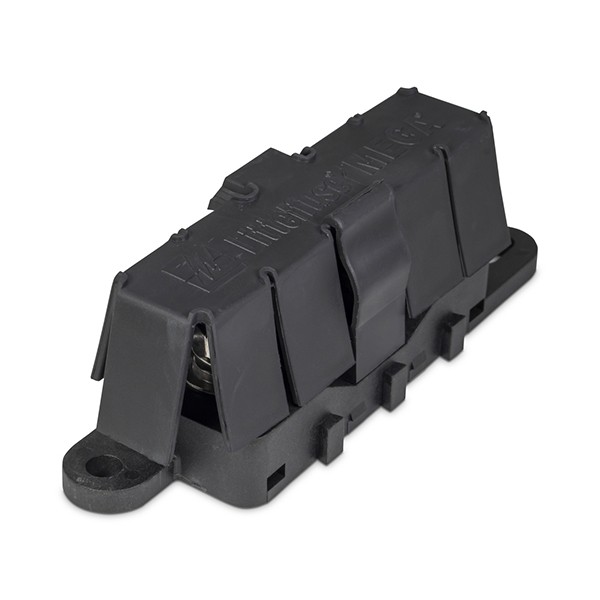

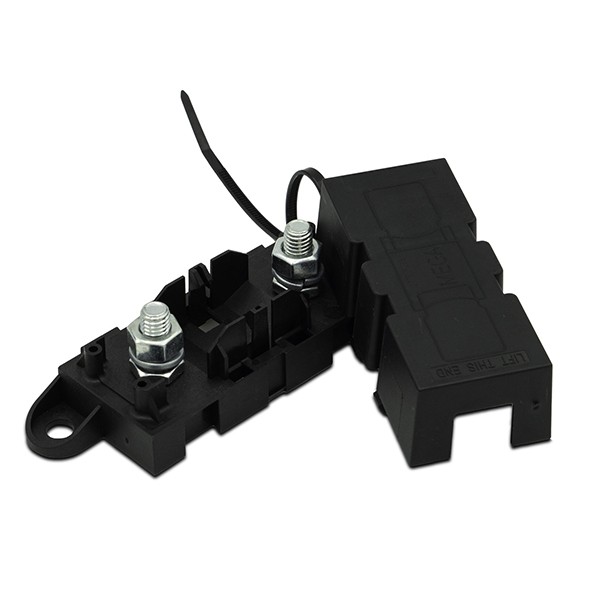

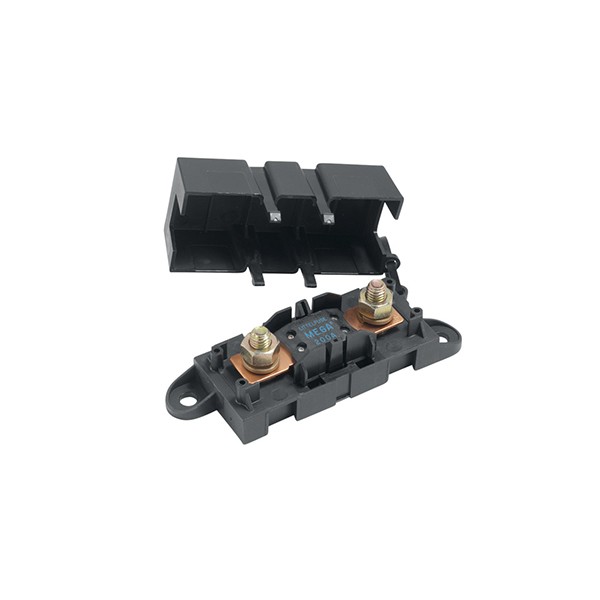

The MEGA® 298 Bolt-Down Series High-Current Fuse Holder works with MEGA® bolt-down fuses. As a high-amp fuse holder, it's ideal for battery and alternator connections as well as providing ultra-high-current protection for other types of heavy gauge cables. Interlocking pins on the sides let you connect additional MEGA® 298 Bolt-Down Series fuse holders for multi-fuse applications.

The MEGA® 298 Bolt-Down Series fuse holder is offered in a wide variety of configurations. Base style options include one with M6 mounting holes and one with extended M6 mounting slots measuring 15mm long. Additionally, there are configurations available with and without fuses. The UL 94 rated cover included with each fuse holder features 6 available locations for openings (actual openings vary by part number).

Features and Benefits

• Compatible with MEGA® bolt-down fuses (sold separately unless indicated)
• Glass-filled thermoplastic body houses M8 or M6 input and output terminals
• Interlocking pins on the sides of the fuse holder let you connect additional MEGA® 298 Bolt-Down Series fuse holders to create a multi-fuse block
• Base styles available with M6 mounting holes or extended M6 x 15mm slots
• Included UL 94 rated protective cover has 6 available locations for openings to accommodate various cable entry needs (actual openings vary by part number)
• Configurations may also include a thermoplastic tether, insulators, ratchet fasteners and/or mounting hardware (see part numbers for details)

Applications

• Battery and Alternator Connections
• High-Current Circuit Protection
• Body Builders
• Medium-Duty Vehicles

Access specifications, certifications, check availability and order parts below

Catalog #	Mounting Method	Fuse Type	Current Rating (Max)	Current Rating (Continuous) in Amps	Voltage Rating Max	Ignition protection	Input Terminals	Output Terminals	Stock	Samples	Compare
02980900S	Bolt Down	MEGA	500	375	70	V-2	M6	M8	Check	Order
02980900TXN	Bolt Down	MEGA	500	375	70	V-2	M6	M8	Check	Order
02980900Z	Bolt Down	MEGA	500	375	70	V-2	M6	M8	Check	Order
02981001ZXSS	Bolt Down	MEGA	500	375	70	V-2	M6	M8	Check	Order
02981001ZXT	Bolt Down	MEGA	500	375	70	V-2	M6	M8	Check	Order
02981002ZXSS	Bolt-Down	MEGA (298)	500		32				Check
02981002ZXT	Bolt-Down	MEGA (298)	500		32				Check
02981003ZXT	Bolt Down	MEGA	500	375	70	V-2	M6	M8	Check	Order
02981004ZXT	Bolt-Down	MEGA (298)	500		32
02981005ZXT	Bolt-Down	MEGA (298)	500		32				Check
02981006ZXT	Bolt-Down	MEGA (298)	500		32
02981007ZXT	Bolt-Down	MEGA (298)	500		32
02981010ZXT	Bolt-Down	MEGA (298)	500		32
02981011ZXT	Bolt-Down	MEGA (298)	500		32
02981012ZXT	Bolt-Down	MEGA (298)	500		32				Check
02981013ZXT	Bolt-Down	MEGA (298)	500		32
02981014ZXT	Bolt-Down	MEGA (298)	500		32				Check
02981015ZXT	Bolt-Down	MEGA (298)	500		32				Check
02981017ZXT	Bolt-Down	MEGA (298)	500		32
02981018ZXT	Bolt-Down	MEGA (298)	500		32
02981019ZXT	Bolt-Down	MEGA (298)	500		32
02981022ZXT	Bolt-Down	MEGA (298)	500		32
02981024ZXT	Bolt-Down	MEGA (298)	500		32				Check
02981025ZXT	Bolt-Down	MEGA (298)	500		32
02981026ZXT	Bolt-Down	MEGA (298)	500		32
02981027ZXT	Bolt-Down	MEGA (298)	500		32				Check
02981030ZXT	Bolt-Down	MEGA (298)	500		32				Check
02981034ZXT	Bolt-Down	MEGA (298)	500		32				Check
02981035ZXT	Bolt-Down	MEGA (298)	500		32				Check
02981036ZXT	Bolt Down	MEGA	500	375			M6	M8	Check	Order
02981039ZXT	Bolt Down	MEGA	500	375	70	V-2	M6	M8	Check	Order
02981040ZXT	Bolt-Down	MEGA (298)	500		32
02982002ZXT	Bolt-Down	MEGA (298)	500		32				Check
02982003ZXT	Bolt-Down	MEGA (298)	500		32
02982004ZXT	Bolt-Down	MEGA (298)	500		32
02982006ZXT	Bolt-Down	MEGA (298)	500		32
02982007ZXT	Bolt-Down	MEGA (298)	500		32
02982008ZXT	Bolt-Down	MEGA (298)	500		32
02982009ZXT	Bolt-Down	MEGA (298)	500		32
02982011ZXT	Bolt-Down	MEGA (298)	500		32				Check
02983000ZXT	Bolt-Down	MEGA (298)	500		32
02983002ZXT	Bolt-Down	MEGA (298)	500		32
02983003ZXT	Bolt-Down	MEGA (298)	500		32
02983004ZXT	Bolt-Down	MEGA (298)	500		32
02983005ZXT	Bolt-Down	MEGA (298)	500		32
02983006ZXT	Bolt-Down	MEGA (298)	500		32				Check
