MEGA® SN Series > 휴즈홀더

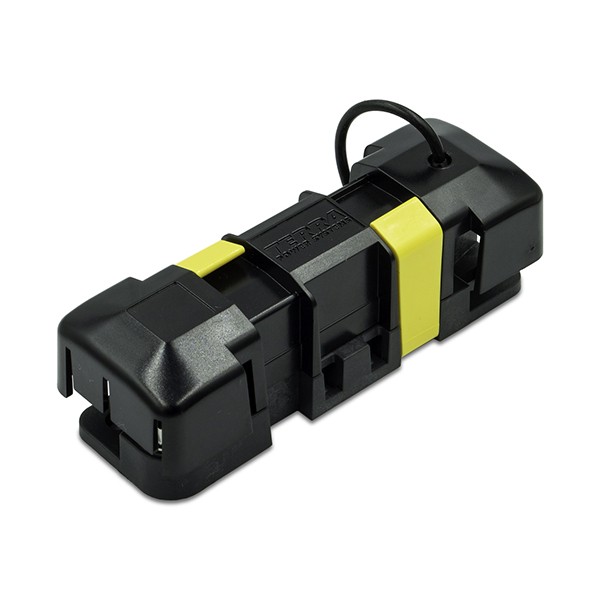

The MEGA® SN Series 70 V Bolt-Down Sealed Water-Resistant Fuse Holder is an ideal solution for high-current, in-line, main or branch circuit protection in harsh or hazardous environments. AssureLatch™ sealed positive latching technology is used to ensure a water-resistant and ignition protected fuse holder design. A waterproof fuse compartment inside the fuse holder assembly protects against fuse corrosion.

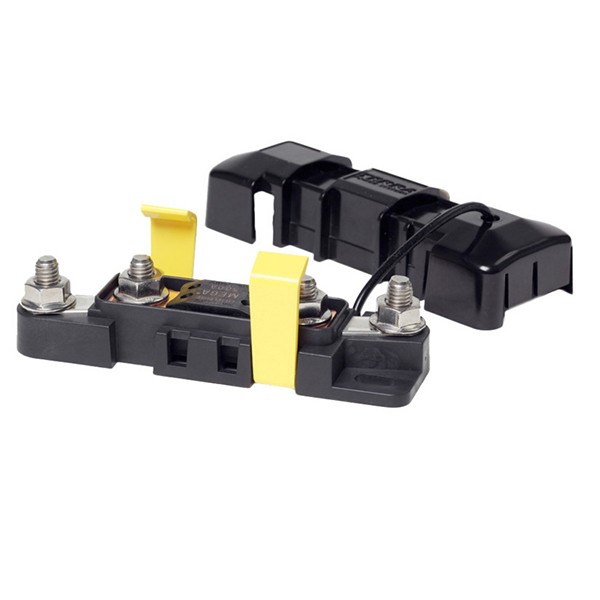

The base features an M6 mounting hole and an M6 mounting slot for secure attachment, and it boasts a footprint that matches similar fuse holders, which makes switching from an unsealed to sealed fuse holder simple. A built-in tether between the fuse holder base and cover keeps the components together during servicing.

The MEGA® SN Series sealed fuse holder is available with and without pre-loaded MEGA® high-current bolt-down fuses.

Features and Benefits

• AssureLatch™ positive latching technology helps ensure a water-resistant and ignition protected fuse holder
• Sealed, waterproof fuse compartment protects against fuse corrosion and allows you to use dielectric spray on cable terminals without compromising the fuse connections
• With an IP66/P69K rating, the fuse holder forms a dust-tight enclosure that protects against water ingress from high-pressure, high-temperature water jets
• Ignition protected to SAE J1171 and ISO 8846 for installation in a battery box or on vehicles carrying hazardous loads
• Stainless steel M8 hardware and tin-plated copper busbars offer long-term corrosion protection
• Shape-shut clips secure the cover in place
• Built-in tether keeps the cover connected to the base during servicing

Applications

• High-Amperage, In-Line, Main or Branch Circuit Protection in Harsh or Hazardous Environments

Access specifications, certifications, check availability and order parts below

Catalog #	Mounting Method	Fuse Type	Current Rating (Max)	Current Rating (Continuous) in Amps	Voltage Rating Max	Ingress Protection	Temperature Maximum Fahrenheit	Temperature Minimum Fahrenheit	Temperature Maximum Celsius	Temperature Minimum Celsius	Recommended Torque	Agency Approval - Shock	Agency Approval - Vibration	Agency Approval - Humidity	Ignition protection	Samples	Compare
880014	Bolt-Down, M6 Mounting hole and M6 Slot X 6MM Long	MEGA	500	375	70	IP66, IP6K9K	257	-50	125	-50	20 Nm (15lb-ft)			0-95% RH	ISO 8846	Order
880014125	Bolt-Down, M6 Mounting hole and M6 Slot X 6MM Long	MEGA	125	93	70	IP66, IP69K	257	-58	125	-50				0-95% RH	ISO 8846	Order
880014150	Bolt-Down, M6 Mounting hole and M6 Slot X 6MM Long	MEGA	175	131	70	IP66, IP6K9K	257	-58	125	-50	20 Nm (15lb-ft)			0-95% RH	ISO 8846	Order
880014150-FCB	Bolt-Down	MEGA	50		32	IP66, IP6K9K			125	-50	20 Nm (15lb-ft)	50 G	8 G	0-95% RH
880014175					70											Order
880014225	Bolt-Down, M6 Mounting hole and M6 Slot X 6MM Long	MEGA	225	168	70	IP66, IP69K	257	-58	125	-50	20 Nm (15lb-ft)			0-95% RH	ISO 8846	Order
880014300	Bolt-Down, M6 Mounting hole and M6 Slot X 6MM Long	MEGA	300	225	70	IP66, IP6K9K	257	-58	125	-50	20 Nm (15lb-ft)			0-95% RH	ISO 8846	Order
880014350	Bolt-Down, M6 Mounting hole and M6 Slot X 6MM Long	MEGA	350	262	70	IP66, IP69K	257	-58	125	-50	20 Nm (15lb-ft)			0-95% RH	ISO 8846	Order
880014400	Bolt-Down, M6 Mounting hole and M6 Slot X 6MM Long	MEGA	400	300	70	IP66, IP69K	257	-58	125	-50	20 Nm (15lb-ft)			0-95% RH	ISO 8846	Order
880014450	Bolt-Down, M6 Mounting hole and M6 Slot X 6MM Long	MEGA	450	337	70	IP66, IP69K	257	-58	125	-50	20 Nm (15lb-ft)			0-95% RH	ISO 8846	Order
880014500																Order
880014A	Bolt-Down, M6 Mounting hole and M6 Slot X 6MM Long	MEGA	500	375	32	IP66, IP69K	257	-58	125	-50	20 Nm (15lb-ft)			0-95% RH	ISO 8846
880015	Bolt-Down	MEGA	50		32	IP66, IP6K9K			125	-50	20 Nm (15lb-ft)	50 G	8 G	0-95% RH
