2484 Series > 배터리스위치/센서

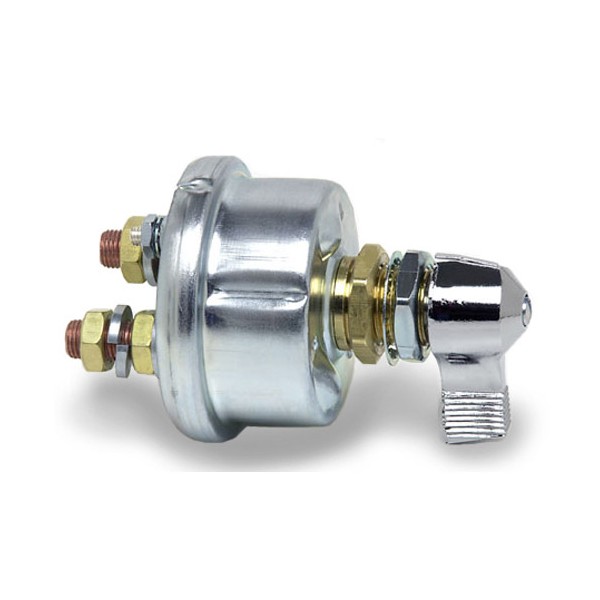

Single-pole master disconnect switches. Will disconnect the battery circuit only.

Available Attributes

(See Specifications tab for exact part number details)

Voltage:6-36 Vdc

Electrical Ratings*:

1000 A Intermittent, 175 A Continuous*

Number of Positions:2

Positions:

Off-On

Circuitry:Single-Pole

Terminals:Two 3/8"-24 Studs

Case:Plated Steel

Contacts:Silver or Copper

Actuator:Lever or Hencol Lock*unless noted differently below

단극 마스터 차단 스위치. 배터리 회로 만 분리합니다.

사용 가능한 속성

(정확한 부품 번호 세부 사항은 사양 탭을 참조하십시오)

전압 : 6-36 Vdc

전기 등급 * :

1000A 간헐적, 175A 연속 *

위치 수 : 2

위치 :

오프

회로 : 단극

터미널 : 2 개의 3/8 "-24 스터드

사례 : 도금 된 강철

접점 :은 또는 구리

액츄에이터 : 레버 또는 Hencol Lock *

Catalog #	Package Type	Description	Details	UL listed	Rating	Terminals	Actuator	Case	Installation	Max voltage rating	Max total continuous current	Inrush rating (2 seconds)	Terminal size	Contacts	Mounting stem	Compare
2484	Bulk	Battery Disconnect Switch 40A 36V SPST	Single Pole - Two Positions: Off-On	UL listed	12 Vdc; 20A continuous 125A intermittent 15 sec. On 5 min. Off (UL rating)	two 3/8 copper studs	Diecast Lever	Plated Steel	3/4in Through hole	6V	40A	250A @6VDC 125A @12VDC	3/8/24	Copper	brass 3/4 - 16 thread 23/32 long fits panel through 3/16 thick
2484-02	Bulk	Battery Disconnect Switch 175A 36V SPST	Single Pole - Two Positions: Off-On		6-36 Vdc; 175A continuous 1000A intermittent 15 sec. On 5 min. Off	two 3/8 copper studs	Hencol Lock	Plated Steel	3/4in Through hole	36V	175A	1000A x 15 sec.	3/8/24	Silver	brass 3/4 - 16 17/32 long fits panel through 1/4 thick
2484-03	Bulk	Battery Disconnect Switch 175A 36V SPST w/o-ring seal in operating shaft	Single Pole - Two Positions: Off-On		6-36 Vdc; 175A continuous 1000A intermittent 15 sec. On 5 min. Off	two 3/8 copper studs	Hencol Lock	Plated Steel	3/4in Through hole	36V	175A	1000A x 15 sec.	3/8/24	Silver	brass 3/4 - 16 17/32 long fits panel through 1/4 thick
2484-06	Bulk	Battery Disconnect Switch 175A 36V SPST; Weather resistant O-ring shaft seal gasket-sealed terminal insulation and sealant in mounting stem and case	Single Pole - Two Positions: Off-On		6-36 Vdc; 175A continuous 1000A intermittent 15 sec. On 5 min. Off	two 3/8 brass studs	Diecast Lever	Plated Steel	3/4in Through hole	36V	175A	1000A x 15 sec.	3/8/24	Silver	brass 3/4 - 16 thread 23/32 long fits panel through 3/16 thick
2484-09	Bulk	Battery Disconnect Switch 175A 36V SPST	Single Pole - Two Positions: Off-On		6-36 Vdc; 175A continuous 1000A intermittent 15 sec. On 5 min. Off	two 3/8 copper studs	Diecast Lever	Plated Steel	3/4in Through hole	36V	175A	1000A x 15 sec.	3/8/24	Copper	brass 3/4 - 16 thread 23/32 long fits panel through 3/16 thick
2484-16	Bulk	Battery Disconnect Switch 175A 36V SPST	Single Pole - Two Positions: Off-On	UL listed	6-36 Vdc; 175A continuous 800A intermittent 15 sec. On 5 min. Off	two 3/8 copper studs	Diecast Lever	Plated Steel	3/4in Through hole	36V	175A	800A x 15 sec.	3/8/24	Silver	brass 3/4 - 16 thread 23/32 long fits panel through 3/16 thick
2484-19	Bulk	Battery Disconnect Switch 1000A 24V SPST	Single Pole - Two Positions: Off-On		6-24 Vdc; 1000A intermittent for 1000 cycles of 30 sec 5 min off	two 3/8 copper studs	Hencol Lock	Plated Steel	3/4in Through hole	24V		1000A	3/8/24	Silver	brass 3/4 - 16 17/32 long fits panel through 1/4 thick
2484-A	Bulk	Battery Disconnect Switch 175A 36V SPST	Single Pole - Two Positions: Off-On		6-36 Vdc; 175A continuous 1000A intermittent 15 sec. On 5 min. Off	two 3/8 brass studs	Diecast Lever	Plated Steel	3/4in Through hole	36V	175A	1000A x 15 sec.	3/8/24	Silver	brass 3/4 - 16 thread 23/32 long fits panel through 3/16 thick
