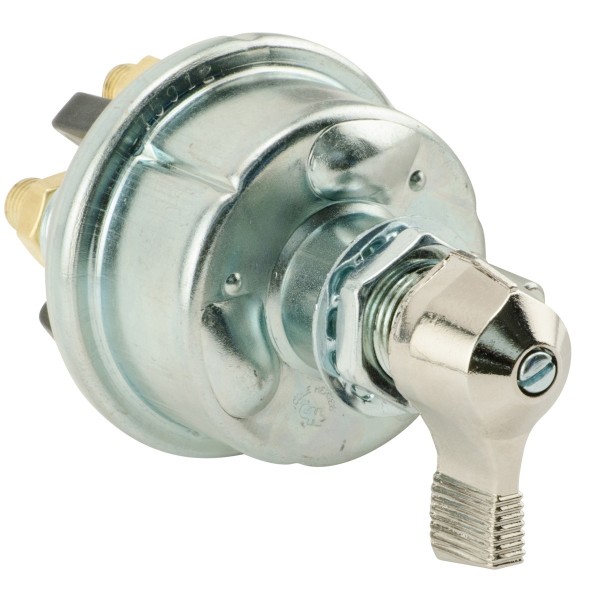

The 75900 Double Pole Series 36 V High-Amp DPST Master Battery Disconnect Switches are
designed to handle two loads. This allows you to control two systems, such as the battery and
the alternator or generator field circuit, or to disconnect the positive and negative of the same
circuit. Depending on the model, these master battery disconnect switches may be capable of
handling two high-current loads or may be designed with one high-current circuit and one
auxiliary circuit for applications like secondary reporting of the switch's status.
All 75900 Double Pole series master disconnect switches feature a heavy-duty, plated-steel
housing, which makes them ideal for use in commercial vehicles. Plus, thanks to O-ring,
epoxy, and gasket seals on various models, it is easy to find a disconnect switch that stands
up to the conditions of your specific application.
Features and Benefits
- Double-pole disconnect switches handle two loads
- Models are available with various terminals and current ratings
- 3/4"-16 mounting stem
- Heavy-duty, plated-steel housing
- Models are available with lever or key actuators or with a shaft only
- Compatible with 24505 series lockout lever kits and 80625 series faceplates
Applications
- Alternator or Generator Systems
| Catalog # | Package Type | Description | Details | Rating | Terminals | Actuator | Case | Installation | Max voltage rating | Max total continuous current | Inrush rating (2 seconds) | Terminal size | Temperature range | Contacts | Mounting stem | Compare |
|---|
 |  | | | | | | | | | | | | | | | |
| 75903 | Bulk | Battery Disconnect Switch 125A 36V DPST | Double Pole - Two Positions: Off-On | 6-36 Vdc; Large studs 125A continuous - 1000A intermittent 15 sec. On 5 min. Off; Small studs 20A continuous | two 3/8 copper studs
two 10-32 studs | Chrome Lever | Plated Steel | 3/4in Through hole | 36V | 125A | 1000A x 15 sec. | | -40°C to +85°C | Copper | brass 3/4 - 16 thread 23/32 long fits panel through 3/16 thick | |
| 75904 | Bulk | Battery Disconnect Switch 175A 36V DPST | Double Pole - Two Positions: Off-On | 6-36 Vdc; Large studs 175A continuous - 1000A intermittent 15 sec. On 5 min. Off; Small studs 20A continuous | two 3/8 copper studs
two 10-32 studs | Chrome Lever | Plated Steel | 3/4in Through hole | 36V | 175A | 1000A x 15 sec. | 3/8/24 | | Silver | brass 3/4 - 16 thread 23/32 long fits panel through 3/16 thick | |
| 75904-01 | Bulk | Battery Disconnect Switch 125A 36V DPST Weather Resistant | Double Pole - Two Positions: Off-On | 6-36 Vdc; Large studs 125A continuous - 1000A intermittent 15 sec. On 5 min. Off; Small studs 20A continuous | two 3/8 copper studs
two 10-32 studs | Chrome Lever | Plated Steel
Indexing and alignment pin | 3/4in Through hole | 36V | 125A | 1000A x 15 sec. | | -40°C to +85°C | Silver Plated Copper | brass 3/4 - 16 thread 17/32 long fits panel through 1/4 thick | |
| 75904-02 | Bulk | Battery Disconnect Switch 175A 36V DPST | Double Pole - Two Positions: Off-On | 6-36 Vdc; Large studs 175A continuous - 1000A intermittent 15 sec. On 5 min. Off; Small studs 20A continuous | two 3/8 copper studs
two 10-32 studs | Hencol Lock | Plated Steel | 3/4in Through hole | 36V | 175A | 1000A x 15 sec. | 3/8/24 | | Silver | brass 3/4 - 16 thread 17/32 long fits panel through 1/4 thick | |
| 75907 | Bulk | Battery Disconnect Switch 300A 36V DPST | Double Pole Off-On - Disconnects battery and field circuits | 6-36 Vdc; Large studs-2000A intermittent 30 sec. On 3 min. Off; 300A continuous. Small studs-20A continuous | two 1/2-20 copper studs
two 10-32 studs | Lever | Plated Steel | 3/4in Through hole | 36V | 300A | 2000A x 30 sec. | | -40°C to +85°C | Copper | 3/4 - 16 thread fits panel through 1/4 thick | |
| 75912 | Bulk | Battery Disconnect Switch 125A 36V DPST | Double Pole - Two Positions: Off-On | 6-36 Vdc; Large studs 125A continuous - 1000A intermittent 15 sec. On 5 min. Off; Small studs 20A continuous | four 3/8-24 studs | Lever | Plated Steel | 3/4in Through hole | 36V | 125A | 750A x 15 sec. | | -40°C to +85°C | Silver Plated Copper | brass 3/4 - 16 thread 17/32 long fits panel through 1/4 thick
|
