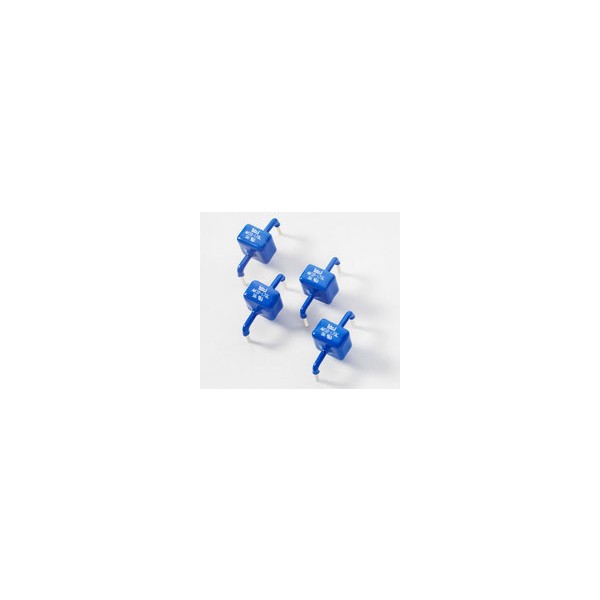

AK10 Series > TVS Diodes

The AK10 series of high current transient suppressors have been specially designed for use in A.C. line protection and any demanding applications (AC or DC). They offer superior clamping characteristics over standard S.A.D. technologies by virtue of the Littelfuse Foldbak™ technology, which provides a clamping voltage lower than the avalanche voltage (but above the rated working voltage). Therefore, any voltage rise due to increased current conduction is contained to a minimum, providing the best possible protection level. They can also be connected in series and/or parallel to create very high capacity protection solutions.

Features:

•  Very low clamping voltage
•  Ultra compact: less than one-tenth the size of traditional discrete solutions
•  Sharp breakdown voltage
•  Low slope resistance
•  Bi-directional
•  Foldbak™ technology for superior clamping factor
•  Halogen-free
•  RoHS compliant
•  Glass passivated junction

Catalog #	VR (Vso)	MIN VBR@IT (V)	MAX VBR@IT (V)	Vc (V)	IT (mA)	Ir@Vso (μA)	Max Temp (deg C)	IPP 8x20μs (A)	Stock	Samples	Compare
AK10-015C	15	16	19	28	10	10	125	10000	Check	Order
AK10-030C	30	32	37	58	10	10	125	10000	Check	Order
AK10-058C	58	64	70	110	10	10	125	10000	Check	Order
AK10-066C	66	72	80	120	10	10	125	10000	Check	Order
AK10-076C	76	85	95	140	10	10	125	10000	Check	Order
AK10-170C	170	180	220	260	10	10	125	10000	Check	Order
AK10-190C	190	200	245	290	10	10	125	10000	Check	Order
AK10-220C	220	230	270	330	10	20	125	10000	Check	Order
AK10-240C	240	250	285	340	10	10	125	10000	Check	Order
AK10-380C	380	401	443	520	10	10	125	10000	Check	Order
AK10-430C	430	440	490	625	10	10	125	10000	Check	Order
AK10-530C	530	560	619	750	10	10	125	10000	Check	Order
