AK15 > TVS Diodes

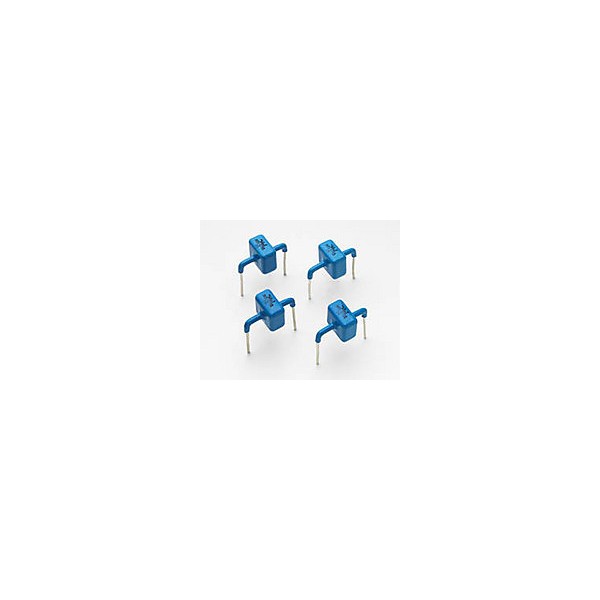

The AK15 series of high current transient suppressors have been specially designed for use in A.C. line protection and any demanding applications (AC or DC).They offer superior clamping characteristics over standard S.A.D. technologies by virtue of the Littelfuse Foldbak™ technology, which provides a clamping voltage lower than the avalanche voltage (but above the rated working voltage). Therefore, any voltage rise due to increased current conduction is contained to a minimum, providing the best possible protection level. They can also be connected in series and/or parallel to create very high capacity protection solutions.





Features:

• Halogen-Free
• RoHS compliant
• 15kA (8x20 µs pulse) surge capability
• Foldbak™ technology for superior clamping factor
• Glass passivated junction
• Bi-directional
• Ultra compact: Less than one-tenth the size of traditional discrete solutions
• Very low clamping voltage
• Sharp breakdown voltage
• Low slope resistance

Catalog #	VR (Vso)	MIN VBR@IT (V)	MAX VBR@IT (V)	Vc (V)	IT (mA)	Ir@Vso (μA)	Max Temp (deg C)	IPP 8x20μs (A)	Stock	Samples	Compare
AK15-058C	58	64	70	110	10	10	125	15000	Check	Order
AK15-066C	66	72	80	120	10	10	125	15000	Check	Order
AK15-076C	76	85	95	150	10	10	125	15000	Check	Order
