AQ1006 Series > TVS Diodes

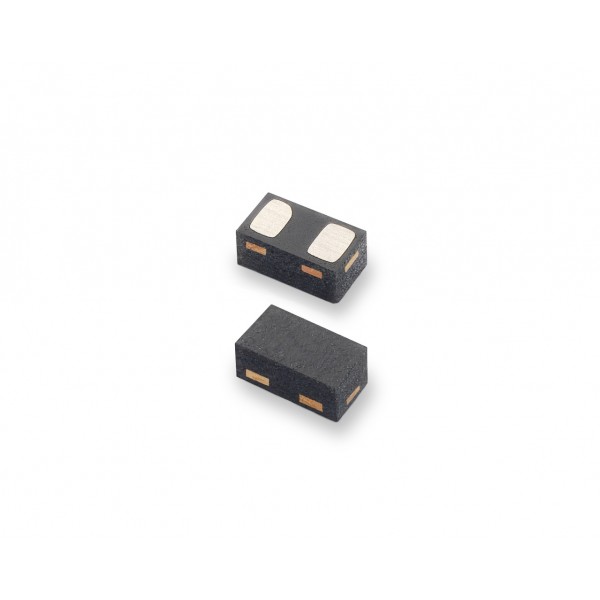

This AQ1006 TVS protects each I/O pin from destructive electrostatic discharges (ESD). This robust TVS can safely absorb repetitive ESD strikes at ±30kV (contact discharge, IEC 61000-4-2) without performance degradation.

Additionally, each TVS can safely dissipate 8/20μs 5A surge current (IEC 61000-4-5 2nd edition) with very low clamping voltages.

Features & Benefits:

• ESD, IEC 61000-4-2, ±30kV contact, ±30kV air
• EFT, IEC 61000-4-4, 40A (5/50ns)
• Lightning, IEC 61000-4-5 2^nd edition, 5A (8/20μs)
• Low leakage current of 0.5μA (MAX) at 5V
• ESD, ISO 10605, 330pF 330Ω, ±25kV contact, ±30kV air
• Space efficient 0201 footprint
• AEC-Q101 qualified
• Halogen free, lead free and RoHS compliant
• Moisture Sensitivity Level(MSL -1)
• PPAP Capable

Applications:

• Mobile phones
• Smart phones
• PDAs
• Digital cameras
• Portable navigation components
• Portable medical components
• Automotive applications

Catalog # Standoff Voltage (V) ILeak (μA) ESD Contact (kV) ESD Air (kV) Lightning Immunity (8x20μs) (A) Clamp Voltage CI/OTYP (pF) Size Channels Mounting Stock Samples AQ1006-01UTG 5.0 0.100 ±30 ±30 5.0 8.3V@1A/9.2V@2A 25@0V/15@2.5V μDFN-2 (0201) 1 Surface Mount Check Order
