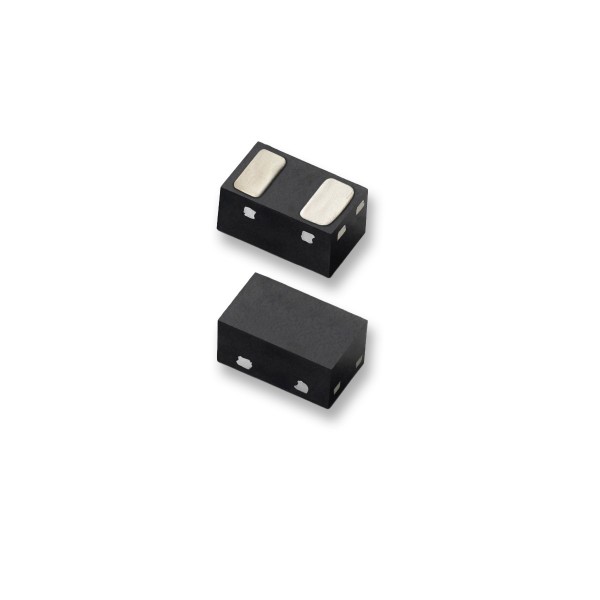

AQ1005 Series > TVS Diodes

The AQ1005 TVS includes back-to-back breakdown diodes fabricated in a proprietary silicon avalanche technology to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). These robust diodes can safely absorb repetitive ESD strikes above the maximum level specified in IEC 61000-4-2 international standard (Level 4, ±8 kV contact discharge and ±15 kV air discharge) without performance degradation. The back-to-back configuration provides symmetrical ESD protection for data lines.

Features & Benefits:

• ESD, IEC 61000-4-2, ±30kV contact, ±30kV air
• ESD, ISO 10605, 330pF 330Ω, ±30kV contact, ±30kV air
• EFT, IEC 61000-4-4, 40A (5/50ns)
• Lightning, 8A (8/20 as defined in IEC 61000-4-5 2nd edition)
• Low capacitance of 30pF (@VR=0V)
• Low leakage current of 0.1μA at 5V
• SOD882 footprint compatible to 0402 footprint
• AEC-Q101 qualified
• Halogen free, Lead free and RoHS compliant
• PPAP capable

Applications:

• Mobile Phones
• Smart Phones
• Camcorders
• Portable Medical
• Digital Cameras
• MP3/PMP
• Portable Navigation Components
• Tablets
• Point of Sale Terminals
• Automotive Applications

Catalog #	Standoff Voltage (V)	ILeak (μA)	ESD Contact (kV)	ESD Air (kV)	Lightning Immunity (8x20μs) (A)	Clamp Voltage	CI/OTYP (pF)	Size	Channels	Mounting	Stock	Samples
AQ1005-01ETG	6.0	0.1	±30	±30	8.0	9.3V@1A/10V@2A/15.6V@10A	30pF@0.0V/23pF@2.5V	SOD882	1	Surface Mount	Check	Order
