AQ3130 Series > TVS Diodes

The AQ3130 includes back-to-back TVS diodes fabricated in a proprietary silicon avalanche technology to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). These robust diodes can safely absorb repetitive ESD strikes up to the maximum level specified in the IEC61000-4-2 international standard without performance degradation. The back-to-back configuration provides symmetrical ESD protection for data lines when AC signals are present.

Features & Benefits:

• ESD protection of ±10kV contact discharge, ±15kV air discharge, (IEC61000-4-2)
• EFT protection, IEC61000-4-4, 40A (tp=5/50ns)
• Lightning, 2A (8/20 as defined in IEC 61000-4-5 2nd edition)
• PPAP capable
• Low capacitance of 0.3pF@ VR=0V
• Low leakage current of 50nA (max) at 28V

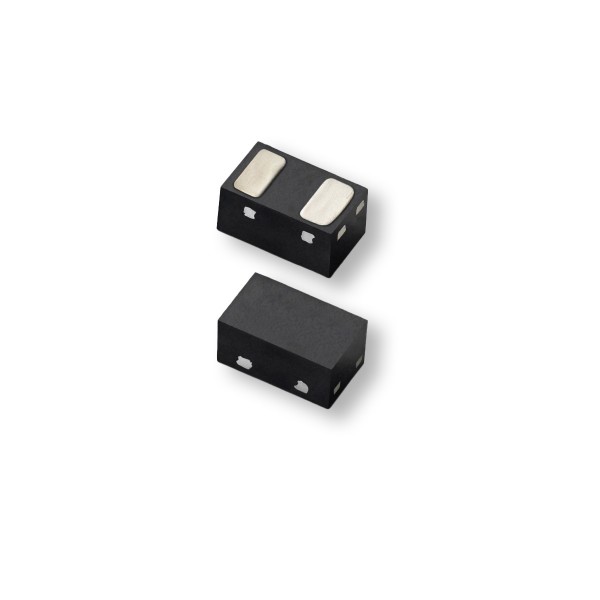

• Space efficient 0402 footprint
• Moisture Sensitivity Level(MSL -1)
• AEC-Q101 qualified
• Halogen free, Lead free and RoHS compliant

Applications:

• Tablets
• Ultrabook
• eReader
• Smart Phones
• Digital Cameras
• MP3/ PMP
• Set Top Boxes
• Portable Medical
• NFC and FeliCa
• Automotive applications

Catalog # Standoff Voltage (V) ILeak (μA) ESD Contact (kV) ESD Air (kV) Lightning Immunity (8x20μs) (A) Clamp Voltage CI/OTYP (pF) Size Channels Mounting Stock Samples AQ3130-01ETG 28.0 0.001 ±10 ±15 2.0 39.0V@1A/42.0V@2A 0.3 SOD882 1 Surface Mount Check Order
