SESD Series Ultra Low Capacitance Diode Arrays > TVS Diodes

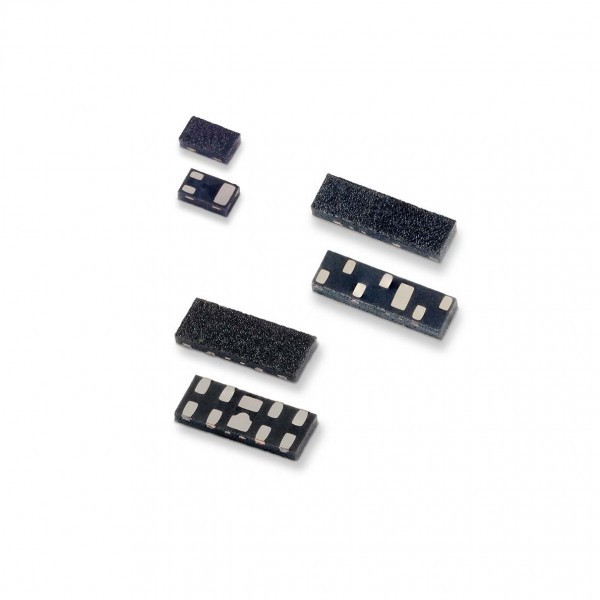

The SESD series Ultra Low Capacitance Diode Arrays provides signal integrity-preserving unidirectional ESD protection for the world’s most challenging high speed serial interfaces. Compelling packaging options including the standard 1004 DFN 2.5 mm x 1.0 mm layout, and the board space-friendly 1103 DFN minimize trace layout complexity, and save significant PCB space. The 0402 DFN provides the most flexibility for PCB layout purposes. This series is rated in excess of 20kV contact ESD protection (IEC 61000-4-2) while maintaining extremely low leakage and dynamic resistance, and is offered in the industry’s most progressive and popular footprints. The SESD series sets higher standards for signal integrity and usability

Features & Benefits:

• 0.20pF TYP capacitance
• ESD, IEC 61000-4-2, ±20kV contact, ±20kV air
• Low clamping voltage of 9.2V @ IPP=2.0A (tP=8/20μs)
• Low profile DFN array packages
• Facilitates excellent signal integrity
• AEC-Q101 qualified
• Moisture Sensitivity Level(MSL-1)
• ELV Compliant
• RoHS Compliant and Lead Free
• PPAP capable

Applications:

• USB 3.1, 3.0, 2.0
• HDMI 2.0, 1.4a, 1.3
• DisplayPort(TM)
• V-by-One®)
• Thunderbolt
• LVDS interfaces
• Consumer, mobile and portable electronics
• Tablet PC and external storage with high speed interfaces
• Applications requiring high ESD performance in small packages
• Automotive applications

Catalog # AEC-Q101 Qualified Order Number: Standoff Voltage (V) ILeak (μA) ESD Contact (kV) ESD Air (kV) Lightning Immunity (8x20μs) (A) Clamp Voltage CI/OTYP (pF) Size Stock Samples Compare SESD0402Q2UG-0020-090 YES RF2946-000 7.0 0.050 ±20 ±20 2.0 10.0V@2.2A 0.2 0402 DFN Array Check Order SESD0802Q4UG-0020-090 YES RF3076-000 7.0 0.050 ±20 ±20 2.0 10.0V@2.2A 0.2 0802 DFN Array Check Order SESD1004Q4UG-0020-090 YES RF3077-000 7.0 0.050 ±20 ±20 2.0 10.0V@2.2A 0.2 1004 DFN Array Check Order SESD1103Q6UG-0020-090 YES RF3078-000 7.0 0.050 ±20 ±20 2.0 10.0V@2.2A 0.2 1103 DFN Array Check Order
