Enhanced ESD Diode Arrays Series > TVS Diodes

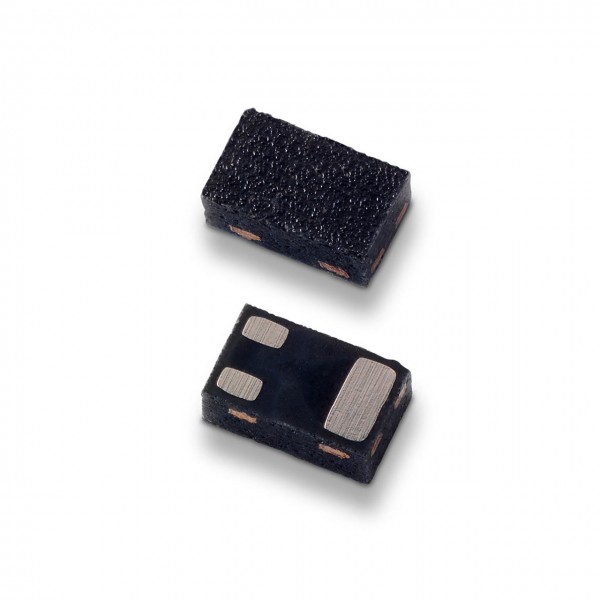

The Enhanced ESD Diode Arrays Series provides higher order ESD protection in signal-integrity-preserving unidirectional arrays for the world’s most challenging high speed serial interfaces. The SOD-883 standard packages minimizes trace layout complexity, saves significant PCB space, and improves reusability of the footprints. The nominal capacitance makes the devices applicable to the worlds’ fastest consumer serial interfaces.

Features & Benefits:

• 0.30pF TYP capacitance
• ESD, IEC61000-4-2, ±22kV contact, ±22kV air
• Low clamping voltage of 13V @ IPP=2.2A (tP=8/20μs)
• Low profile 0402 DFN array packages
• Facilitates excellent signal integrity
• ELV Compliant
• Halogen free, Lead free and RoHS compliant
• AEC-Q101 Qualified

Applications:

• Ultra-high speed data lines
• USB 3.1, 3.0, 2.0
• HDMI 2.0, 1.4a, 1.3
• DisplayPort™
• V-by-One®
• Thunderbolt (Light Peak)
• Consumer, mobile and portable electronics
• Tablet PC and external storage with high speed interfaces
• Applications requiring high ESD performance in small packages

Catalog # Standoff Voltage (V) ILeak (μA) ESD Contact (kV) ESD Air (kV) Lightning Immunity (8x20μs) (A) Clamp Voltage CI/OTYP (pF) Size Channels Mounting Stock Samples SP0402U-ELC-02ETG 5.0 0.025 ±22 ±22 2.2 13V@2.2A 0.3 0402 DFN array 2 Surface Mount Check Order
