L25S Series > 산업용퓨즈

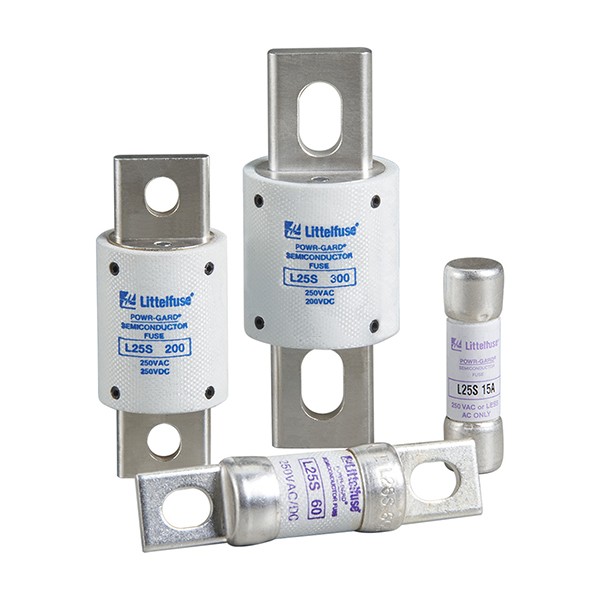

The L25S series is a traditional North American bolted-style, high-speed fuse designed with POWR-SPEED® technology for protection of power semiconductor devices that are rated up to 250 V ac and up to 200 V dc. This is a round body, extremely current-limiting fuse for use where no time delay is required.

POWR-SPEED® brand fuses offer optimized circuit protection at the extremely fast speed required to protect power semiconductor devices such as silicon controlled rectifiers (SCRs), diodes, thyristors, triacs, transistors, and similar solid-state devices. These devices are used in power equipment including variable speed drives, power rectifiers, UPS systems, dc power supplies, and in a wide range of electronic equipment.

Features

• Extremely current-limiting
• Low energy let-through (I2t)
• Low watt losses
• Controlled transient overvoltages
• POWR-SPEED® technology
• Compliance with US and Canadian requirements
• Traditional North American bolted style dimensions
• Direct bus-bar mount or stud mount design
• RoHS compliant
• Class aR performance
•


•





















  Catalog #	Amps (A)	VAC (V)	VDC (V)	Interrupting Rating	Opening	Stock	Samples	Compare
  L25S001	1	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S002	2	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S003	3	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S004	4	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S005	5	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S006	6	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S008	8	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S010	10	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S012	12	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S015	15	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S020	20	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S025	25	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S030	30	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S035	35	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S040	40	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S045	45	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S050	50	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S060	60	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S070	70	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S080	80	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S090	90	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S100	100	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S125	125	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S150	150	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S175	175	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S200	200	250	250	20000A@250VDC	Very Fast-Acting (FF)	Check	Order
  L25S200V	200	250			Very Fast-Acting (FF)	Check	Order
  L25S225	225	250	200	20000A@200VDC	Very Fast-Acting (FF)	Check	Order
  L25S250	250	250	200	20000A@200VDC	Very Fast-Acting (FF)	Check	Order
  L25S275	275	250	200	20000A@200VDC	Very Fast-Acting (FF)	Check	Order
  L25S300	300	250	200	20000A@200VDC	Very Fast-Acting (FF)	Check	Order
  L25S350	350	250	200	20000A@200VDC	Very Fast-Acting (FF)	Check	Order
  L25S400	400	250	200	20000A@200VDC	Very Fast-Acting (FF)	Check	Order
  L25S450	450	250	200	20000A@200VDC	Very Fast-Acting (FF)	Check	Order
  L25S500	500	250	200	20000A@200VDC	Very Fast-Acting (FF)	Check	Order
  L25S500KTA	500	250			Very Fast-Acting (FF)	Check
  L25S600	600	250	200	20000A@200VDC	Very Fast-Acting (FF)	Check	Order
  L25S700	700	250	200	20000A@200VDC	Very Fast-Acting (FF)	Check	Order
  L25S800	800	250	200	20000A@200VDC	Very Fast-Acting (FF)	Check	Order
  L25S800KTA	800	250			Very Fast-Acting (FF)	Check
