The LTKAK6 series offer superior clamping characteristics over standard SAD technologies by virtue of the Littelfuse Foldbak™ technology, which provides a clamping voltage lower than the avalanche voltage (but above the rated working voltage). Therefore, any voltage rise due to increased current conduction is contained to a minimum, providing the best possible protection level. They can also be connected in series and/or parallel to create various capability and flexible protection solutions.

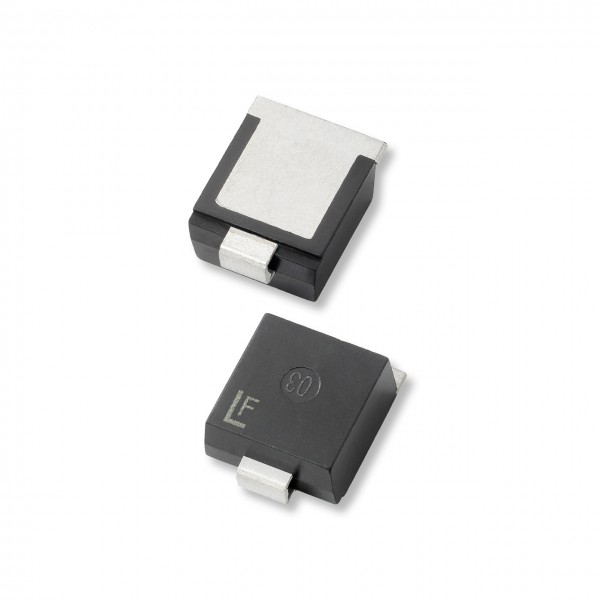

LTKAK6 in SMTO-218 package provide the enhanced quality, easy manufacturing and compact mechanical design than current AK TVS families.
Features:
- Innovative package (patent pending) design
- LTKAK6 and LTKAK10 series being design in SMT package is ideal for automatic pick and place assembly and reflow processes
- Excellent surge protection
- 6kA (LTKAK6) and 10kA (LTKAK10) surge capability (8x20µs waveform)
- Hi Power TVS design in compact SMT package
- Low clamping and slope resistance
- Foldbak™ technology for superior clamping factor
- Supports very low clamping voltage Sharp breakdown voltage
- Certified, environmentally friendly and suitable for worldwide usageRoHS compliant
- Halogen free
- UL Recognized
- 2nd level interconnect is Pb-free (IPC/JEDEC J-STD-609A.01)
Applications:
- Cell phone base station
- Industrial TVSS
- Railway (railroad) trackside signaling and control cabinets
- Defense & Avionic
- Power grid & distribution system
