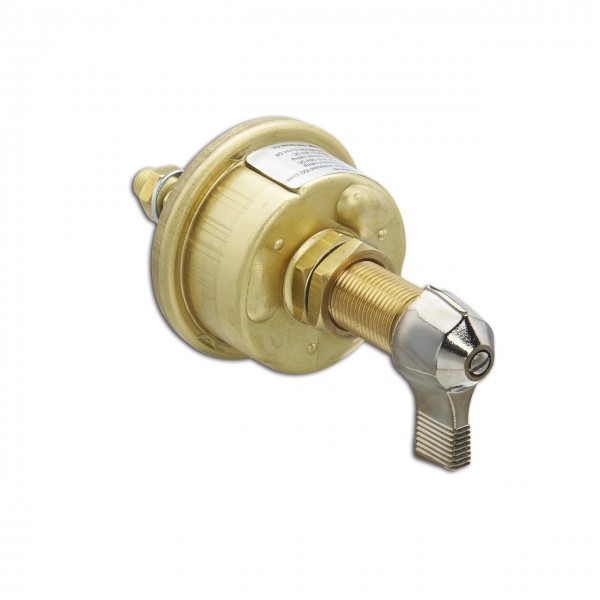

The M-284 Series 36 V 175 A Marine Battery Disconnect Switch is a marine-grade, brass-body
master battery disconnect switch for boat and commercial vehicle applications that features
single-pole, single-throw (SPST) circuitry.
Disconnecting a boat or vehicle battery from the electrical system with a master battery
disconnect switch prevents potential thermal events and ensures the system is shut down during
maintenance or an emergency. In addition, using a manual battery disconnect switch during
periods of inactivity, such as when a boat or vehicle is stored, prevents parasitic loads from
draining the battery.
This Cole Hersee brand disconnect switch is available in a variety of configurations,
including UL Listed models and sealed models.
Features and Benefits
- Marine-grade, brass housing enables use in boating and commercial
- marine and vehicle applications
- 175 A continuous current rating
- Rated for 1000 A intermittent current at 15 seconds on, 5 minutes off or 800
- A intermittent current at 15 seconds on, 5 minutes off, depending on the model
- Select models of the marine battery kill switch feature an O-ring seal
- at the mounting stem and a gasket seal at the terminal insulator
- Copper studs or silver-laminated brass studs, which offer
- high conductivity and low contact resistance
- Available as a UL Listed model
Applications
- Commercial Marine
- Boats
- Emergency Vehicles
- Heavy-Duty Trucks
- Buses & Transit
| Catalog # | Package Type | Description | Details | UL listed | Rating | Terminals | Actuator | Case | Installation | Max voltage rating | Max total continuous current | Inrush rating (2 seconds) | Terminal size | Contacts | Mounting stem | Compare |
|---|
 |  | | | | | | | | | | | | | | | |
| M-284 | Bulk | Battery Disconnect Switch 175A 36V SPST Marine Grade | Single Pole - Two Positions: Off-On | | 6-36 Vdc; 175A continuous 1000A intermittent 15 sec. On 5 min. Off | two 3/8 copper studs | Chrome Lever | Brass | 3/4in Through hole | 36V | 175A | 1000A x 15 sec. | 3/8/24 | Copper | brass 3/4 - 24 thread 1-13/32 long fits panel through 15/16 thick | |
| M-284-01 | Bulk | Battery Disconnect Switch 175A 36V SPST Marine Grade | Single Pole - Two Positions: Off-On | UL listed | 6-36 Vdc; 175A continuous 800A intermittent 15 sec. On 5 min. Off | two 3/8 brass studs | Chrome Lever | Brass | 3/4in Through hole | 36V | 175A | 800A x 15 sec. | 3/8/24 | Silver | brass 3/4 - 24 thread 1-13/32 long fits panel through 15/16 thick | |
| M-284-02 | Bulk | Battery Disconnect Switch 175A 36V SPST Marine Grade; O-ring seal in operating shaft gasket-sealed terminal insulator | Single Pole - Two Positions: Off-On | | 6-36 Vdc; 175A continuous 1000A intermittent 15 sec. On 5 min. Off | two 3/8 copper studs | Chrome Lever | Brass | 3/4in Through hole | 36V | 175A | 1000A x 15 sec. | 3/8/24 | Silver | brass 3/4 - 24 thread 1-13/32 long fits panel through 15/16 thick | |
| M-284-09-BP | Bulk | Battery Disconnect Switch 175A 36V SPST Marine Grade w/Faceplate | Single Pole - Two Positions: Off-On | | 6-36 Vdc; 175A continuous 1000A intermittent 15 sec. On 5 min. Off | two 3/8 copper studs | Chrome Lever | Brass | 3/4in Through hole | 36V | 175A | 1000A x 15 sec. | 3/8/24 | Silver | brass 3/4 - 24 thread 1-13/32 long fits panel through 15/16 thick | |
| M-284-A | Bulk | Battery Disconnect Switch 175A 36V SPST Marine Grade | Single Pole - Two Positions: Off-On | | 6-36 Vdc; 175A continuous 1000A intermittent 15 sec. On 5 min. Off | two 3/8 copper studs | Chrome Lever | Brass | 3/4in Through hole | 36V | 175A | 1000A x 15 sec. | 3/8/24 | Silver | brass 3/4 - 24 thread 1-13/32 long fits panel through 15/16 thick
|
