M-290 Series > 배터리스위치/센서

Ideal for boats, commercial marine vehicles, buses, heavy trucks, and emergency vehicles,

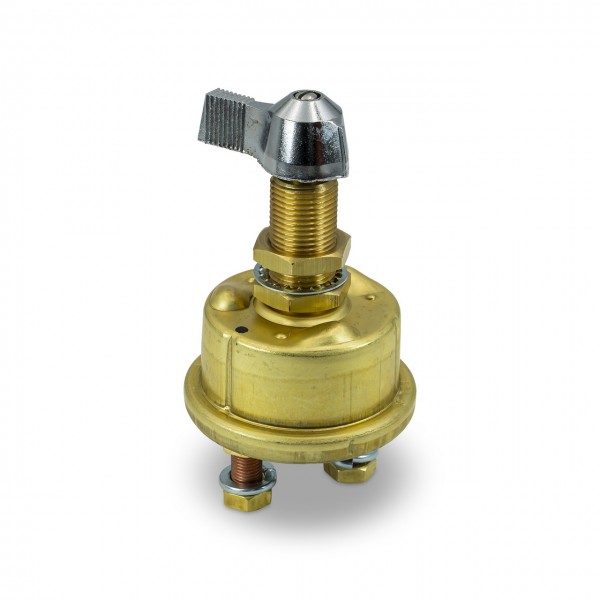

 the M-290 Series 36V DPST Marine-Grade Manual Master Battery Disconnect Switch

 features a compact design with a marine-grade, brass case and lever actuator.

The marine battery disconnect switch has double-pole, single-throw (DPST), normally open

 (NO) circuitry, which reliably disconnects a battery from a vehicle electrical system.

UL listed models, as well as O-ring sealed versions of the marine battery switch,

are available to meet the requirements of different applications.

Features and Benefits

• Available with 175A or 125A continuous current rating for the large studs
•  and 20A continuous current rating for the small studs
•

• Marine-grade, brass case and lever actuator make it simple to use the battery
• cutoff switch in boats, emergency vehicles, and heavy-duty trucks
•

•

• Double-pole, single-throw (DPST), normally open (NO) circuitry
•  for disconnecting a battery from a vehicle electrical system
•

• Compact design and through-hole mounting enable easy installation
•

• UL listed models are available
•

• Select models feature an O-ring seal in the bushing
•

• Silver-plated contact options for high conductivity and low contact resistance

Applications

• Commercial Marine
• Boats
• Emergency Vehicles
• Heavy-Duty Trucks
• Buses/Transit

		4   Catalog # Package Type Description Details Terminals Actuator Case Installation Contacts Mounting stem Sample Capable Compare M-290 M-290-BX Marine Grade Double Pole - Two Positions: Off-On two 3/8 copper studs two 10-32 studs Chrome Lever Brass 3/4in Through hole Silver brass 3/4 - 24 thread 1-13/32 long fits panel through 15/16 thick No M-290-01 M-290-01-BX Marine Grade Double Pole - Two Positions: Off-On two 3/8 copper studs two 10-32 studs Chrome Lever Brass 3/4in Through hole Silver brass 3/4 - 24 thread 1-13/32 long fits panel through 15/16 thick No M-290-05 M-290-05-BX Marine Grade Double Pole - Two Positions: Off-On two 3/8 copper studs two 10-32 studs Chrome Lever Brass 3/4in Through hole Silver brass 3/4 - 24 thread 1-13/32 long fits panel through 15/16 thick No
