M-750 Series > 배터리스위치/센서

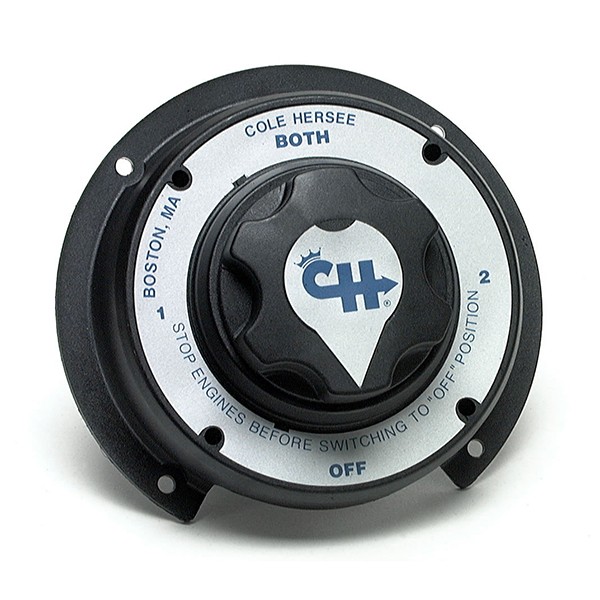

The M-750 Series 36V 310A Dual-Battery Selector & Master Disconnect Switch is ideal for boats, emergency vehicles, buses, heavy trucks, and RVs that use one battery for starting the engine and another battery to power auxiliary loads.

This automotive and marine battery selector switch has single-pole, triple-throw (SP3T) circuitry, which gives you four options: batteries OFF, battery 1 ON, battery 2 ON, or both batteries ON simultaneously.

The battery cutoff position ensures reliable battery disconnection to protect against electrical fire, tampering or theft, and battery drain, while the selector switch positions allow for maximum starting power and backup starting power during emergencies.

Features and Benefits

• 500A intermittent current at 12V dc for up to 5 minutes and 310A maximum
• continuous current
•

• Single-pole, triple-throw (SP3T) switch allows you to use one of two batteries or both batteries at the same time, which enables maximum starting power
•

• Functions either with alternators or generators
•

• 3/8"-24 copper studs are solidly machined to the contact plates
•

• High-performance rubber O-ring keeps water, dust, and contaminants out
•

• Rugged polyester thermoplastic case and large, easy-to-grip knob stand up to impacts
•

• Designed with a flange for flush mounting or through-panel mounting
•

• Make before break design permits operation through the ON positions
• with the engine running
•

• Available with or without a pilot light circuit
•

• UL and CE certified

Applications

• Boats
•

• Emergency Vehicles
•

• Heavy Trucks
•

• Buses
•

• RVs
•

Catalog # Package Type Description UL listed Rating Terminals Actuator Case Size Installation Overall height Max voltage rating Max total continuous current Inrush rating (2 seconds) Terminal size Contacts Compare M-750 Bulk Battery Disconnect Switch 310A 36V SPST Marine UL Listed 6-36V DC; 310A Continuous 500A intermittent three 3/8 copper studs Plastic Knob Engineering thermoplastic 6 flange diameter Surface Mount Through-Hole 3-5/16 2-5/8 36V 310A 500A 3/8/24 Copper M_754 Bulk Battery Disconnect Switch 310A 36V SPST w/pilot light Marine UL Listed 6-36V DC; 310A Continuous 500A intermittent three 3/8 copper studs Plastic Knob Engineering thermoplastic 6 flange diameter Surface Mount Through-Hole 3-5/16 2-5/8 36V 310A 500A Copper M_751 Obsolete: 2018 -01-11 With lock Marine UL Listed 6-36V DC; 310A Continuous 500A intermittent three 3/8 copper studs Plastic Knob Engineering thermoplastic 6 flange diameter Surface Mount Through-Hole 3-5/16 2-5/8 36V 310A M_752 Obsolete: 2018 -01-11 With alternator field disconnect Marine UL Listed 6-36V DC; 310A Continuous 500A intermittent three 3/8 copper studs Plastic Knob Engineering thermoplastic 6 flange diameter Surface Mount Through-Hole 3-5/16 2-5/8 36V 310A M_753 Obsolete: 2014 -12-20 With lock and alternator field disconnect Marine UL Listed 6-36V DC; 310A Continuous 500A intermittent three 3/8 copper studs Plastic Knob Engineering thermoplastic 6 flange diameter Surface Mount Through-Hole 3-5/16 2-5/8 36V 310A M_754-01 Obsolete: 2015 -01-14 With pilot and pilot circuit Marine UL Listed 6-36V DC; 310A Continuous 500A intermittent three 3/8 copper studs Plastic Knob Engineering thermoplastic 6 flange diameter Surface Mount Through-Hole 3-5/16 2-5/8 36V 310A
