P6KE > TVS Diodes

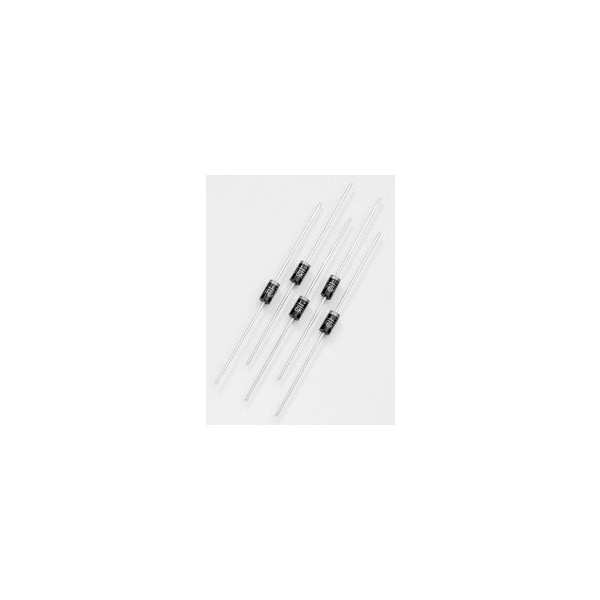

600W Axial Leaded Transient Voltage Suppression (TVS) Diode

VR (Vso): 8.1, 81, 85.5, 8.55, 8.92, 89.2, 94, 9.4, 9.72, 97.2

Watts (W): 600

IPP 10x1000μs (A): 40, 4.2, 4.5, 42.1, 37, 3.8, 4, 39.1, 35, 3.5

P6KE 시리즈는 번개 및 기타 일시적인 전압 이벤트로 인한 과도 전압으로부터

민감한 전자 장비를 보호하도록 특별히 설계되었습니다.

Features 풍모:

Halogen-Free and RoHS compliant 할로겐 프리 및 RoHS 준수

Typical maximum temperature coefficient ΔV BR = 0.1% × V BR @25°C

일반적인 최대 온도 계수 ΔV BR = 0.1 % Ã-V BR @ 25 ° C

Glass passivated junction 유리 부동 태화 접합부

600W peak pulse capability at 10×1000μs waveform, repetition rate (duty cycles):0.01%

10μA ~ 1000μs 파형에서 600W 피크 펄스 성능, 반복률 (듀티 사이클) : 0.01 %

Fast response time: typically less than 1.0ps from 0 Volts to BV min

빠른 응답 시간 : 일반적으로 0 볼트에서 BV 분까지 1.0ps 미만

Excellent clamping capability 탁월한 클램핑 기능

Low incremental surge resistance 낮은 증분 서지 저항

Typical IR less than 1μA above 13V 13V 이상에서 1μA 미만의 일반적인 IR

High temperature soldering guaranteed: 265°C./10 seconds/ 0.375†,(9.5mm) lead length, 51bs., (2.3kg) tension

고온 납땜 보장 : 265 ℃ / 10 초 / 0.375A (9.5mm) 리드 길이, 51bs., (2.3kg) 인장

Plastic package has Underwriters Laboratory Flammability classification 94V-O

플라스틱 패키지에는 Underwriters Laboratory 가연성 분류 94V-O가 있습니다.

Catalog #	VR (Vso)	Watts (W)	IPP 10x1000μs (A)	MIN VBR@IT (V)	MAX VBR@IT (V)	Vc (V)	IT (mA)	Ir@Vso (μA)	Max Temp (deg C)	Stock	Samples	Compare
P6KE10	8.1	600	40	9.000	11.000	15.225	1	10	150	Check	Order
P6KE100	81	600	4.2	90.000	110.000	143.85	1	1	150	Check	Order
P6KE100A	85.5	600	4.5	95.000	105.000	137	1	1	150	Check	Order
P6KE100C	81	600	4.2	90.000	110.000	143.85	1	1	150	Check	Order
P6KE100CA	85.5	600	4.5	95.000	105.000	137	1	1	150	Check	Order
P6KE10A	8.55	600	42.1	9.500	10.500	14.5	1	10	150	Check	Order
P6KE10C	8.1	600	40	9.000	11.000	15.225	1	10	150	Check	Order
P6KE10CA	8.55	600	42.1	9.500	10.500	14.5	1	10	150	Check	Order
P6KE11	8.92	600	37	9.945	12.155	16.38	1	5	150	Check	Order
P6KE110	89.2	600	3.8	99.450	121.550	159.6	1	1	150	Check	Order
P6KE110A	94	600	4	105.000	116.000	152	1	1	150	Check	Order
P6KE110C	89.2	600	3.8	99.450	121.550	159.6	1	1	150	Check	Order
P6KE110CA	94	600	4	105.000	116.000	152	1	1	150	Check	Order
P6KE11A	9.4	600	39.1	10.500	11.600	15.6	1	5	150	Check	Order
P6KE11C	8.92	600	37	9.945	12.155	16.38	1	5	150	Check	Order
P6KE11CA	9.4	600	39.1	10.500	11.600	15.6	1	5	150	Check	Order
P6KE12	9.72	600	35	10.800	13.200	17.535	1	5	150	Check	Order
P6KE120	97.2	600	3.5	108.000	132.000	173.25	1	1	150	Check	Order
P6KE120A	102	600	3.7	114.000	126.000	165	1	1	150	Check	Order
P6KE120C	97.2	600	3.5	108.000	132.000	173.25	1	1	150	Check	Order
P6KE120CA	102	600	3.7	114.000	126.000	165	1	1	150	Check	Order
P6KE12A	10.2	600	36.5	11.400	12.600	16.7	1	5	150	Check	Order
P6KE12C	9.72	600	35	10.800	13.200	17.535	1	5	150	Check	Order
P6KE12CA	10.2	600	36.5	11.400	12.600	16.7	1	5	150	Check	Order
P6KE13	10.5	600	32	11.745	14.355	19.11	1	1	150	Check	Order
P6KE130	105	600	3.2	117.450	143.550	187.95	1	1	150	Check	Order
P6KE130A	111	600	3.4	124.000	137.000	179	1	1	150	Check	Order
P6KE130C	105	600	3.2	117.450	143.550	187.95	1	1	150	Check	Order
P6KE130CA	111	600	3.4	124.000	137.000	179	1	1	150	Check	Order
P6KE13A	11.1	600	33.5	12.400	13.700	18.2	1	1	150	Check	Order
P6KE13C	10.5	600	32	11.745	14.355	19.11	1	1	150	Check	Order
P6KE13CA	11.1	600	33.5	12.400	13.700	18.2	1	1	150	Check	Order
P6KE15	12.1	600	27	13.545	16.555	22.26	1	1	150	Check	Order
P6KE150	121	600	2.8	135.450	165.550	217.35	1	1	150	Check	Order
P6KE150A	128	600	2.9	143.000	158.000	207	1	1	150	Check	Order
P6KE150C	121	600	2.8	135.450	165.550	217.35	1	1	150	Check	Order
P6KE150CA	128	600	2.9	143.000	158.000	207	1	1	150	Check	Order
P6KE15A	12.8	600	28.8	14.300	15.800	21.2	1	1	150	Check	Order
P6KE15C	12.1	600	27	13.545	16.555	22.26	1	1	150	Check	Order
P6KE15CA	12.8	600	28.8	14.300	15.800	21.2	1	1	150	Check	Order
P6KE16	12.9	600	26	14.400	17.600	23.625	1	1	150	Check	Order
P6KE160	130	600	2.6	144.000	176.000	229.95	1	1	150	Check	Order
P6KE160A	136	600	2.8	152.000	168.000	219	1	1	150	Check	Order
P6KE160C	130	600	2.6	144.000	176.000	229.95	1	1	150	Check	Order
P6KE160CA	136	600	2.8	152.000	168.000	219	1	1	150	Check	Order
P6KE16A	13.6	600	27.1	15.200	16.800	22.5	1	1	150	Check	Order
P6KE16C	12.9	600	26	14.400	17.600	23.625	1	1	150	Check	Order
P6KE16CA	13.6	600	27.1	15.200	16.800	22.5	1	1	150	Check	Order
P6KE170	138	600	2.5	153.450	187.550	245.7	1	1	150	Check	Order
P6KE170A	145	600	2.6	162.000	179.000	234	1	1	150	Check	Order
P6KE170C	138	600	2.5	153.450	187.550	245.7	1	1	150	Check	Order
P6KE170CA	145	600	2.6	162.000	179.000	234	1	1	150	Check	Order
P6KE18	14.5	600	23	16.200	19.800	26.46	1	1	150	Check	Order
P6KE180	146	600	2.3	162.000	198.000	258.3	1	1	150	Check	Order
P6KE180A	154	600	2.5	171.000	189.000	246	1	1	150	Check	Order
P6KE180C	146	600	2.3	162.000	198.000	258.3	1	1	150	Check	Order
P6KE180CA	154	600	2.5	171.000	189.000	246	1	1	150	Check	Order
P6KE18A	15.3	600	24.2	17.100	18.900	25.2	1	1	150	Check	Order
P6KE18C	14.5	600	23	16.200	19.800	26.46	1	1	150	Check	Order
P6KE18CA	15.3	600	24.2	17.100	18.900	25.2	1	1	150	Check	Order
P6KE20	16.2	600	21	18.000	22.000	29.085	1	1	150	Check	Order
P6KE200	162	600	2.1	180.000	220.000	287.7	1	1	150	Check	Order
P6KE200A	171	600	2.2	190.000	210.000	274	1	1	150	Check	Order
P6KE200C	162	600	2.1	180.000	220.000	287.7	1	1	150	Check	Order
P6KE200CA	171	600	2.2	190.000	210.000	274	1	1	150	Check	Order
P6KE20A	17.1	600	22	19.000	21.000	27.7	1	1	150	Check	Order
P6KE20C	16.2	600	21	18.000	22.000	29.085	1	1	150	Check	Order
P6KE20CA	17.1	600	22	19.000	21.000	27.7	1	1	150	Check	Order
P6KE22	17.8	600	19	19.800	24.200	32.13	1	1	150	Check	Order
P6KE220	175	600	1.8	198.000	242.000	344.4	1	1	150	Check	Order
P6KE220A	185	600	1.9	209.000	231.000	328	1	1	150	Check	Order
P6KE220C	175	600	1.8	198.000	242.000	344.4	1	1	150	Check	Order
P6KE220CA	185	600	1.9	209.000	231.000	328	1	1	150	Check	Order
P6KE22A	18.8	600	19.9	20.900	23.100	30.6	1	1	150	Check	Order
P6KE22C	17.8	600	19	19.800	24.200	32.13	1	1	150	Check	Order
P6KE22CA	18.8	600	19.9	20.900	23.100	30.6	1	1	150	Check	Order
P6KE24	19.4	600	17	21.600	26.400	34.86	1	1	150	Check	Order
P6KE24A	20.5	600	18.4	22.800	25.200	33.2	1	1	150	Check	Order
P6KE24C	19.4	600	17	21.600	26.400	34.86	1	1	150	Check	Order
P6KE24CA	20.5	600	18.4	22.800	25.200	33.2	1	1	150	Check	Order
P6KE250	202	600	1.7	225.000	275.000	361.2	1	1	150	Check	Order
P6KE250A	214	600	1.8	237.000	263.000	344	1	1	150	Check	Order
P6KE250C	202	600	1.7	225.000	275.000	361.2	1	1	150	Check	Order
P6KE250CA	214	600	1.8	237.000	263.000	344	1	1	150	Check	Order
P6KE27	21.8	600	15	24.345	29.755	39.375	1	1	150	Check	Order
